Effect of oxidative stress and calcium deregulation on FAM26F (CALHM6) expression during hepatitis B virus infection
BMC Infectious Diseases volume 21, Article number: 228 (2021)
Family with sequence similarity 26, member F (FAM26F) is an important innate immunity modulator playing a significant role in diverse immune responses, however, the association of FAM26F expression with HBV infection is not yet known. Thus, the current study aims to explore the differential expression of FAM26F in vitro in HepAD38 and HepG2 cell lines upon HBV infection, and in vivo in HBV infected individuals. The effects of antioxidant and calcium inhibitors on the regulation of FAM26F expression were also evaluated. The expression of FAM26F was simultaneously determined with well-established HBV infection markers: IRF3, and IFN-β.
The expression of FAM26F and marker genes was analyzed through Real-time qPCR and western blot.
Our results indicate that the differential expression of FAM26F followed the same trend as that of IRF3 and IFN-β. The in vitro study revealed that, in both HBV infected cell lines, FAM26F expression was significantly down-regulated as compared to uninfected control cells. Treatment of cells with N-acetyl-L-cysteine (NAC), EGTA-AM, BAPTA-AM, and Ru360 significantly upregulated the expression of FAM26F in both the cell lines. Moreover, in in vivo study, FAM26F expression was significantly downregulated in all HBV infected groups as compared to controls (p = 0.0007). The expression was higher in the HBV recovered cases, probably due to the decrease in infection and increase in the immunity of these individuals.
Our study is the first to show the association of FAM26F with HBV infection. It is proposed that FAM26F expression could be an early predictive marker for HBV infection, and thus is worthy of further investigation.
Hepatitis B virus (HBV) infection is a major health burden worldwide. Globally, there are approximately 257 million people living with HBV infection . HBV infection is characterized by alteration of mitochondrial dynamics, which causes damage to the organelle by depolarizing its membrane, producing reactive oxygen species (ROS), and disturbing calcium homeostasis [2, 3]. Mitochondrial damage and oxidative stress are the main events leading to chronic liver disease [4,5,6], progressing from hepatitis, to fibrosis, cirrhosis, and finally to hepatocellular carcinoma (HCC) . Globally, HCC is the sixth prevalent cancer and considered the second leading cause of cancer deaths [8, 9].
Family with sequence similarity 26, member F (FAM26F) was initially identified about a decade ago. Since then it has been reported to be a significant player in various regulative functions of the immune system. Various whole transcriptome analyses have demonstrated FAM26F to be differentially expressed in several viral (Simian Immunodeficiency Virus and Hepatitis C Virus (HCV)) [10, 11], bacterial (Septicemic melioidosis, Staphylococcal Superantigens, and Staphylococcal Enterotoxin B), [12,13,14], and parasitic infections like Gastrointestinal Nematode infection , in liver transplantation, and in several cancers (breast, mammary gland, cervix, and uterus) . With respect to viral infections, FAM26F has only been studied in SIV  and HCV . In SIV-infected Rhesus macaques, pre-infection levels of FAM26F were found to correlate with the overall viral load during the acute phase of infection, recognizing FAM26F as one of the earliest prognostic markers which can give information related to the pace and strength of antiviral immune response . In HCV patients, FAM26F was identified as one out of 91 differentially expressed genes associated with HCV clearance .
Due to the versatile nature of a Ca2+ signal, one of the mechanisms for viruses to create a permissive cellular environment is the modulation of intracellular Ca2+ signaling, which is in turn associated with ROS regulation. HBV expression has been shown to be linked with numerous physiological variations, including up-regulation of ROS levels, and disturbance in calcium homeostasis . Interestingly, FAM26F possesses a conserved Calcium homeostasis modulator (Ca_hom-mod) domain, hence also named as Calcium homeostasis modulator protein 6 (CALHM6) . Recently, FAM26F was found to be functionally related to calcium-binding proteins, and it was proposed that the FAM26F expression is regulated by cytosolic calcium disturbances . Moreover, FAM26F was identified as one of the top classifiers among 371 differentially expressed genes that were functionally linked with oxidative stress and inflammation . FAM26F was also significantly up-regulated along with several chemokines, MHC class I, and MHC class II molecules, in the placental transcriptome of Villitis of unknown etiology (VUE), where its expression increased as a function of the severity of the inflammatory process . All these studies suggest that targeting the ROS and Ca2+ pathways can greatly assist us in understanding the unknown association between FAM26F and HBV.
Several inhibitors and chelators of ROS and calcium respectively have been reported in various studies. For example, it has been reported that antioxidant N-acetyl-L-cysteine (NAC) counteracts the oxygen free radical effects [23, 24]. Likewise, calcium signals can be blocked by using calcium chelators and calcium inhibitors. Intracellular [Ca2+] chelation is obtained by using BAPTA-AM (1,2-Bis (2-aminophenoxy) ethane-N,N,N′,N′-tetraacetic acid tetrakisacetoxymethyl ester) or EGTA-AM (Ethylene-bis (oxyethylenenitrilo) tetraacetic acid Glycol ether diamine tetraacetic acid-acetoxymethyl ester), whereas mitochondrial calcium uptake can be inhibited by using oxygen bridged dinuclear ruthenium amine complex (Ru360). A reversal in ROS production and Ca2+ deregulation by using antioxidant and calcium modulators can have a positive effect on HBV clearance or containment, most likely by modulating the expression of FAM26F.
Here, we propose the FAM26F expression to be associated with HBV as it can be hypothesized that the inflammation induced by HBV has some implications on the production of FAM26F. Moreover, FAM26F is also considered as an important regulator and activator of the innate immune response involved in important immune signaling cascades. Thus, the current research investigated the changes that occurred in the FAM26F expression in vitro and in vivo upon HBV infection. Additionally, the study probed the effects of ROS and calcium inhibitors on the regulation of FAM26F expression. As the role of IRF3 and IFN-β is significant in mediating antiviral response, and they have also been found to regulate and enhance the FAM26F expression [25, 26]; therefore, IRF3 and IFN-β were also investigated simultaneously with FAM26F, as standards, for the regulation of their expression. The current study will thus be a step forward in highlighting the unseen association of FAM26F with HBV.
Cells lines and plasmids
The HepG2 human hepatoma cells were procured from the American Type Culture Collection (ATCC) and were retained in high-glucose Dulbecco’s Modified Eagle’s Medium (DMEM) (Gibco, CA, USA), supplemented with 10% fetal bovine serum (FBS) (Hyclone, CA, USA), 1% penicillin/streptomycin (Gibco, CA, USA), and 1% MEM non-essential amino acid (Gibco, CA, USA) at 37 °C under 5% CO2 conditions. The pHBV1.3 mer DNA encoding wild-type HBV genome was generously contributed by Dr. Jing-hsiung James Ou (University of Southern California). HepAD38 cells were a generous contribution by Dr. Christoph Seeger (Philadelphia, PA) . HepAD38 cells, having tetracycline-responsible promoter that harbored the whole HBV genome, were sustained in Roswell Park Memorial Institute media (RPMI 1640) (Gibco, CA, USA), supplemented with 20% FBS, 1% penicillin/streptomycin (Gibco, CA, USA), and 1% MEM non-essential amino acid (Gibco, CA, USA). They were grown in the presence of 0.5 mg/ml G418 (Invitrogen, CA, USA), and 1 mg/ml tetracycline at 37 °C under 5% CO2 conditions . HepG2 cells were grown in 6 well plates and transiently transfected with the plasmid (300 ng) encoding1.3mer HBV genome using TransIT®-LT1 transfection reagent (Mirus; Madison, WI, USA) according to manufacturer’s protocol. Both HepG2 and HepAD38 cells were grown prior to and after treatment with NAC (Millipore Sigma, MO, USA), EGTA-AM (Calbiochem, CA, USA), BAPTA-AM (Abcam: Cambridge, MA, USA), and, Ru360 (EMD Millipore corp; Billerica, MA, USA).
For western blot, anti-FAM26F C-terminal (ab194946; Abcam, Cambridge, MA, USA) rabbit polyclonal antibody (1:1000 dilution), IRF3 (D83B9; Cell signaling, Danvers, MA, USA) rabbit monoclonal antibody (1:1000 dilution), HBcAg (Santa Cruz Biotechnology, Dallas, TX, USA), GAPDH (FL-335; Santa Cruz Biotechnology, Dallas, TX, USA) rabbit polyclonal antibody (1:1000 dilution), and mouse-anti rabbit IgG HRP-conjugated (Sc-2357; Santa Cruz Biotechnology, Dallas, TX, USA)(1:10000 dilution) were used. The images were quantified by ImageJ software.
For immunoblotting, proteins were extracted from the lysates of both HepAD38 and HepG2/pHBV1.3 cells after 3 and 5 days post HBV induction respectively. Protein Assay kit (Bio-Rad, CA, USA) was used (according to the manufacturer’s instructions) to measure protein concentration. Fifty micrograms of protein was then subjected to SDS-PAGE and transferred thereafter to the nitrocellulose membrane (Thermo Scientific, CA, USA). After successful transfer, the blot was blocked with 5% Bovine serum albumin (BSA) for 1 h. at room temperature followed by three washes with 1XTBS-T buffer (0.05% Tween 20). Further, the blots were incubated with appropriate primary antibodies (1:1000) overnight at 4 °C. The next day, after being washed three times with 1XTBS-T buffer, the blot was incubated with particular horseradish peroxidase (HRP) labeled secondary antibodies (1:10000) at room temperature for 2 h., and then again washed thrice with 1XTBS-T buffer. The membranes were finally incubated with chemiluminescent HRP substrate for 1 min at room temperature. Kodak image station (Digital science, 440) was used to visualize the positive bands by following the manufacturer’s instructions. Quantification of the images was done by ImageJ software.
Sixty individuals were included in the study who were then divided into 4 groups: controls (n = 27), inactive carriers (n = 4), recovered cases (n = 10), and chronic hepatitis B patients (n = 19). Blood samples for the control group were collected from healthy blood donors, whereas those for the inactive carriers, recovered cases, and chronic hepatitis B subjects were taken from the Holy Family Hospital Rawalpindi, Pakistan. The characteristics of each patient like age, sex etc. are given in Table 1.
The selected individuals fulfilled the inclusion criterion of their respective groups. The criteria were as follows: for HBV inactive carriers: 1) a history of HBsAg being positive for > 4 years, 2) anti-HBe antibody positive, HBeAg negative, 3) no clinically proven symptoms of liver disease, and 4) less than 105 copies/ml of serum HBV DNA; for Chronic Hepatitis B subjects: 1) HBsAg positive for > 6 months or more, 2) Serum HBV DNA > 20,000 IU/mL (in HBeAg-positive patients), and 3) serum HBV DNA between 2000 and 20,000 IU/mL (in HBeAg-negative patients); for Recovered cases: 1) HBsAg negative, 2) hepatitis B core antibody (antiHBc) positive, and 3) anti-HBs positive. Patients who did not meet the above-mentioned criteria were excluded from the study. For control subjects, the criterion was: 1) HBsAg, anti-HBs, HBcAg, anti-HBc or anti-HBc negative, 2) undetectable serum HBV DNA levels, and 3) normal ALT levels.
For in vitro experiments, Qiagen RNeasy® mini kit was used for RNA extraction from cell lines as per the manufacturer’s instructions. For in vivo experiments, RNA was extracted from Peripheral Blood Mononuclear Cells (PBMCs) using the Trizol method .
For in vitro study, complementary DNAs were synthesized using Superscript™ III First-Strand Synthesis SuperMix (Invitrogen, CA, USA). For in vivo study, Moloney Murine Leukemia Virus Reverse Transcriptase (M-MLV RT) (Invitrogen, Cat No: 28025013) was used for cDNA synthesis. Both experiments were performed following the respective manufacturer’s instructions. Finally, the cDNA was diluted in the ratio 1:10 for further downstream experiments.
The RNA level of each gene was quantified through real-time qRT-PCR using DyNAmo HS SYBR Green qPCR kit (#F-410 L; Thermo Scientific, CA, USA). Primer pairs for the target genes were designed using primer3 software , which were then optimized by gradient PCR to determine their optimal annealing temperature. The primer pairs used for qRT-PCR were as follows: FAM26F forward primer: 60-TGTTGGGCTGGATCTTGATAG; FAM26F reverse primer: 60-CTGCTGCTTCCTGTTCCAA; IFNB1 forward primer: 60-ATGACCAACAAGTGTCTCCTCC; IFNB1 reverse primer: 60-GCTCATGGAAAGAGCTGTAGTG, GAPDH forward primer: 60-CCTGCACCACCAACTGCTTA; and GAPDH reverse primer: 60-CATGAGTCCTTCCACGATACCA. ABI PRISM 7000 Sequence Detection System (Applied Biosystems) was used to conduct the Real-time qPCR.
All the data are representative of three independent sets of experiments. For statistical analysis of the data, the Student’s t-test and one-way analysis of variance (ANOVA) were performed using Graph-Pad Prism 5.01 software.
In the in vitro experiments, the expression of FAM26F was determined by both its mRNA as well as protein levels, whereas IRF3 and IFN-β were analyzed only for their protein and mRNA expression respectively. For the in vivo experiments, only FAM26F protein expression was assessed during the study.
In vitro experiments

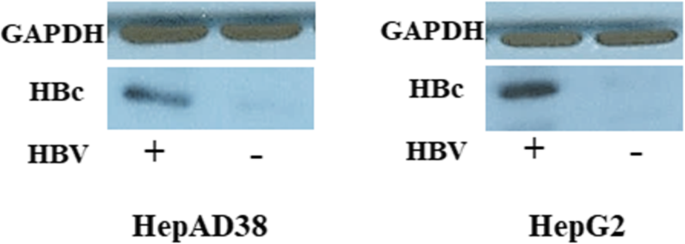

Positive HBV infection in HepAD38 and HepG2 cell lines
The first step prior to successive experiments was to confirm the presence of HBV infection in both HepAD38 and HepG2 cell lines. This was achieved by determining the level of HBV core protein (HBc) in infected cells as compared to the uninfected cells (Fig. 1). The results clearly show positive HBV infection in both the cell lines (detailed image in Additional file 1).

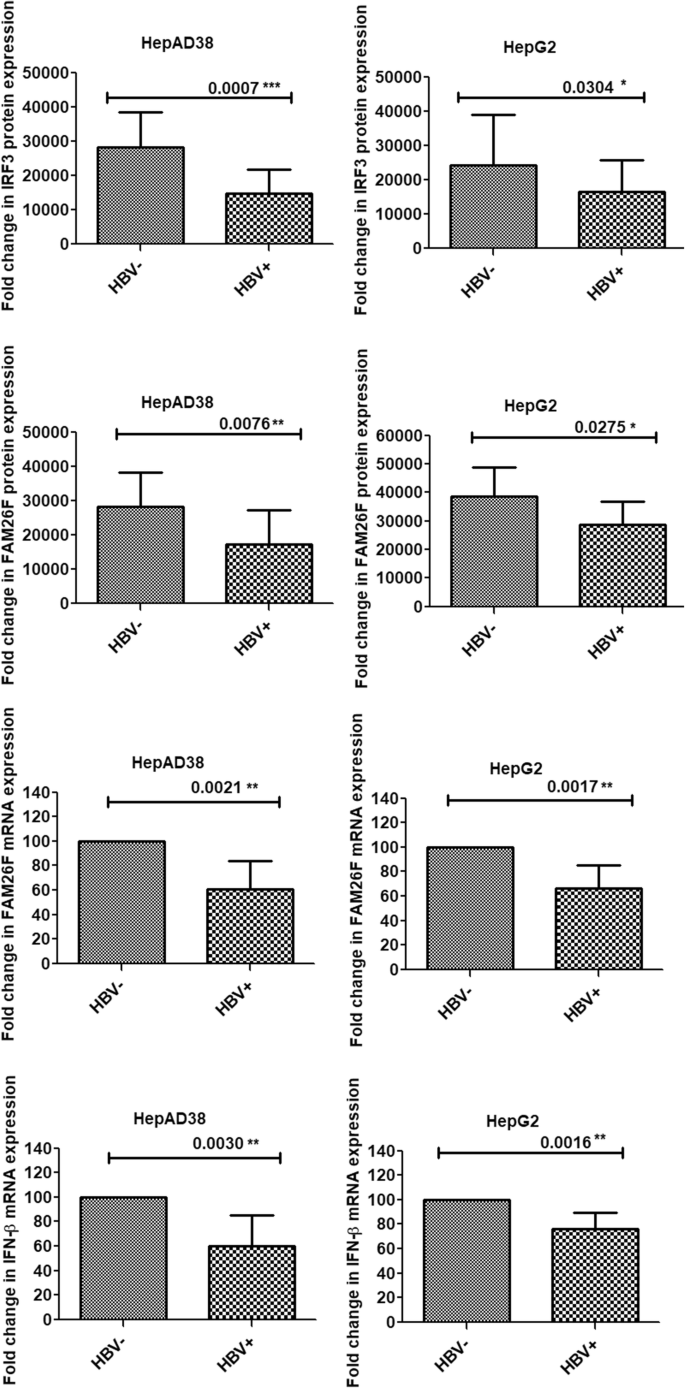

Reduction in IRF3, FAM26F, and IFN-β expressions post HBV infection
The results revealed that in both HepAD38 and HepG2 cell lines, the respective expressions of IRF3 (p = 0.0007, 0.03), IFN-β (0.003, 0.001), and FAM26F (0.007, 0.02; 0.002, 0.001) were significantly down-regulated as compared to uninfected control cells as depicted in Fig. 2.
Effect of antioxidant (NAC) treatment on the IRF3, FAM26F, and IFN-β expressions
The effect of NAC on the expressions of IRF3, FAM26F, and IFN-β in HepAD38 and HepG2/pHBV1.3 cell lines were checked prior to and after the treatment of cells with NAC. It was observed that treatment with NAC significantly up-regulated the IRF3 (p = 0.02, 0.01), FAM26F (p = 0.01, 0.03; p = 0.01, 0.003), and IFN-β (p = 0.02, 0.005) expressions in both HepAD38 and HepG2/pHBV1.3 cell lines, as shown in Fig. 3.
Effect of calcium inhibitors on the IRF3, FAM26F, and IFN-β expressions
Altered Ca2+ signaling and elevated Ca2+ have been observed in HBV replicating cells [2, 3]. A reversal in this balance is likely to restore Ca2+ homeostasis, leading to upregulation of FAM26F production, and ultimately to cell survival. Hence, the next experiments were carried out to check whether or not all the three Ca2+ inhibitors used in the study can restore the expression of FAM26F, IRF3, and IFNβ in HBV expressing cells, which was formerly downregulated due to impaired Ca2+ regulation.
Treatment with EGTA-AM significantly increased the expression of FAM26F (p = 0.02, 0.01; p = 0.01, 0.01) and IFN-β (p = 0.01, 0.03) in both the cell lines respectively, however, the increase in expression of IRF3 was not found significant (p = 0.12, 0.17). Treatment with BAPTA-AM significantly increased the FAM26F protein (p = 0.02, 0.005) as well as FAM26F mRNA (p = 0.003, 0.01) expression in both the cell lines respectively. A trend in the up-regulation of IRF3 (p = 0.12, 0.19) and IFN-β (p = 0.08, 0.16) expression was also observed in both HepAD38 and HepG2 cells after BAPTA-AM treatment as compared to non-treated cells, however, this increase was not statistically significant. Similar non-significant trend was observed in the protein expression of IRF3 (p = 0.11, 0.23) and FAM26F (p = 0.23, 0.21) after Ru360 treatment as depicted in Fig. 5. However, treatment with Ru360 significantly increased the expression of FAM26F (p = 0.04, 0.001) and IFN-β mRNA (p = 0.003, 0.01) in both the cell lines respectively.
Figures 4, 5 and 6 clearly demonstrate a trend in the up-regulation of IRF3, FAM26F, and IFN-β expressions in treated HBV expressing cells as compared to the untreated HBV expressing cells. HBV+(+EGTA) panel in Fig. 3, HBV+(+BAPTA) panel in Fig. 4, and HBV+(+Ru360) panel in Fig. 5 shows an increase in the IRF3, FAM26F, and IFN-β expressions compared to HBV+(−EGTA), HBV+(−BAPTA), and HBV+(−Ru360) respectively.
In vivo experiments
Differential expression and correlation of FAM26F with viral load in various patient groups and uninfected controls
The expression of FAM26F was also quantified in vivo and compared among various HBV infected patient groups as categorized by their disease progression state. The FAM26F expression was highest in controls and in the patients that had recovered from HBV infection. On the other hand, the FAM26F expression was significantly downregulated in all HBV infected groups as compared to controls. Among different study groups, FAM26F was significantly differentially expressed in samples from HBV patients as well as in controls with p = 0.0007 as shown in Fig. 7a. The correlation of FAM26F with viral load of various patient groups demonstrated an inverse relation. Recovered cases with least viral load had maximum FAM26F expression as compared to the Inactive carriers as well as Chronic HBV patient groups (Fig. 7b).
Calcium homeostasis plays a central role in the activation of cells of the immune system by increasing the cytosolic calcium levels through extracellular Ca2+ influx and by triggering Ca2+ release from the intracellular stores (Endoplasmic Reticulum (ER) and Golgi) , ultimately mediating the release of large amounts of ROS . This production of ROS in turn allows the host cell to trigger an efficient RIG-I-mediated IRF-3 activation and downstream antiviral genes . FAM26F, also termed as Calcium homeostasis modulator protein 6 (CALHM6), has recently been recognized as a potent innate immunity modulator, owing to its calcium homeostasis modulator domain . Previously, we have demonstrated that FAM26F is functionally related to calcium-binding proteins, specifically to Thioredoxin, and it was proposed that the FAM26F expression is regulated by cytosolic calcium disturbances . Likewise, the HBV expression has also been shown to be linked with disturbance in calcium homeostasis and up-regulation of ROS levels [2, 3]. Owing to the Ca2+ modulation by FAM26F and its interaction with Thioredoxin, it was hypothesized that FAM26F might play a role in Ca2+ and ROS regulation post HBV infection. However, no previous study or data is available in this regard.
Hence thecurrent study was designed to decipher the expression of FAM26F in vitro and in vivo upon HBV infection or in HBV infected patients respectively, and the effect of using ROS and calcium inhibitors on the regulation of FAM26F expression. Owing to the significance of IRF3 and IFN-β in mediating antiviral response and their reported involvement in regulating and enhancing FAM26F expression [25, 26], IRF3, and IFN-β were also investigated simultaneously with FAM26F for their expression regulation.
The results of the current study demonstrated that the expression of FAM26F, IRF3, and IFN-β was significantly down-regulated in both HBV replicating (HepAD38) and HBV induced (HepG2) cells as compared to uninfected control cells (Fig. 2). The decreased expression of IRF3, and IFN-β can be attributed to the various strategies that HBV has evolved to evade the host immune system by interrupting IFN-inducing cascades, hence resulting in their decreased expression [32,33,34,35,36,37,38,39,40]. Interestingly, IRF3 and IFN-β are both found to be essential for inducing the expression of FAM26F. A study involving the activation of NK cells by FAM26F showed that FAM26F induction was dependent on TICAM-1 and IRF-3 activation, as TICAM-1−/−or IRF3−/− knockout mDC was unsuccessful in inducing full NK cytotoxicity . Another study investigating the diverse macrophage activation in response to cytokines identified FAM26F as a responsive gene induced by more than one cytokine (IFN-γ, IFN-β, and IL-10) . Since IRF3 and IFN-β are the upstream players of FAM26F, and their expression is impaired during viral infection, hence FAM26F expression was also found to decrease upon HBV infection. This decrease in FAM26F expression analogous to the decrease in expressions of IRF3 and IFN-β suggests that FAM26F can also serve as a potential marker of HBV infection.
HBV can induce excessive oxidative stress and ROS production [41, 42], causing oxidative damage to hepatocytes and finally leading to the development of liver disease . In the current study, to counter the detrimental effects of ROS, both HepAD38 and HepG2 cell lines were treated with the antioxidant NAC which resulted in an increased expression of FAM26F, IRF3, and IFN-β (Fig. 3). This indicates that NAC treatment somehow downregulated HBV replication, and thus elevated the virus-induced inhibitory effect from these antiviral immune proteins. This is consistent with previous studies which demonstrated similar effects when ROS was inhibited in HBV infected cells.
We further evaluated the effect of calcium chelators on the expression of our target proteins in both HepAD38 and HepG2 cell lines. Treatment with EGTA-AM and BAPTA-AM increased the expression of FAM26F, IFN-β, and IRF3 in both the cell lines (Figs. 4 and 5). HBx acts on stored cytosolic calcium as a fundamental activity for HBV replication , thus it was postulated that calcium chelation would result in the decrease of HBV replication, and subsequently diminish its hold on the antiviral immune pathways, resulting in enhanced expression of FAM26F, IRF3, and IFN-β. The results of our study are in accordance with this notion. The significance of using calcium chelators for inhibiting HBV replication has been reported for long, as the compounds that stimulate cytoplasmic calcium accumulation, or mobilization can even replace the requirement for HBx in specifically promoting HBV DNA replication through a variety of pathways . For instance, chelation of cytosolic calcium with BAPTA-AM blocked HBx activation of Pyk2, a critical stimulant of HBV DNA replication . Derivatives of cyclosporine, i.e., cyclosporine A and cyclosporine H which block cytosolic calcium signaling also impaired HBV replication . The blocking of store-operated calcium entry (SOCE) results in the reduction of HBx mediated HBV replication . Another study also demonstrated that the replication of wild-type HBV is inhibited by treating cells with the intracellular calcium chelator BAPTA-AM .
Ru360 is a potent and specific inhibitor of mitochondrial calcium uniporter (mCU) , the main transporter involved in the uptake of Ca2+ into mitochondria . As discussed earlier, HBV replication requires increased cytosolic calcium plateau which is achieved by altering the mitochondrial Ca2+ uptake. This mitochondrial uptake of Ca2+ dampens Ca2+-mediated inhibition of further Ca2+ release from the ER and/or Ca2+ entry through the SOC channel, thereby prolonging Ca2+ entry into the cytosol to elevate cytosolic calcium levels [48,49,50,51,52]. To counter this mechanism and analyze the subsequent effects, both HepAD38 and HepG2 cell lines were treated with Ru360. The results showed a significant upregulation of the FAM26F mRNA as well as protein expression. The expression of IRF3 and IFN-β was also upregulated but not that significantly (Fig. 6). The significant increase in the FAM26F expression indicates the high potential of Ru360, and hence inhibition of mitochondrial Ca2+ uptake to counter the HBV infection. Moreover, it also implies that the expression of FAM26F is regulated by more than one pathway. Previous studies have also reported HBV inhibition by blocking the mitochondrial calcium uptake system. For instance, inhibition of the mitochondrial permeability transition pore (MPTP) blocks the HBx-induced increase of cytosolic calcium levels [44, 53]. Another study demonstrated that inhibition of SOCE or mitochondrial calcium uptake blocks the HBx-induced increase in the plateau level of calcium spikes . Furthermore, inhibition of mitochondria1channels with CGP37157 or CsA also blocked HBx activation of HBV DNA replication .
In the in vivo experiments, FAM26F was significantly downregulated in all HBV infected groups as compared to controls (Fig. 7a). However, the expression of FAM26F was highest in HBV recovered cases, which was consistent with in vitro results and signified the importance of FAM26F as a critical immune modulator and antiviral agent. Different HBV patient groups demonstrated a significant differential expression of FAM26F as compared to controls. When correlated with viral load in the respective groups, a trend of inverse relation between FAM26F and viral load was observed (Fig. 7b). This might be due to the inhibition of HBV by FAM26F, as was observed previously in a microarray study of HCV patients where FAM26F was identified as one of the various proteins associated with HCV viral clearance . This further emphasizes the importance of FAM26F, and thus merits it for further thorough investigation at molecular level.
The current study is the first to show the association of FAM26F with HBV. Cumulatively, the results of our study highlight the significance of FAM26F as an innate immune modulator and it is proposed that FAM26F expression could be an early predictive marker for HBV infection. Regardless of whether FAM26F is implicated promptly during the regulation of viral replication or ultimately through the immune resistance; our study has revealed that it is a significant molecule having visible intrinsic worth for further investigation.
Availability of data and materials
The raw data of the study consists of CT values for real time quantifications and western blot images for protein analysis, which is not submitted into any repository. This raw data is available with the corresponding author and can be provided on reasonable request.
Family with sequence similarity 26, member F
Hepatitis B virus
1,2-Bis (2-aminophenoxy)ethane-N,N,N′,N′-tetraacetic acid tetrakisacetoxymethyl ester
Ethylene-bis (oxyethylenenitrilo) tetraacetic acid Glycol ether diamine tetraaceticacid-acetoxymethyl ester
Oxygen-bridged dinuclear ruthenium amine complex
Reactive oxygen species
Hepatitis C Virus
Calcium homeostasis modulator
Calcium homeostasis modulator protein 6
Villitis of unknown etiology
American Type Culture Collection
Dulbecco’s Modified Eagle’s Medium
Fetal bovine serum
- RPMI 1640:
Roswell Park Memorial Institute media
Bovine serum albumin
Peripheral Blood Mononuclear Cells
- M-MLV RT:
Moloney Murine Leukemia Virus Reverse Transcriptase
One-way analysis of variance
Collagen triple helix repeat containing 1
Matrix metalloproteinase 9
Store-operated calcium entry
Mitochondrial calcium uniporter
Mitochondrial permeability transition pores
Voltage-dependent anion channel
WHO. Global hepatitis report 2017. Geneva: World Health Organization; 2017.
Bouchard MJ, Wang LH, Schneider RJ. Calcium signaling by HBx protein in hepatitis B virus DNA replication. Science. 2001;294(5550):2376–8.
Waris G, Huh KW, Siddiqui A. Mitochondrially associated hepatitis B virus X protein constitutively activates transcription factors STAT-3 and NF-kappa B via oxidative stress. Mol Cell Biol. 2001;21(22):7721–30.
Khan M, Syed GH, Kim SJ, Siddiqui A. Mitochondrial dynamics and viral infections: a close nexus. Biochim Biophys Acta. 2015;1853(10 Pt B):2822–33.
Kim SJ, Ahn DG, Syed G, Siddiqui A. The essential role of mitochondrial dynamics in antiviral immunity. Mitochondrion. 2018;41:21–7.
Kim SJ, Khan M, Quan J, Till A, Subramani S, Siddiqui A. Hepatitis B virus disrupts mitochondrial dynamics: induces fission and mitophagy to attenuate apoptosis. PLoS Pathog. 2013;9(12):e1003722.
Bruix J, Reig M, Sherman M. Evidence-based diagnosis, staging, and treatment of patients with hepatocellular carcinoma. Gastroenterology. 2016;150:835–53.
World Health Organization IAfRoC. Estimated cancer incidence, mortality and prevalence worldwide in 2012. 2012.
Yoo J, Hann HW, Coben R, Conn M, DiMarino AJ. Update treatment for HBV infection and persistent risk for hepatocellular carcinoma: prospect for an HBV cure. Diseases. 2018;6:E27.
Javed A. Gene expression pattern and functional analysis of CD8 T cells from individuals with or without anti HIV/SIV noncytolytic activity. Göttingen: Deutsches Primatenzentrum GmbH, Leibniz-Institut für Primatenforschung, Unit of Infection Models; 2012.
Grimes CZ, Hwang LY, Wei P, et al. Differentially regulated gene expression associated with hepatitis C virus clearance. J Gen Virol. 2013;94(Pt 3):534–42.
Ferreyra GA, Elinoff JM, Demirkale CY, Starost MF, Buckley M, Munson PJ, et al. Late multiple organ surge in interferon-regulated target genes characterizes staphylococcal enterotoxin B lethality. PLoS One. 2014;9(2):e88756.
Grumann D, Scharf SS, Holtfreter S, Kohler C, Steil L, Engelmann S, et al. Immune cell activation by enterotoxin gene cluster (egc)-encoded and non-egcsuperantigens from Staphylococcus aureus. J Immunol. 2008;181(7):5054–61.
Pankla R, Buddhisa S, Berry M, Blankenship DM, Bancroft GJ, Banchereau J, et al. Genomic transcriptional profiling identifies a candidate blood biomarker signature for the diagnosis of septicemic melioidosis. Genome Biol. 2009;10(11):R127.
Ahmed AM, Good B, Hanrahan JP, McGettigan P, Browne J, Keane OM, et al. Variation in the ovine abomasal lymph node transcriptome between breeds known to differ in resistance to the gastrointestinal nematode. 2015.
Mosca E, Alfieri R, Merelli I, Viti F, Calabria A, Milanesi L. A multilevel data integration resource for breast cancer study. BMC Syst Biol. 2010;4:76.
Javed A, Leuchte N, Salinas G, Opitz L, Stahl-Hennig C, Sopper S, et al. Pre-infection transcript levels of FAM26F in peripheral blood mononuclear cells inform about overall plasma viral load in acute and post-acute phase after simian immunodeficiency virus infection. J Gen Virol. 2016;97(12):3400.
Casciano JC, Duchemin NJ, Lamontagne RJ, Steel LF, Bouchard MJ. Hepatitis B virus modulates store-operated calcium entry to enhance viral replication in primary hepatocytes. PLoS One. 2017;12(2):e0168328.
Malik U, Javed A, Ali A, Asghar KJG. Structural and functional annotation of human FAM26F: a multifaceted protein having a critical role in the immune system. Gene. 2017;597:66–75.
Malik U, Zafar S, Younas N, Zerr I, Javed AJ. Unveiling the physical and functional niches of FAM26F by analyzing its subcellular localization and novel interacting partners. ACS Omega. 2020;5(35):22008–20.
Defamie V, Cursio R, Le Brigand K, Moreilhon C, Saint-Paul MC, Laurens M, et al. Gene expression profiling of human liver transplants identifies an early transcriptional signature associated with initial poor graft function. Am J Transplant Off J Am Soc Transplant Am Soc Transplant Surg. 2008;8(6):1221–36.
Brito H, Juliano P, Altemani C, Altemani A. Is the immunohistochemical study of the inflammatory infiltrate helpful in distinguishing villitis of unknown etiology from non-specific infection villitis? Placenta. 2005;26(10):839–41.
Pahl HL, Baeuerle PA. Activation of NF-kappa B by ER stress requires both Ca2+ and reactive oxygen intermediates as messengers. FEBS Lett. 1996;392(2):129–36.
Sen CK, Roy S, Packer L. Involvement of intracellular Ca2+ in oxidant-induced NF-kappa B activation. FEBS Lett. 1996;385(1–2):58–62.
Ebihara T, Azuma M, Oshiumi H, Kasamatsu J, Iwabuchi K, Matsumoto K, et al. Identification of a polyI: C-inducible membrane protein that participates in dendritic cell–mediated natural killer cell activation. J Exp Med. 2010;207(12):2675–87.
Zhang S, Kim CC, Batra S, McKerrow JH, Loke P. Delineation of diverse macrophage activation programs in response to intracellular parasites and cytokines. PLoS Negl Trop Dis. 2010;4(3):e648.
Ladner SK, Otto MJ, Barker CS, Zaifert K, Wang GH, Guo JT, Seeger C, King RW. Inducible expression of human hepatitis B virus (HBV) in stably transfected hepatoblastoma cells: a novel system for screening potential inhibitors of HBV replication. Antimicrob Agents Chemother. 1997;41(8):1715–20.
Panda SK, Kumar S, Tupperwar NC, Vaidya T, George A, Rath S, Bal V, Ravindran B. Chitohexaose activates macrophages by alternate pathway through TLR4 and blocks endotoxemia. PLoS Pathog. 2012;8(5):e1002717.
Rozen S, Skaletsky H. Primer3 on the WWW for general users and for biologist programmers. Methods Mol Biol. 2000;132:365–86 Clifton, N.J.
Nunes P, Demaurex N, Dinauer MC. Regulation of the NADPH oxidase and associated ion fluxes during phagocytosis. Traffic. 2013;14(11):1118–31.
Soucy-Faulkner A, Mukawera E, Fink K, Martel A, Jouan L, Nzengue Y, et al. Requirement of NOX2 and reactive oxygen species for efficient RIG-I-mediated antiviral response through regulation of MAVS expression. PLoS Pathog. 2010;6(6):e1000930.
Khan M, Syed GH, Kim S-J, Siddiqui A. Hepatitis B virus-induced Parkin-dependent recruitment of linear ubiquitin assembly complex (LUBAC) to mitochondria and attenuation of innate immunity. PLoS Pathog. 2016;12(6):e1005693.
Wan Y, Cao W, Han T, Ren S, Feng J, Chen T, et al. Inducible Rubicon facilitates viral replication by antagonizing interferon production. Cell Mol Immunol. 2017;14(7):607–20.
Bai L, Zhang W, Tan L, Yang H, Ge M, Zhu C, et al. Hepatitis B virus hijacks CTHRC1 to evade host immunity and maintain replication. J Mol Cell Biol. 2015;7(6):543–56.
Chen J, Xu W, Chen Y, Xie X, Zhang Y, Ma C, et al. Matrix metalloproteinase 9 facilitates hepatitis B virus replication through binding with type I interferon (IFN) receptor 1 to repress IFN/JAK/STAT signaling. J Virol. 2017;91(8):e01824–16.
Kawai T, Sato S, Ishii KJ, Coban C, Hemmi H, Yamamoto M, et al. Interferon-α induction through Toll-like receptors involves a direct interaction of IRF7 with MyD88 and TRAF6. Nat Immunol. 2004;5(10):1061–8.
Liu S, Peng N, Xie J, Hao Q, Zhang M, Zhang Y, et al. Human hepatitis B virus surface and e antigens inhibit major vault protein signaling in interferon induction pathways. J Hepatol. 2015;62(5):1015–23.
Zhu M, Lu B, Cao Q, Wu Z, Xu Z, Li W, Yao X, Liu F. IL-11 attenuates liver ischemia/ reperfusion injury (IRI) through STAT3 signaling pathway in mice. PLoS One. 2015;10(5):e0126296.
Wang X, Li Y, Mao A, Li C, Li Y, Tien PJC, et al. Hepatitis B virus X protein suppresses virus-triggered IRF3 activation and IFN-β induction by disrupting the VISA-associated complex. Cell Mol Immunol. 2010;7(5):341–8.
Tsunematsu S, Suda G, Yamasaki K, Kimura M, Izumi T, Umemura M, et al. Hepatitis B virus X protein impairs α-interferon signaling via up-regulation of suppressor of cytokine signaling 3 and protein phosphatase 2A. J Med Virol. 2017;89(2):267–75.
Hu L, Chen L, Yang G, Li L, Sun H, Chang Y, et al. HBx sensitizes cells to oxidative stress-induced apoptosis by accelerating the loss of Mcl-1 protein via caspase-3 cascade. Mol Cancer. 2011;10(1):43.
Bolukbas C, Bolukbas FF, Horoz M, Aslan M, Celik H, Erel O. Increased oxidative stress associated with the severity of the liver disease in various forms of hepatitis B virus infection. BMC Infect Dis. 2005;5(1):95.
Ren J-H, Chen X, Zhou L, Tao N-N, Zhou H-Z, Liu B, et al. Protective role of sirtuin3 (SIRT3) in oxidative stress mediated by hepatitis B virus X protein expression. PLoS One. 2016;11(3):e0150961.
Bouchard MJ, Puro RJ, Wang L, Schneider RJ. Activation and inhibition of cellular calcium and tyrosine kinase signaling pathways identify targets of the HBx protein involved in hepatitis B virus replication. J Virol. 2003;77(14):7713–9.
Yang B, Bouchard MJ. The hepatitis B virus X protein elevates cytosolic calcium signals by modulating mitochondrial calcium uptake. J Virol. 2012;86(1):313–27.
Matlib MA, Zhou Z, Knight S, Ahmed S, Choi KM, Krause-Bauer J, et al. Oxygen-bridged dinuclear ruthenium amine complex specifically inhibits Ca2+ uptake into mitochondria in vitroand in situ in single cardiac myocytes. J Biol Chem. 1998;273(17):10223–31.
Patergnani S, Suski JM, Agnoletto C, Bononi A, Bonora M, De Marchi E, et al. Calcium signaling around mitochondria associated membranes (MAMs). Cell Commun Signal. 2011;9(1):19.
Parekh AB. The wellcome prize lecture: store-operated Ca2+ entry: dynamic interplay between endoplasmic reticulum, mitochondria and plasma membrane. J Physiol. 2003;547(2):333–48.
Hajnóczky G, Hager R, Thomas AP. Mitochondria suppress local feedback activation of inositol 1, 4, 5-trisphosphate receptors by Ca2+. J Biol Chem. 1999;274(20):14157–62.
Hajnóczky G, Robb-Gaspers LD, Seitz MB, Thomas AP. Decoding of cytosolic calcium oscillations in the mitochondria. Cell. 1995;82(3):415–24.
Glitsch MD, Bakowski D, Parekh AB. Store-operated Ca2+ entry depends on mitochondrial Ca2+ uptake. EMBO J. 2002;21(24):6744–54.
Parekh AB. Store-operated channels: mechanisms and function. J Physiol. 2008;586(Pt 13):3033.
McClain SL, Clippinger AJ, Lizzano R, Bouchard MJ. Hepatitis B virus replication is associated with an HBx-dependent mitochondrion-regulated increase in cytosolic calcium levels. J Virol. 2007;81(21):12061–5.
We are highly indebted to Prof. Dr. Aleem Siddiqui University of California, San Diego (UCSD, USA) for his intellectual input and offering support in UCSD, USA to successfully conduct these experiments in his lab. We are also thankful to Dr. Mohsin Khan, UCSD, USA for his expert guidance and help during experimentation, and to Dr. Ayisha Khurshid, for her English editing services. We are thankful to Holy Family Hospital, Rawalpindi for providing blood samples. We are grateful to UCSD, USA, ASAB (NUST), and International Islamic University Islamabad, Pakistan for providing support and technical resources to conduct this research.
This research was funded by the Higher Education Commission of Pakistan (HEC) under IRSIP program (IRSIP 35 BMS 22), NUST student funds of Dr. Aneela Javed, and IIUI student funds of Dr. Shaheen Shahzad. None of the funding agencies had any role in the design of the study and collection, analysis, and interpretation of data and in writing the manuscript.
Ethics approval and consent to participate
The research was approved by the Departmental Ethical Committee of International Islamic University, Islamabad, Pakistan (Letter No. IIUI/FBAS/BIO.SCI/01). Written informed consent to take part in the study was obtained from the enlisted patients and their legal guardians.
Consent for publication
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Raw immunoblot image of HBV core protein (HBc) from extracts of HepAD38 and HepG2 cells expressing whole HBV genome and the HBV 1.3mer plasmid respectively. GAPDH was used as internal control.
