Pre-treatment with IL2 gene therapy alleviates Staphylococcus aureus arthritis in mice
BMC Infectious Diseases volume 20, Article number: 185 (2020)
Staphylococcus aureus (S. aureus) arthritis is one of the most detrimental joint diseases known and leads to severe joint destruction within days. We hypothesized that the provision of auxiliary immunoregulation via an expanded compartment of T regulatory cells (Tregs) could dampen detrimental aspects of the host immune response whilst preserving its protective nature. Administration of low-dose interleukin 2 (IL2) preferentially expands Tregs, and is being studied as a treatment choice in several autoimmune conditions. We aimed to evaluate the role of IL2 and Tregs in septic arthritis using a well-established mouse model of haematogenously spred S. aureus arthritis.
C57BL/6 or NMRI mice we intravenously (iv) injected with a defined dose of S. aureus LS-1 or Newman and the role of IL2 and Tregs were assessed by the following approaches: IL2 was endogenously delivered by intraperitoneal injection of a recombinant adeno-associated virus vector (rAAV) before iv S. aureus inoculation; Tregs were depleted before and during S. aureus arthritis using antiCD25 antibodies; Tregs were adoptively transferred before induction of S. aureus arthritis and finally, recombinant IL2 was used as a treatment starting day 3 after S. aureus injection. Studied outcomes included survival, weight change, bacterial clearance, and joint damage.
Expansion of Tregs induced by IL2 gene therapy prior to disease onset does not compromise host resistance to S. aureus infection, as the increased proportions of Tregs reduced the arthritis severity as well as the systemic inflammatory response, while simultaneously preserving the host’s ability to clear the infection.
Pre-treatment with IL2 gene therapy dampens detrimental immune responses but preserves appropriate host defense, which alleviates S. aureus septic arthritis in a mouse model.
Staphylococcus aureus (S. aureus) is one of the pathogens most commonly causing life-threatening conditions, especially in individuals with underlying health conditions; this is especially relevant to present-day society with its ageing population, its increased burden of chronic diseases such as cancers and autoimmune diseases, and the chemotherapeutic and immunosuppressive treatments that accompany them . One particularly severe manifestation is S. aureus arthritis, which is characterized by a rapid destruction of the joints, often followed by permanent and disabling articular damage despite appropriate antibiotic therapy .
Innate immunity has been shown to be protective during S. aureus arthritis [3,4,5], but the role of the adaptive immune response is less clear. Clonal expansion of T lymphocytes plays a significant role in the induction of S. aureus arthritis and CD4+ T cells are considered to be pathogenic in this disease . S. aureus infection induces memory T cells against extracellular staphylococcal antigens, and the presence of memory T cells might influence the course of infection , but at the same time, the staphylococci are apparently able to dampen T cell responses using several strategies to promote their own survival . One of these is to limit bacterial clearance by expanding T regulatory cells (Tregs) and myeloid derived suppressor cells . The part played by Tregs in S. aureus arthritis is unclear. Tregs are defined by the expression of CD4, CD25 and their essential transcription factor, Forkhead box protein 3 (FoxP3), and they have been implicated in the regulation of autoimmune diseases [10,11,12,13,14]. In autoimmune arthritis, Tregs suppress arthritis development and prevent osteoclast activation, thus reducing subsequent bone erosion . Tregs constitutively express the IL2 receptor (IL2R) and although they do not produce IL2 themselves, they are dependent on IL2 for their peripheral homeostasis and maintenance [16, 17]. Administration of low-dose IL2 tips the balance between Tregs and T effector cells (Teffs) towards Tregs  showing great promise for the treatment of autoimmune disorders [19,20,21,22,23]. Despite these successes, little is known of how the presence of low-dose IL2 and the consequent expansion of Tregs could affect beneficial effector immune responses when patients receiving the treatment develop acute bacterial infections, such as S. aureus arthritis. We hypothesize that although the staphylococci themselves upregulate Tregs during the infection to evade the host immune response [8, 24], a further expansion of Tregs could ameliorate the excessive inflammatory response that is responsible for joint damage and the subsequent detrimental sequelae of this disease. As these studies are very difficult to perform in humans, the aim of this study was to determine whether IL2 and its impact on Tregs influence the course of S. aureus arthritis with respect to survival, bacterial clearance and joint damage in our well-established mouse model of hematogenously spread S. aureus septic arthritis .
Mice strains, ethics statement for animal experiments and randomization
Naval Medical Research Institute (NMRI) and 6–8 weeks old wildtype C57BL/6 mice of both sexes were obtained from Charles River Laboratories (Sulzfeld, Germany) and Scanbur (Sollentuna, Sweden), respectively. Mice were maintained under standard conditions of temperature and light and fed laboratory chow and water ad libitum, at the SPF animal facility of the Department of Rheumatology and Inflammation Research at the University of Gothenburg, Sweden. Mice were hosted up to 10 animals per cage, and both actively treated animals and controls were mixed in the same cage. Mice were allocated to active or control group randomly before the experiments started and assessed by the examiners in a blind manner. All procedures with living mice were performed in the animal house laboratory. Experiments were approved by the Animal Research Ethical Committee of Gothenburg and animal experimentation guidelines were followed strictly (38–2016).
Recombinant adeno-associated viral vector generation and administration
Recombinant adeno-associated viral vectors (rAVV) of serotype 8 were generated by triple transfection of human embryonic kidney 293 T cells (293 T/17 SF [HEK 293 T/17 SF ATCC® ACS-4500)] . The transgenes luciferase (LUC) and murine IL2 were used and driven by the hybrid cytomegalovirus enhancer/chicken beta-actin constitutive promoter. Mice were injected once intraperitoneally (ip) 19 days prior to bacterial inoculation (day 0) with 1010 viral genomes (vg) of rAAV in a total volume of 100 μl of phosphate-buffered saline (PBS).
Bacterial strain and doses
Two strains of S. aureus were used: the clinically isolated LS-1 strain, that produces Toxic Shock Syndrome Toxin 1 (TSST-1), and the laboratory strain, Newman was used in one experiment. The bacterial doses were adjusted to the mouse strain and the purpose of the experiments [25, 27] are summarized in Table 1.
Mouse model of S. aureus arthritis
Table 1 summarizes the experiments, numbers of mice and of colony forming units (CFU) inoculated per mouse. In total 182 mice were used, including 72 NMRI mice and 110 C57BL/6 mice. Pre-made batches of bacteria were thawed, washed and diluted to the desired concentration. To avoid adverse events, the number of inoculated CFU was carefully assessed with respect to bacterial strain and mouse strain. The food was placed at the bottom of the cage and the water tanks had extra long tips to aoid inflicting more pain to inflamed paws when feeding. Mice were inoculated via the tail vein with 0.2 ml of S. aureus. Thereafter, mice were weighed regularly by observers blinded to their treatment group (P.J., I.G., MN.N. and T.J.). On indicated days the mice were anesthetized with ketamine hydrochloride (Pfizer AB, Sweden) and metedomidine (Orion Pharma, Finland) and then sacrificed by cervical dislocation. Hereafter, kidneys were obtained for assessment of bacterial persistence, limbs for radiological and histological evaluations, and spleens, lymph nodes and blood were used for flow cytometry and cytokine analysis.
Adoptive transfer of Tregs
To expand the Treg compartment of naïve mice sufficiently to provide for the harvesting of Tregs for adoptive transfer, C57BL/6 donor mice (n = 10) were injected once ip with 1010 vg rAAV-IL2 19 days prior to the bacterial inoculation of experimental mice on day 0. Two days prior to bacterial inoculation, spleens were harvested from the donor mice and CD4+CD25+ Tregs were isolated with Dynabeads FlowComp Mouse CD4+CD25+ Treg cells kit (Invitrogen) according to the manufacturer’s instructions. On day 0, 0.9 × 106 CD4+CD25+ cells in a total volume of 200 μl PBS were transferred iv into recipient (experimental) C57BL/6 mice (n = 4), and recipient control mice (n = 8) were injected with an equal volume of PBS. Also on day 0, all recipient mice were inoculated iv with the LS-1 strain of S. aureus; the experiment was terminated 11 days later, when mice were sacrified for blood and tissue analysis.
Anti-CD25 antibody treatment
Three days before and 3 days after bacterial inoculation, C57BL/6 mice (n = 10) or NMRI mice (n = 10) were treated with an ip injection of 500 μg rat anti-mouse CD25 monoclonal antibody (clone: PC.61·5, rIgG1; BioXcell, West Lebanon, NH, USA) in a total volume of 100 μl of PBS. Control C57BL/6 (n = 10) or NMRI mice (n = 10) treated likewise with rat IgG1 mAb (BioXcell), 500 μg/mouse, served as negative controls.
IL2 treatment (recombinant human IL2, rhIL2, Proleukin®, Novartis) was started on day 3 after bacterial inoculation on day 0. C57BL/6 mice (n = 9) were treated with ip injections of 25.000 IU/day/mouse  of rhIL2 in a total volume of 100 μl of phosphate-buffered saline (PBS) until the end of the experiment on day 10. Mice in the control group (n = 9) were injected with PBS.
Clinical evaluation of S. aureus arthritis
Observers blinded to the treatment groups visually inspected the wrists, ankles, fingers and toes of each mouse during the course of the infection . Arthritis was defined as erythema and/or joint swelling. To evaluate the severity of arthritis, a clinical scoring system from 0 to 3 was used for each paw, as described before [27, 29]. Since the signs of arthritis in deeper joints (e.g. knee and elbow joints) cannot be evaluated clinically, micro-computed tomography (μ-CT) or histopathology of joints was used as necessary for further confirmation of arthritic pathology.
Histology of inflamed joints
Joints were fixed, decalcified and paraffin embedded. Tissue sections from fore- and hind paws were cut, deparaffinized and stained with hematoxylin-eosin (Histolab Products AB, Gothenburg, Sweden). Stained slides were coded and evaluated by two observers blinded to the treatment groups (B.B. and I.G.). The evaluation was based on inflammatory cell accumulation in synovial tissue (synovitis) and bone erosion. The degrees of synovitis and bone erosion were scored on a scale of 0 to 3 for every joint of finger/toes, wrists/ankles, elbows and knee. For comparison between individuals, the total score/mouse was divided by the number of joints evaluated.
Microcomputed tomography (μCT)
Joints were fixed in 4% formaldehyde for 3 days and then transferred to PBS for 24 h. Afterwards all 4 limbs were scanned and reconstructed into a three-dimensional structure with Skyscan1176 micro-CT (Bruker, Antwerp, Belgium), as previously described . After reconstruction, the 3D structures of each joint were assessed by two observers blinded to the treatment groups (T.J. and Y.F) using a scoring system from 0 to 3 (0, healthy joint; 1, mild bone destruction; 2, moderate bone destruction; 3, marked bone destruction).
The host’s ability to clear the S. aureus bacteria was measured as the CFU/kidney pair. Extra-articular spread of bacteria in the mouse model is predominantly to the kidneys and spleen and since culturing bacteria from murine joints is challenging in practice, we used the kidney cultures to reflect the bacterial clearance. Kidneys were aseptically dissected, kept on ice, homogenized, serially diluted in PBS and spread on blood agar plates. After 24 h of incubation at 37 °C, the number of CFU/kidney pair was determined.
Cell preparation and flow cytometry
Single cell suspensions were prepared from blood, regional lymph nodes, spleens and kidneys, and were pre-incubated with Fc-block (BD Biosciences). The antibodies used are summarized in Table 2. Analyses were performed on a FACSCanto II equipped with FACSDiva software (BD Bioscience), and with the FlowJo software (Tree Star Inc.). The gating strategies were based on fluorochrome minus one (FMO) setting, when needed.
Th1/Th2 cytokines (GM-CSF, IFNγ, IL1α, IL10, IL17A, IL2, IL4, IL5, IL6 and TNF) were analyzed in serum from rAAV treated mice using the Mouse Th1/Th2 10-plex Ready-to-Use FlowCytomix Multiplex kit (eBioscience) according to the manufacturer’s recommendations. Samples were analysed with a FACS Canto II.
Statistical analyses were performed using GraphPad Prism (GraphPad, La Jolla, CA). Statistical differences between groups were calculated using the Mann-Whitney U test, Student’s t test and one-way ANOVA. Kaplan-Meier survival plots were prepared and the log-rank test was used for comparison between the two survival curves. P < 0.05 was considered statistically significant.
All data generated or analysed during this study are included in this published article.
The frequencies of CD4+CD25+FoxP3+ Tregs in blood, spleen and lymph nodes increased during the natural course of S. aureus arthritis
To study the physiological changes in Treg proportions during the natural course of S. aureus arthritis, mice were inoculated iv with S. aureus at day 0 and healthy uninfected mice were used as controls (Fig. 1a). The frequencies of CD4+CD25+FoxP3+ Tregs in blood, spleen and lymph nodes of mice with S. aureus arthritis, from day 3 to 14 after bacterial inoculation, were higher than those in healthy control mice (Fig. 1b).
Persistent IL2 release by rAAV-IL2 enhanced bacterial elimination and reduced systemic inflammation as well as joint damage in S. aureus arthritis
To expand the Treg compartment in experimental mice, they were injected once intraperitoneally (ip) with recombinant adeno-associated virus vector (rAAV) encoding IL2 or luciferase (LUC) at day − 19. At day 0, i.e. 19 days later the proportion of CD4+CD25+FoxP3+ Tregs in the peripheral blood of IL2 treated mice was significantly increased compared to controls, as was the level of expression on the Tregs of CD25 (measured as geometric mean fluorescence (gMFI)), but not of FoxP3 (Fig. 2a-b). The rAAV-mediated IL2 release did not affect the frequencies of CD4+CD25− Teffs or CD4+CD25+FoxP3− activated Teffs (Fig. 2c-d). These results are in agreement with previous results , and show that continuous rAAV-mediated release of murine IL2 in this fashion increases and activates Tregs, without affecting Teffs.
To establish S. aureus arthritis in the mice with persistent IL2 release, they were intravenously (iv) inoculated with S. aureus on day 0 (Fig. 3a). Weight loss, which is used as a measurement of morbidity in this mouse model, and mortality were not affected by the rAAV-IL2 treatment (Fig. 3b-c). At day 10 after bacterial inoculation, the host’s ability to clear the bacteria was increased in the rAAV-IL2-treated group compared to the control group (Fig. 3d). Systemic levels of proinflammatory cytokines are elevated in S. aureus arthritis and correlate well with disease severity and morbidity [32, 33]. Serum levels of TNF and IL6 were significantly decreased in the rAAV-IL2 group compared to controls 10 days after bacterial inoculation (Fig. 3e-f). Serum levels of IL5 were significantly increased in the rAAV-IL2 group compared with controls, at both 7 and 10 days after bacterial inoculation (Fig. 3g). Serum levels of GM-CSF, IFNγ, IL1α, IL10, IL17A, IL2 and IL4 were all below detection limits. These results show that relative to controls, mice with enhanced Treg compartments at bacterial inoculation and persistent IL2 release during the course of S. aureus arthritis had reduced systemic inflammatory responses and improved bacterial clearance 10 days after inoculation, without adverse effects on their mortality or morbidity.
We hypothesized that increased immunoregulation would reduce the severe and irreversible joint damage in S. aureus arthritis, as it is the bone erosivity that gives rise to the sequelae, and it is the excessive immune response in this infection that is responsible for the joint damage. To test this prediction, we evaluated clinical and histopathological signs of arthritis. There were no differences between the groups with respect to severity of clinically evaluated arthritis during the course of infection (Fig. 3h). However, histopathological evaluations of the joints 10 days after bacterial inoculation showed that the rAAV-IL2-treated mice had a significant reduction in the severity of synovitis (Fig. 3i and k) and bone erosion (Fig. 3j-k), compared to controls.

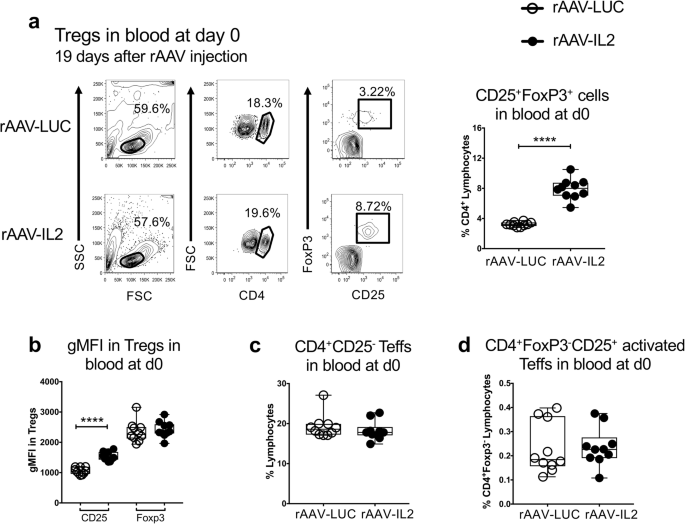

Persistent IL2 release by rAAV-IL2 led to an increase in the frequencies of Tregs, B, NK and NKT cells prior to bacterial inoculation but only Treg frequency remained elevated during S. aureus arthritis
To elucidate the mechanism behind the beneficial effects of rAAV-induced IL2 release in S. aureus arthritis, we analyzed the composition of different immune cell types from mice receiving rAAV-IL2 or LUC during the course of S. aureus arthritis. The frequency of CD4+CD25+FoxP3+ Tregs in peripheral blood and spleen was significantly higher in the rAAV-IL2 treated group than in the control group throughout the infection (Fig. 4a). At termination, i.e. 10 days after bacterial inoculation, the expression levels of CD25 and FoxP3 on Tregs in both blood and spleen of treated mice were also significantly higher than on those of controls (Fig. 4b). The frequency of CD4+CD25− Teffs in blood and spleen throughout the infection was not affected by rAAV-IL2 treatment (Fig. 4c). At day 10, the frequency of CD4+CD25+FoxP3− activated Teffs in the rAAV-IL2 group was significantly increased in blood but decreased in spleen, compared to controls (Fig. 4d). Otherwise, the frequencies of CD4+CD25+FoxP3− activated Teffs were similar in both groups. Thus, i.p. injection of rAAV-IL2 expanded and activated Tregs throughout the infection without major impact on Teffs.
Because Tregs are not the only target of IL2 action, we assessed its’ influence on other cell populations. The frequencies of NK cells, NKT, B cells and CD8+ T cells in peripheral blood were significantly elevated in treated mice compared to controls 19 days after rAAV-IL2 injection (Fig. 4e-h), but this difference disappeared following bacterial inoculation (day 1 and onwards). For the remaining duration of the experiment, there were no differences between treatment groups with respect to the proportions or absolute numbers of NK, NKT, B cells or CD8+ T cells in peripheral blood and in the spleen (Fig. 4e-h).
Depletion of CD25+ cells aggravated S. aureus arthritis
As the elevated frequencies of NK and NKT cells achieved prior to infection could provide one explanation for the beneficial effects of rAAV-IL2 treatment on S. aureus arthritis, e.g. through improved bacterial killing, we next sought to isolate the Treg-mediated effects. Depletion of CD25+ cells with anti-CD25 antibodies has been shown to deplete Tregs, but when implemented in our experimental mice (Fig. 5a), it did not significantly affect weight loss or bacterial clearance at day 10 (Fig. 5b-c). However, C57BL/6 mice depleted of CD25+ cells developed a more severe clinical arthritis after intravenous inoculation of the S. aureus LS-1 strain (Fig. 5d). In addition, similar results were obtained when the experiment was repeated with NMRI mice. These mice were also depleted of CD25+ cells but instead of LS-1, the S. aureus Newman strain was used (Fig. 5e-g). Taken together these results suggest that the Treg compartment protects against joint destruction.
Adoptive transfer of CD4+CD25+ Tregs in S. aureus arthritis
To find out whether adoptive transfer of Tregs is protective in S. aureus arthritis, CD4+CD25+ Tregs were harvested 19 days after rAAV-IL2 injection from donor mice and transferred to recipient mice (Fig. 6a). No differences in weight loss or bacterial clearance were found between the groups at day 11 (Fig. 6b-c). Although mice that had received Tregs tended to have lower scores for clinical arthritis and micro-CT-evaluated bone erosions, the differences were not statistically significant (Fig. 6d-e).

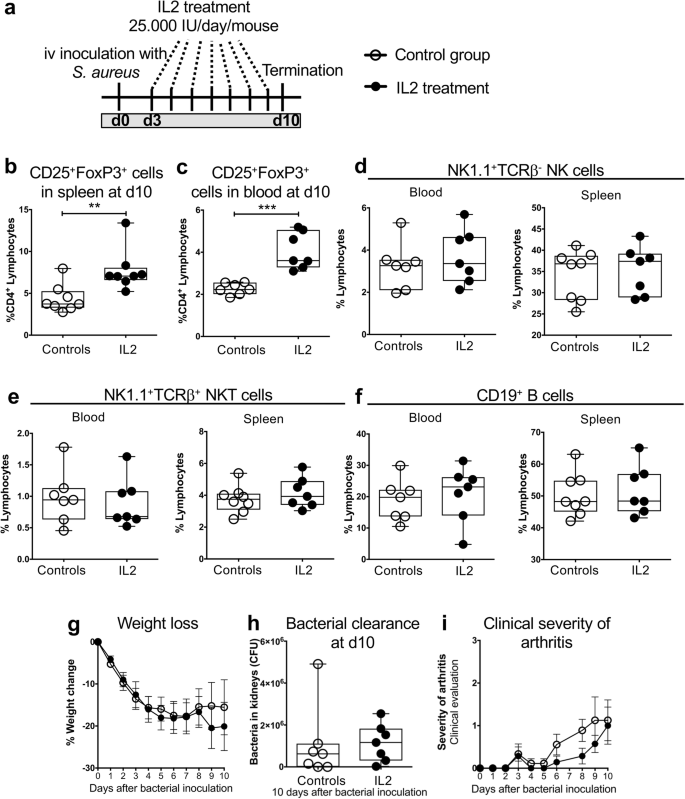

Recombinant IL2 treatment after onset of S. aureus arthritis increased the frequency of Tregs but did not alter arthritis development
To investigate whether an expanded Treg compartment at the onset of S. aureus-induced arthritis is a prerequisite for the beneficial effects of Tregs on joint damage, or whether IL2 might also be a useful treatment option in septic arthritis, mice were inoculated with S. aureus and treatment with exogenous rhIL2 was started at day 3 after infection, when clinical signs of arthritis are evident (Fig. 7a). The proportions of Tregs in spleen and peripheral blood 10 days after bacterial inoculation were significantly increased in the rhIL2-treated animals compared to controls (Fig. 7b-c). However, no differences were detected in the proportions of NK, NKT, or B cells in spleen or blood at termination (Fig. 7d-f). Weight loss, bacterial clearance and clinical severity of arthritis were all similar in both groups (Fig. 7g-i). Thus, it appears that the Treg compartment needs to be expanded before bacterial inoculation to have a beneficial effect on arthritis development.
S. aureus arthritis remains an infection with high morbidity and mortality, which has proven difficult to treat effectively due to the conflicting requirements of a strong immune response to ensure bacterial elimination, and concomitant mitigation of the tissue destructive effects of that strong immune response. The results we present here show that the combination of ip injection of rAAV-IL2 and an expanded Treg compartment, present at the onset of S. aureus arthritis, is beneficial with respect to joint damage and does not dampen protective host responses.
As others have found , we show here a physiological increase in the frequency of CD4+CD25+FoxP3+ Tregs in blood, spleen and lymph nodes during the natural course of S. aureus arthritis, which is most likely due to the host’s regulation of the evoked immune response. The rAAV-induced IL2 persistent release that we used here, before and during the course of S. aureus arthritis, is known to robustly expand CD4+CD25+FoxP3+ Tregs in both blood and spleen ; we have confirmed this effect and found it to be sustained for the duration of the infection, without a major impact on the Teffs. An expanded Treg compartment at bacterial inoculation and persistent IL2 release during the course of S. aureus arthritis reduced the systemic inflammatory response and led to an increase in bacterial clearance 10 days after bacterial inoculation, with no adverse effects on mortality or morbidity. We hypothesized that the increased immunoregulation would reduce the severe and irreversible joint damage in S. aureus arthritis, as it is the bone erosivity that gives the sequelae, and it is the excessive immune response in this infection that is responsible for the joint damage. In fact, our treatment led to a reduction in both synovitis and bone erosion in the rAAV-IL2-treated mice, compared to controls.
The beneficial effects we observed, however, may not be solely attributable to the Tregs themselves. The rAAV-IL2 mediated IL2 release resulted in a higher frequency relative to controls of NK cells at bacterial inoculation but not later during the infection. NK cells express high levels of the intermediate-affinity CD122, 132 dimeric IL2R and require IL2 for activation and proliferation. Tregs on the other hand, in addition to CD122 and CD132 expression, also constitutively express high levels of CD25 IL2Rα and therefore the high-affinity trimeric IL2R; the resulting enhancement of both their sensitivity to and their consumption of IL2 limits the supply for other cell types . Thus, the failure of the NK cell population to expand following infection could be a result of the preemptive expansion and consequent IL2 depletion by Tregs. It is nonetheless possible that the enlarged NK cell population attributable to IL2 supply before infection contributes to the improved clinical outcome we have observed, as others have found that antibody-mediated depletion of NK cells leads to more profound synovitis and severe joint destruction in S. aureus arthritis . Our own previous work, however, has implicated IL15, an absolute requirement for the development of NK cells, in mediating joint damage in S. aureus arthritis, indicating that more work is required to permit proper assessment of the NK cell contribution to the current results. Likewise, the relevance of the observed increase in B cell frequencies after rAAV-induced IL2 production is unclear, but the contribution of B cells to host’s defenses in S. aureus arthritis is thought to be limited .
The increase in Treg frequency and the reduction in bacterial load in the rAAV-IL2 mice relative to controls were accompanied by a significant reduction in serum levels of IL6 and TNF. Together with other cytokines such as IL17, both IL6 and TNF are known to induce the RANKL expression that subsequently enhances osteoclastogenesis and bone destruction, and are thus considered pathogenic in S. aureus arthritis [37,38,39,40]. Lower levels of IL6 and TNF, an expanded Treg but not Teff compartment, and no adverse effects on morbidity and mortality, combine to suggest that it is a decrease in general inflammation that is responsible for lessening joint destruction, to which the reduced frequency of Teffs in spleen might contribute. It might seem counterintuitive that the bacterial clearance is improved during immunosuppression, but indeed the presence of IL-10 improves bacterial clearance and reduces serum levels of TNF . It is also possible that the increased levels of IL5, which probably are due to both the infection  and the increased levels of IL2 , could contribute to an improved bacterial clearance as IL5 induces the production of eosinophils that could provide a survival benefit in S. aureus bacteremia .
Depletion of CD25+ Tregs significantly aggravated the clinical arthritis. This is in line with our previous study where we showed that treatment with CTLA4-Ig, which inhibits T cell activation and deletes Tregs, aggravated S. aureus arthritis . To determine whether the beneficial effects in S. aureus arthritis were due to Tregs or other IL2-mediated effects, we adoptively transferred CD4+CD25+ Tregs and found a clear, although not statistically significant, tendency to a reduction of both the clinical arthritis and bone erosion. Taken together, these results suggest that Tregs are protective in S. aureus arthritis, but the effect obtained by enhanced IL2 production is not solely mediated by Tregs.
Our results suggest that rAAV-induced IL2 production significantly enhanced bacterial killing and reduced the inflammation and bone erosion. Could IL2 therefore be a treatment option in patients with S. aureus arthritis? Our treatment with rhIL2 in clinically manifest murine S. aureus arthritis had no positive effects on the joint damage or bacterial clearance, suggesting that rhIL2 is not efficient as a treatment in S. aureus arthritis when infection is established and disease has progressed. In fact, IL2 treatment did expand the CD4+CD25+FoxP3+ compartment, although to a lesser extent than treatment with the rAAV-induced IL2 (around 7% compared to 20% in spleen, respectively), but failed to enhance the proportion of NK cells. We speculate that in order to have a beneficial effect on the outcome of infection, the Treg compartment, and possibly also the NK cell compartment, need to be expanded already at the onset of infection, and that the expanded compartments might need to reach a certain size.
There are several limitations in the present study. Neither the number of Tregs obtained for adoptive transfer or the dose of rIL2 has not been titrated for these particular experiments, thus the optimal dose and time point for administration might not have been reached. The number of mice in these experiments are also limited. Depletion of CD25+ cells deplete not only Tregs but also T effector cells that might have impact on the results. An inbread mouse strain, such as C57BL/6 might give biased results, however the fact the role of IL2 and Tregs were very similar when both different mice strains (NMRI and C57BL/6) as well as different bacterial strains (LS-1 and NMRI) were used support our findings.
IL2 in high doses is clinically approved as a cancer therapy because of the desired anti-tumor effects of Teffs. The same molecule in low doses preferentially expands and activates Tregs without affecting the Teffs and seems to represent a promising and safe treatment option in patients with various diseases where inflammation is thought to play a pivotal role, such as in various autoimmune diseases [21, 23, 44, 45], graft-versus-host disease  and atherosclerosis [47, 48]. In this study, IL2 gene delivery led to a sustained expansion of CD4+CD25+FoxP3+ Tregs, at the same time leaving Teffs unaffected, suggesting that the strategy of using rAAV-induced IL2 production probably resembles low-dose IL2 therapy in patients. To date there is insufficient evidence to judge whether low-dose IL2 therapy increases the susceptibility to infections in these patients. However, our results suggest that patients treated with low-dose IL2 may not be at an increased risk of hematogenously spread S. aureus arthritis, but on the contrary, an infection might have a milder course, and that the addition of low-dose IL2 to antibiotics in S. aureus infections might prove beneficial if provided very early.
Availability of data and materials
The datasets used and analyzed during the current study are available from the corresponding author on reasonable request.
Cluster of differentiation
Forkhead box protein 3
Granulocyte-macrophage colony-stimulating factor
geometric mean fluorescence
Naval Medical Research Institute
recombinant adeno-associated virus vectors encoding for IL2
recombinant adeno-associated virus vectors encoding for luciferase
Receptor activator of nuclear factor kappa-Β ligand
recombinant human interleukin 2
- S. aureus :
T effector cells
T regulatory cells
Toxic Shock Syndrome Toxin 1
Tong SY, Davis JS, Eichenberger E, Holland TL, Fowler VG Jr. Staphylococcus aureus infections: epidemiology, pathophysiology, clinical manifestations, and management. Clin Microbiol Rev. 2015;28(3):603–61. https://doi.org/10.1128/CMR.00134-14.
Kaandorp CJ, Krijnen P, Moens HJ, Habbema JD, van Schaardenburg D. The outcome of bacterial arthritis: a prospective community-based study. Arthritis Rheum. 1997;40(5):884–92 10.1002/1529-0131(199705)40:5<884::AID-ART15>3.0.CO;2–6.
Na M, Jarneborn A, Ali A, Welin A, Magnusson M, Stokowska A, Pekna M, Jin T. Deficiency of the complement component 3 but not factor B aggravates Staphylococcus aureus septic arthritis in mice. Infect Immun. 2016;84(4):930–9. https://doi.org/10.1128/IAI.01520-15.
Verdrengh M, Tarkowski A. Role of neutrophils in experimental septicemia and septic arthritis induced by Staphylococcus aureus. Infect Immun. 1997;65(7):2517–21.
Verdrengh M, Tarkowski A. Role of macrophages in Staphylococcus aureus-induced arthritis and sepsis. Arthritis Rheum. 2000;43(10):2276–82. https://doi.org/10.1002/1529-0131(200010)43:10<2276::AID-ANR15>3.0.CO;2-C.
Abdelnour A, Bremell T, Holmdahl R, Tarkowski A. Clonal expansion of T lymphocytes causes arthritis and mortality in mice infected with toxic shock syndrome toxin-1-producing staphylococci. Eur J Immunol. 1994;24(5):1161–6. https://doi.org/10.1002/eji.1830240523.
Kolata JB, Kuhbandner I, Link C, Normann N, Vu CH, Steil L, Weidenmaier C, Broker BM. The fall of a dogma? Unexpected high T-cell memory response to Staphylococcus aureus in humans. J Infect Dis. 2015;212(5):830–8. https://doi.org/10.1093/infdis/jiv128.
Bermejo-Martin JF, Andaluz-Ojeda D, Almansa R, Gandia F, Gomez-Herreras JI, Gomez-Sanchez E, Heredia-Rodriguez M, Eiros JM, Kelvin DJ, Tamayo E. Defining immunological dysfunction in sepsis: a requisite tool for precision medicine. J Inf Secur. 2016;72(5):525–36. https://doi.org/10.1016/j.jinf.2016.01.010.
Tebartz C, Horst SA, Sparwasser T, Huehn J, Beineke A, Peters G, Medina E. A major role for myeloid-derived suppressor cells and a minor role for regulatory T cells in immunosuppression during Staphylococcus aureus infection. J Immunol. 2015;194(3):1100–11. https://doi.org/10.4049/jimmunol.1400196.
Bennett CL, Christie J, Ramsdell F, Brunkow ME, Ferguson PJ, Whitesell L, Kelly TE, Saulsbury FT, Chance PF, Ochs HD. The immune dysregulation, polyendocrinopathy, enteropathy, X-linked syndrome (IPEX) is caused by mutations of FOXP3. Nat Genet. 2001;27(1):20–1. https://doi.org/10.1038/83713.
Buckner JH. Mechanisms of impaired regulation by CD4(+)CD25(+)FOXP3(+) regulatory T cells in human autoimmune diseases. Nat Rev Immunol. 2010;10(12):849–59. https://doi.org/10.1038/nri2889.
Kim J, Lahl K, Hori S, Loddenkemper C. Chaudhry a, deRoos P, Rudensky a, Sparwasser T: cutting edge: depletion of Foxp3+ cells leads to induction of autoimmunity by specific ablation of regulatory T cells in genetically targeted mice. J Immunol. 2009;183(12):7631–4. https://doi.org/10.4049/jimmunol.0804308.
Long SA, Buckner JH. CD4+FOXP3+ T regulatory cells in human autoimmunity: more than a numbers game. J Immunol. 2011;187(5):2061–6. https://doi.org/10.4049/jimmunol.1003224.
Sakaguchi S, Miyara M, Costantino CM, Hafler DA. FOXP3+ regulatory T cells in the human immune system. Nat Rev Immunol. 2010;10(7):490–500. https://doi.org/10.1038/nri2785.
Tanaka Y. Clinical immunity in bone and joints. J Bone Miner Metab. 2019;37(1):2–8. https://doi.org/10.1007/s00774-018-0965-5.
Barron L, Dooms H, Hoyer KK, Kuswanto W, Hofmann J, O’Gorman WE, Abbas AK. Cutting edge: mechanisms of IL-2-dependent maintenance of functional regulatory T cells. J Immunol. 2010;185(11):6426–30. https://doi.org/10.4049/jimmunol.0903940.
Abbas AK, Trotta ER, Simeonov D, Marson A, JA B. Revisiting IL-2: Biology and therapeutic prospects. Sci Immunol. 2018 pii: eaat1482;3:25. https://doi.org/10.1126/sciimmunol.aat1482.
Klatzmann D, Abbas AK. The promise of low-dose interleukin-2 therapy for autoimmune and inflammatory diseases. Nat Rev Immunol. 2015;15(5):283–94. https://doi.org/10.1038/nri3823.
Hartemann A, Bensimon G, Payan CA, Jacqueminet S, Bourron O, Nicolas N, Fonfrede M, Rosenzwajg M, Bernard C, Klatzmann D. Low-dose interleukin 2 in patients with type 1 diabetes: a phase 1/2 randomised, double-blind, placebo-controlled trial. Lancet Diabetes Endocrinol. 2013;1(4):295–305. https://doi.org/10.1016/S2213-8587(13)70113-X.
Koreth J, Matsuoka K, Kim HT, McDonough SM, Bindra B, Alyea EP 3rd, Armand P, Cutler C, Ho VT, Treister NS, et al. Interleukin-2 and regulatory T cells in graft-versus-host disease. N Engl J Med. 2011;365(22):2055–66. https://doi.org/10.1056/NEJMoa1108188.
Rosenzwajg M, Churlaud G, Mallone R, Six A, Derian N, Chaara W, Lorenzon R, Long SA, Buckner JH, Afonso G, et al. Low-dose interleukin-2 fosters a dose-dependent regulatory T cell tuned milieu in T1D patients. J Autoimmun. 2015;58:48–58. https://doi.org/10.1016/j.jaut.2015.01.001.
Saadoun D, Rosenzwajg M, Joly F, Six A, Carrat F, Thibault V, Sene D, Cacoub P, Klatzmann D. Regulatory T-cell responses to low-dose interleukin-2 in HCV-induced vasculitis. N Engl J Med. 2011;365(22):2067–77. https://doi.org/10.1056/NEJMoa1105143.
Rosenzwajg M, Lorenzon R, Cacoub P, Pham HP, Pitoiset F, El Soufi K, RI C, Bernard C, Aractingi S, Banneville B, et al. Immunological and clinical effects of low-dose interleukin-2 across 11 autoimmune diseases in a single, open clinical trial. Ann Rheum Dis. 2019;78(2):209–17. https://doi.org/10.1136/annrheumdis-2018-214229 Epub 2018 Nov 24.
Goldmann O, Medina E. Staphylococcus aureus strategies to evade the host acquired immune response. Int J Med Microbio. 2018;308(6):625–30. https://doi.org/10.1016/j.ijmm.2017.09.013 Epub 2017 Sep 15.
Bremell T, Lange S, Svensson L, Jennische E, Grondahl K, Tarkowski A. Outbreak of spontaneous staphylococcal arthritis and osteitis in mice. Arthritis Rheum. 1990;33:1739–44.
Jimenez V, Ayuso E, Mallol C, Agudo J, Casellas A, Obach M, Munoz S, Salavert A, Bosch F. In vivo genetic engineering of murine pancreatic beta cells mediated by single-stranded adeno-associated viral vectors of serotypes 6, 8 and 9. Diabetologia. 2011;54(5):1075–86. https://doi.org/10.1007/s00125-011-2070-3.
Ali A, Welin A, Schwarze JC, Svensson MN, Na M, Jarneborn A, Magnusson M, Mohammad M, Kwiecinski J, Josefsson E, et al. CTLA4 immunoglobulin but not anti-tumor necrosis factor therapy promotes staphylococcal septic arthritis in mice. J Infect Dis. 2015;212(8):1308–16. https://doi.org/10.1093/infdis/jiv212.
Grinberg-Bleyer Y, Baeyens A, You S, Elhage R, Fourcade G, Gregoire S, Cagnard N, Carpentier W, Tang Q, Bluestone J, et al. IL-2 reverses established type 1 diabetes in NOD mice by a local effect on pancreatic regulatory T cells. J Exp Med. 2010;207(9):1871–8. https://doi.org/10.1084/jem.20100209.
Fei Y, Wang W, Kwiecinski J, Josefsson E, Pullerits R, Jonsson IM, Magnusson M, Jin T. The combination of a tumor necrosis factor inhibitor and antibiotic alleviates staphylococcal arthritis and sepsis in mice. J Infect Dis. 2011;204(3):348–57. https://doi.org/10.1093/infdis/jir266.
Fatima F, Fei Y, Ali A, Mohammad M, Erlandsson MC, Bokarewa MI, Nawaz M, Valadi H, Na M, Jin T. Radiological features of experimental staphylococcal septic arthritis by micro computed tomography scan. PLoS One. 2017;12(2):e0171222. https://doi.org/10.1371/journal.pone.0171222.
Churlaud G, Jimenez V, Ruberte J, Amadoudji Zin M, Fourcade G, Gottrand G, Casana E, Lambrecht B, Bellier B, Piaggio E, et al. Sustained stimulation and expansion of Tregs by IL2 control autoimmunity without impairing immune responses to infection, vaccination and cancer. Clin Immunol. 2014;151(2):114–26. https://doi.org/10.1016/j.clim.2014.02.003.
Bremell T, Abdelnour A, Tarkowski A. Histopathological and serological progression of experimental Staphylococcus aureus arthritis. Infect Immun. 1992, Jul;60(7):2976–85.
Weston VC, Jones AC, Bradbury N, Fawthrop F, Doherty M. Clinical features and outcome of septic arthritis in a single UK Health District 1982-1991. Ann Rheum Dis. 1999;58(4):214–9.
Malek TR. The biology of interleukin-2. Annu Rev Immunol. 2008;26:453–79. https://doi.org/10.1146/annurev.immunol.26.021607.090357.
Nilsson N, Bremell T, Tarkowski A, Carlsten H. Protective role of NK1.1+ cells in experimental Staphylococcus aureus arthritis. Clin Exp Immunol. 1999;117(1):63–9.
Gjertsson I, Hultgren OH, Stenson M, Holmdahl R, Tarkowski A. Are B lymphocytes of importance in severe Staphylococcus aureus infections? Infect Immun. 2000;68(5):2431–4.
Hashizume M, Hayakawa N, Mihara M. IL-6 trans-signalling directly induces RANKL on fibroblast-like synovial cells and is involved in RANKL induction by TNF-alpha and IL-17. Rheumatology (Oxford). 2008;47(11):1635–40. https://doi.org/10.1093/rheumatology/ken363.
Henningsson L, Jirholt P, Lindholm C, Eneljung T, Silverpil E, Iwakura Y, Linden A, Gjertsson I. Interleukin-17A during local and systemic Staphylococcus aureus-induced arthritis in mice. Infect Immun. 2010;78(9):3783–90. https://doi.org/10.1128/IAI.00385-10.
Palmqvist P, Persson E, Conaway HH, Lerner UH. IL-6, leukemia inhibitory factor, and oncostatin M stimulate bone resorption and regulate the expression of receptor activator of NF-kappa B ligand, osteoprotegerin, and receptor activator of NF-kappa B in mouse calvariae. J Immunol. 2002;169(6):3353–62.
Zhang YH, Heulsmann A, Tondravi MM, Mukherjee A, Abu-Amer Y. Tumor necrosis factor-alpha (TNF) stimulates RANKL-induced osteoclastogenesis via coupling of TNF type 1 receptor and RANK signaling pathways. J Biol Chem. 2001;276(1):563–8. https://doi.org/10.1074/jbc.M008198200.
Gjertsson I, Hultgren OH, Tarkowski A. Interleukin-10 ameliorates the outcome of Staphylococcus aureus arthritis by promoting bacterial clearance. Clin Exp Immunol. 2002;130(3):409–14.
Bachert C, Holtappels G, Merabishvili M, Meyer T, Murr A, Zhang N, Van Crombruggen K, Gevaert E, Volker U, Broker BM, et al. Staphylococcus aureus controls interleukin-5 release in upper airway inflammation. J Proteome. 2018;180:53–60. https://doi.org/10.1016/j.jprot.2017.12.003.
Krishack PA, Louviere TJ, Decker TS, Kuzel TG, Greenberg JA, Camacho DF, Hrusch CL, Sperling AI, Verhoef PA. Protection against Staphylococcus aureus bacteremia-induced mortality depends on ILC2s and eosinophils. JCI Insight. 2019;4:6. https://doi.org/10.1172/jci.insight.124168.
He J, Zhang X, Wei Y, Sun X, Chen Y, Deng J, Jin Y, Gan Y, Hu X, Jia R, et al. Low-dose interleukin-2 treatment selectively modulates CD4(+) T cell subsets in patients with systemic lupus erythematosus. Nat Med. 2016;22(9):991–3. https://doi.org/10.1038/nm.4148.
von Spee-Mayer C, Siegert E, Abdirama D, Rose A, Klaus A, Alexander T, Enghard P, Sawitzki B, Hiepe F, Radbruch A, et al. Low-dose interleukin-2 selectively corrects regulatory T cell defects in patients with systemic lupus erythematosus. Ann Rheum Dis. 2016;75(7):1407–15. https://doi.org/10.1136/annrheumdis-2015-207776.
Matsuoka K, Koreth J, Kim HT, Bascug G, McDonough S, Kawano Y, Murase K, Cutler C, Ho VT, Alyea EP, et al. Low-dose interleukin-2 therapy restores regulatory T cell homeostasis in patients with chronic graft-versus-host disease. Sci Transl Med. 2013;5(179):179ra143. https://doi.org/10.1126/scitranslmed.3005265.
Dietrich T, Hucko T, Schneemann C, Neumann M, Menrad A, Willuda J, Atrott K, Stibenz D, Fleck E, Graf K, et al. Local delivery of IL-2 reduces atherosclerosis via expansion of regulatory T cells. Atherosclerosis. 2012;220(2):329–36. https://doi.org/10.1016/j.atherosclerosis.2011.09.050.
Dinh TN, Kyaw TS, Kanellakis P, To K, Tipping P, Toh BH, Bobik A, Agrotis A. Cytokine therapy with interleukin-2/anti-interleukin-2 monoclonal antibody complexes expands CD4+CD25+Foxp3+ regulatory T cells and attenuates development and progression of atherosclerosis. Circulation. 2012;126(10):1256–66. https://doi.org/10.1161/CIRCULATIONAHA.112.099044.
We thank Dr. Ing-Marie Jonsson, Karolina Thörn and Malin Erlandsson for excellent technical assistance.
This work was supported by grants from Göteborg Medical Society, Swedish Science Research Council, Reumatikerförbundet (The Swedish Rheumatism Association), King Gustav V Stiftelse, IngaBritt och Arne Lundbergs Stiftelse, Lundgrens Stiftelse, Amlövs Stiftelse, Swedish Medical Society and National Natural Science Foundation of China (grant 81460334 to Y. Fei). The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication. Open access funding provided by University of Gothenburg.
Ethics approval and consent to participate
Experiments were approved by the Animal Research Ethical Committee of Gothenburg and animal experimentation guidelines were followed strictly (38–2016).
Consent for publication
The authors declare that they have no competing interests.
