A multiplex PCR assay for the simultaneous detection of Taenia hydatigena, T. multiceps, T. pisiformis, and Dipylidium caninum infections



Taenia hydatigena, T. multiceps, T. pisiformis, and Dipylidium caninum are four common large and medium-sized tapeworms parasitizing the small intestine of dogs and other canids. These parasites cause serious impact on the health and development of livestock. However, there are, so far, no commercially available molecular diagnostic kits capable of simultaneously detecting all four parasites in dogs. The aim of the study was therefore to develop a multiplex PCR assay that will accurately detect all four cestode infections in one reaction.


Specific primers for a multiplex PCR were designed based on corresponding mitochondrial genome sequences, and its detection limit was assessed by serial dilutions of the genomic DNAs of tapeworms examined. Furthermore, field samples of dog feces were tested using the developed assay.


A multiplex polymerase chain reaction (PCR) assay was developed based on mitochondrial DNA (mtDNA) that accurately and simultaneously identify four cestode species in one reaction using specific fragment sizes of 592, 385, 283, and 190 bp for T. hydatigena, T. multiceps, T. pisiformis, and D. caninum, respectively. The lowest DNA concentration detected was 1 ng for T. hydatigena, T. multiceps and T. pisiformis, and 0.1 ng for D. caninum in a 25 μl reaction system. This assay offers high potential for the rapid detection of these four tapeworms in host feces simultaneously.


This study provides an efficient tool for the simultaneous detection of T. hydatigena, T. multiceps, T. pisiformis, and D. caninum. The assay will be potentially useful in epidemiological studies, diagnosis, and treatment of these four cestodes infections during prevention and control program.

Peer Review reports


Historically, cestodes are parasites that have caused serious damage to wild and domestic animals as well as human health since antiquity, resulting in economic losses by affecting food safety, livestock production, and serious public health consequences [1, 2]. Some cestode infection such as those caused by Echinococcus and Taenia are widespread and of significant public health concerns with challenges of prevention and control [3,4,5,6,7,8]. For example, a recent survey report from Tanzania has shown that the infection rates of cysticercosis in goats and sheep could reach as high as 61.1 and 42.2%, respectively [6]; the prevalence rates of alveolar echinococcosis (AE) cases of childhood as high as 12.1 (Tehetu) and 11.8% (Moba) in Dari County, China [9].

Taenia hydatigena, T. multiceps, T. pisiformis, and D. caninum are four common parasites that parasitize the small intestine of dogs with their larvae causing cysticercosis tenuicollis, coenurosis, cysticercosis pisiformis and dipylidiasis in intermediate hosts, respectively. Cats and foxes also can act as definitive hosts of D. caninum [10]. In some cases, these parasites have resulted in serious medical concerns in different parts of the world due to their zoonotic potential in humans [10, 15,16,17,18], while seriously impacting the health and development of animals/livestock [11,12,13,14]. For instance, a recent study indicated that 9.1% of D. caninum infection rates occurred in dogs in Europe [19] and 6.3% of red foxes were found to be infected with T. multiceps [20]; the overall infection rates for T. hydatigena were 61.1% in goats and 42.2% in sheep in a Malambo (a village) slaughter slab in Tanzania [6]; and 8.3% T. hydatigena positive dogs and foxes in Australia [21]. Therefore, specific and effective detection methods are highly crucial for the identification, prevention and control of these parasitic infections [22].

So far, there are no commercially available molecular diagnostic kits for the simultaneous detection of multiple infections by all four cestodes in a host. Although enzyme-linked immunosorbent assay (ELISA) is being used for the diagnosis of T. hydatigena, T. multiceps, and T. pisiformis infections, challenges of misdiagnosis as a result of false-positive and false-negative remains a major issue [23,24,25]. The multiplex PCR assay permits the simultaneous and accurate detection of multiple parasites [26, 27], and the mitochondrial (mt) DNAs are one of the important multiplex PCR target molecules owing to their particular characteristics of nucleotide variation and high polymorphism [28, 29]. Consequently, for the first time, we developed a multiplex PCR assay to detect and discriminate T. hydatigena, T. multiceps, T. pisiformis and D. caninum infections, which will be important for the epidemiology, diagnoses, and control of cestode infections.


Origin of specimens and DNA extraction

Samples of adult parasites and dog feces were obtained from the Animal Center of State Key Laboratory of Veterinary Etiological Biology, Lanzhou Veterinary Research Institute, CAAS, People’s Republic of China, and stored at − 80 °C until DNA extraction. Genomic DNAs were extracted from adult parasites using DNeasy® Blood and Tissue Kit (QIAGEN, Hilden, Germany) and dog feces (180–220 mg) using QIAamp® DNA Stool Mini Kit (QIAGEN, Hilden, Germany), DNA elution was achieved with 20 μl of elution buffer. DNA concentration and purity were determined using a spectrophotometer (TECAN, Tecan’ Infinite® 200 PRO NanoQuant) and stored at − 20 °C until use [28].

Primer design

Based on the alignment of the mtDNAs of T. hydatigena, T. multiceps, T. pisiformis and D. caninum with online tool ClustalW (, multiplex PCR primers were designed by targeting conserved sequences flanking variable regions with the help of Oligo primer software. Each set of primer pairs were checked for specificity using the NCBI database online tool Nucleotide BLAST ( Details of primer pairs are presented in Table 1.

Table 1 Forward and reverse primers used in the multiplex PCR for Taenia hydatigena, T. multiceps, T. pisiformis, and Dipylidium caninum

Multiplex PCR assay

Multiplex PCR reaction parameters were optimized and the reaction was carried out in a final reaction volume of 25 μl containing 0.1 μg genomic DNA, 4 μl optimal primers with each primer (10 μM) contributing 0.5 μl (Th-F/R for T. hydatigena, Tm-F/R for T. multiceps, Tp-F/R for T. pisiformis and Dc-F/R for D. caninum), and 12.5 μl Premix Taq™ (5 U/ml) (Takara Bio, Japan). Fragments were amplified using the following optimized thermal cycling conditions: 95 °C/5 min for initial denaturation; 30 cycles of 94 °C/30 s for denaturation, 55 °C/30 s for annealing, 72 °C/40 s for extension; 72 °C/10 min for final extension; and amplification products were stored at 4 °C until they were visualized.

Identification of PCR products

PCR products (8 μl) were visualized by electrophoresis in 2.0% (w/v) agarose gels that were pre-stained with ethidium bromide (EB) and viewed under UV light (BIO-RAD, Molecular Imager® chemiDoc™ XRS+ with image lab™ software). The electrophoretic buffer solution was 1 × TAE buffer [30].

Specificity and limit of the assay

The specificity of the multiplex PCR was verified using genomic DNAs of other common tapeworms (E. canadendsis (G7), E. granulosus, E. multilocularis and E. shiquicus) inhabiting the small intestine of canids. Furthermore, the lowest detected DNA was verified using serial dilutions of genomic DNA of each parasite in nuclease-free water, and the final DNA concentration for each parasite in a 25 μl reaction system was 10, 1.0, 1.0 × 10− 1, 1.0 × 10− 2, 1.0 × 10− 3, 1.0 × 10− 4 ng, respectively.

Field application of the multiplex PCR

The usefulness of the newly developed assay was verified using genomic DNAs from dog feces as templates. The multiplex PCR assay was carried out in a final reaction mixture of 25 μl, containing 2 μl templates, 4 μl optimal primers with 0.5 μl from each forward and reverse primer (Th-F/R for T. hydatigena, Tm-F/R for T. multiceps, Tp-F/R for T. pisiformis and Dc-F/R for D. caninum), and 12.5 μl Premix Taq™ (Takara Bio, Japan), followed by thermal cycling conditions and visualization process mentioned above.



According to the location of designed primers, the expected size of multiplex PCR amplicons for each species was 592 bp (T. hydatigena), 385 bp (T. multiceps), 283 bp (T. pisiformis) and 190 bp (D. caninum), respectively. As expected, all PCR products were of exact band sizes, and when DNA templates from other tapeworms were involved in the multiplex PCR assay, no PCR products were produced (Fig. 1).

Fig. 1

Development of the multiplex PCR specific assay for four pathogenic dogs parasites. Lane 1–8: The products of PCR amplification using the genomes of Taenia hydatigena, T. multiceps, T. pisiformis, Dipylidium caninum, Echinococcus canadensis, E. granulosus, E. multilocularis and E. shiquicus as templates, respectively; Lane 9: negative control; Lane M: 2000 bp DNA standard marker

The multiplex PCR products of mixed templates of the four parasites are shown in Fig. 2. The products containing two DNA bands (592 and 385 bp, 592 and 283 bp, 592 and 190 bp, 385 and 283 bp, 385 and 190 bp, 283 and 190 bp) were amplified with mixed DNA templates of T. hydatigena and T. multiceps, T. hydatigena and T. pisiformis, T. hydatigena and D. caninum, T. multiceps and T. pisiformis, T. multiceps and D. caninum, T. pisiformis and D. caninum, respectively. Three DNA bands (592, 385 and 283 bp; 592, 385 and 190 bp; 385, 283 and 190 bp) were amplified with mixed DNA templates of T. hydatigena, T. multiceps and T. pisiformis; T. hydatigena, T. multiceps and D. caninum; T. multiceps, T. pisiformis and D. caninum. Four DNA bands (592, 385, 283 and 190 bp) were amplified with mixed DNA templates of T. hydatigena, T. multiceps, T. pisiformis and D. caninum (Fig. 2).

Fig. 2

The specificity analysis of the 4 sets of primers using various combined target templates. Lanes 1–4: PCR amplification result of Taenia hydatigena, T. multiceps, T. pisiformis and Dipylidium caninum as single template, respectively; Lanes 5–10: PCR amplification result of Th + Tm, Th + Tp, Th + Dc, Tm + Tp, Tm + Dc and Tp + Dc as dual templates, respectively; Lanes 11–14: PCR amplification result of Th + Tm + Tp, Th + Tm + Dc, Th + Tp + Dc and Tm + Tp + Dc as triple templates, respectively; Lane 15: PCR amplification result of Th + Tm + Tp + Dc as quadruple templates; Lane 16: negative control; Lane M: 2000 bp DNA standard marker

Detection minimum limit

The minimum detection limit was determined by different DNA gradients with 10, 1.0, 1.0 × 10− 1, 1.0 × 10− 2, 1.0 × 10− 3, 1.0 × 10− 4 ng, respectively. The results indicated that the lowest limit for the DNA detection was 1 ng for T. hydatigena, T. multiceps or T. pisiformis and 0.1 ng for D. caninum, respectively (Fig. 3).

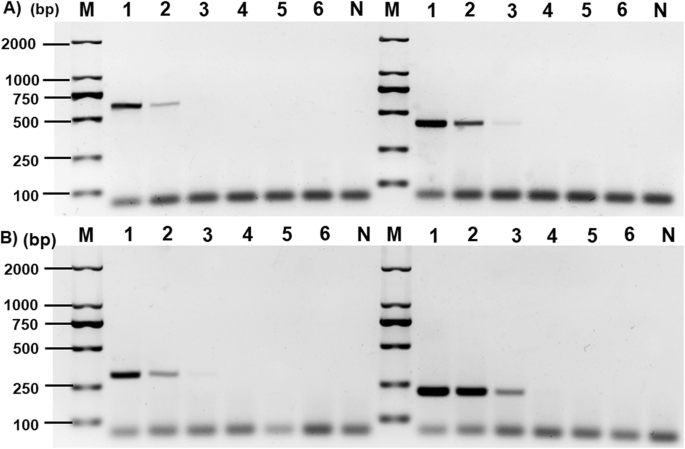

Fig. 3

The multiplex PCR sensitivity assay for four pathogenic dogs parasites. Lanes 1–6: the concentrations of serial dilutions differ templets are 10, 1.0, 1.0 × 10− 1, 1.0 × 10− 2, 1.0 × 10− 3, 1.0 × 10− 4 ng, respectively; Lane M: 2000 bp DNA standard marker; Lane N is negative control. a): This picture showing the amplicons of 592 and 385 bp produced in a 25 μl PCR system with differ DNA concentrations of Taenia hydatigena (left) and T. multiceps (right) templates, respectively; b): This Picture showing the amplicons of 283 and 190 bp produced in a 25 μl PCR system with differ DAN concentrations of T. pisiformis (left) and Dipylidium caninum (right) templates, respectively

Evaluation of field samples

In the field application of this multiplex PCR assay, a total of 25 dog feces were tested. One sample tested positive with a fragment size of about 385 bp identified as T. multiceps infection (Fig. 4).

Fig. 4

The PCR results of DNA sample from dog feces. a and b represent the results of two sets of PCR experiments for dog feces. Lane M: 2000 bp DNA standard marker; Lanes 1–12: DNA sample of dog feces; Lane P: Positive control with genomic DNA from adult parasites of representative tapeworms from dogs; Lane N: negative control


Until now, due to the lack of accurate and simultaneous detection methods in a single reaction for these four cestode parasites (T. hydatigena, T. multiceps, T. pisiformis and D. caninum), it is noteworthy that traditional detection and diagnosis mostly relies on post-mortem examination by experts, which is laborious and time-consuming [13, 31] coupled with the challenge of misdiagnosis [10, 32]. Although the diagnosis can also be achieved with immunodiagnostic assays such as antigen enzyme-linked immunosorbent assay (Ag-ELISA), cross-reaction with other Taenia spp. sharing similar antigenic properties has also been a challenge [23]. In this study, we developed a multiplex assay which is sensitive to discriminate and diagnose four cestode parasites simultaneously in a single reaction compare to the conventional PCR method (requiring only a pair of primers in a reaction system). The specificity analysis showed that no cross-reactivity was observed with other tapeworms inhabiting the small intestine as well as with each other, and the minimum detected DNA ranged from 0.1 to 1 ng, low enough to produce results in case of low DNA yield.

Two obligate mammalian hosts are essential for the transmission of some cestode parasites including T. hydatigena, T. multiceps and T. pisiformis, which is dependent on prey-predator associations of intermediate hosts (including humans) and definitive hosts [33]. Infections by these parasites often lead to serious damage in intermediate hosts than in definitive hosts where infections are subclinical [34,35,36]. Therefore, effective control measures are often targeted at the definitive hosts that are capable of transmitting and maintaining the infection within an environment. Similarly, this is also the case for Echinococcus spp. infections which are commonly observed in dogs and other canids in China [37, 38]. However, the recent establishment of a multiplex PCR method for the detection of multiple infections with E. granulosus sensu stricto, E. multilocularis and E. shiquicus [28], has provided a rapid, sensitive, and cost-effective method in discriminating these infections. Also, the establishment of a detection method that is accurate and inexpensive for the discrimination of T. hydatigena, T. multiceps, T. pisiformis and D. caninum infections in definitive hosts is a step further in achieving prevention and control.

Mitochondrial genes are amongst the most popular molecular markers that have been widely used in molecular ecology, population genetics, and diagnoses of parasitic organisms [26, 39]. Therefore, we explored the mt genes as molecular markers to develop a multiplex PCR system for the synchronous detection of the four tapeworm infections. However, some challenges were confronted with sample collection and fecal DNA extraction. For example, poor DNA yield, which could be due to a number of inhibitors and the complex presence of other organisms in the feces, the of feces (fresh or old) and the uneven distribution of parasite eggs.

Nonetheless, with the continuous advancement in biomedical/life sciences, alternative molecular markers such as microRNAs (miRNAs) [40], microsatellite DNAs [41] and improved DNA extraction methods may provide further opportunity for the development of more detection and diagnostic methods for epidemiological investigations.

We admit that the current study had a limitation of appropriately assessing the sensitivity of this assay. However, we recommended that, prior to DNA extraction, conventional flotation/sedimentation technique should be used to concentrate cestode eggs from feces in order to increase the sensitivity. Also, regarding the presence of other cestodes of canids such as T. ovis, T crassiceps, T. serialis and T. gaigeri which were not assessed in this study, application of this test will be limited to areas where the four tapeworms T. hydatigena, T. multiceps, T. pisiformis and D. caninum are prevalent. Nevertheless, the design principles or skills of multiplex PCR primers and methods in this study and others can be followed or adopted in other areas where other taenids co-exist in canids. Moreover, standard parasitological methods should be used simultaneously to differentiate the worms.


The multiplex PCR assay is an efficient tool for the detection and simultaneous diagnosis of T. hydatigena, T. multiceps, T. pisiformis, and D. caninum tapeworms from DNA sample, the lowest limit of detectable DNA was 1 ng for T. hydatigena, T. multiceps, and T. pisiformis, and 0.1 ng for D. caninum, respectively. Consequently, this assay will be potentially useful in epidemiological studies, diagnosis, and treatment of taeniasis or cestode infections during prevention and control program.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.



Enzyme-linked immunosorbent assay

mt :

mitochondrial; bp: base pair


Polymerase chain reaction


  1. 1.

    Hoberg EP. Taenia tapeworms: their biology, evolution and socioeconomic significance. Microbes Infect. 2002;4(8):859–66.

    Article  Google Scholar

  2. 2.

    Borji H, Azizzadeh M, Kamelli M. A retrospective study of abattoir condemnation due to parasitic infections: economic importance in Ahwaz, southwestern Iran. J Parasitol. 2012;98(5):954–7.

    Article  Google Scholar

  3. 3.

    Khademvatan S, Majidiani H, Foroutan M, Hazrati Tappeh K, Aryamand S, Khalkhali HR. Echinococcus granulosus genotypes in Iran: a systematic review. J Helminthol. 2019;93(2):131–8.

    CAS  Article  Google Scholar

  4. 4.

    Oksanen A, Siles-Lucas M, cKaramon J, Possenti A, Conraths FJ, Romig T, Wysocki P, Mannocci A, Mipatrini D, La Torre G, Boufana B, Casulli A. The geographical distribution and prevalence of Echinococcus multilocularis in animals in the European Union and adjacent countries: a systematic review and meta-analysis. Parasit Vectors. 2016; 9(1):519.

  5. 5.

    Openshaw JJ, Medina A, Felt SA, Li T, Huan Z, Rozelle S, Luby SP. Prevalence and risk factors for Taenia solium cysticercosis in school-aged children: a school based study in western Sichuan, People's Republic of China. PLoS Negl Trop Dis. 2018;12(5):e0006465.

    Article  Google Scholar

  6. 6.

    Miran MB, Kasuku AA, Swai ES. Prevalence of echinococcosis and Taenia hydatigena cysticercosis in slaughtered small ruminants at the livestock-wildlife interface areas of Ngorongoro. Tanzania Vet World. 2017;10(4):411–7.

    CAS  Article  Google Scholar

  7. 7.

    Villeneuve A, Polley L, Jenkins E, Schurer J, Gilleard J, Kutz S, Conboy G, Benoit D, Seewald W, Gagńe F. Parasite prevalence in fecal samples from shelter dogs and cats across the Canadian provinces. Parasit Vectors. 2015;8:281.

    Article  Google Scholar

  8. 8.

    Flisser A. Eliminating cystic echinococcosis in the 21st century. Lancet Infect Dis. 2018;18(7):703–4.

    Article  Google Scholar

  9. 9.

    Han XM, Cai QG, Wang W, Wang H, Zhang Q, Wang YS. Childhood suffering: hyper endemic echinococcosis in Qinghai-Tibetan primary school students. China Infect Dis Poverty. 2018;7(1):71.

    Article  Google Scholar

  10. 10.

    Jiang P, Zhang X, Liu RD, Wang ZQ, Cui J. A human case of zoonotic dog tapeworm, Dipylidium caninum (Eucestoda: Dilepidiidae), in China. Korean J Parasitol. 2017;55(1):61–4.

    Article  Google Scholar

  11. 11.

    Scala A, Pipia AP, Dore F, Sanna G, Tamponi C, Marrosu R, Bandino E, Carmona C, Boufana B, Varcasia A. Epidemiological updates and economic losses due to Taenia hydatigena in sheep from Sardinia. Italy Parasitol Res. 2015;114(8):3137–43.

    CAS  Article  Google Scholar

  12. 12.

    Hallal-Calleros C, Morales-Montor J, Orihuela-Trujillo A, Togno-Peirce C, Murcia-Mejia C, Bielli A, Hoffman KL, Flores-Perez FI. Taenia pisiformis cysticercosis induces decreased prolificacy and increased progesterone levels in rabbits. Vet Parasitol. 2016;229:50–3.

    CAS  Article  Google Scholar

  13. 13.

    Saini VK, Gupta S, Kasondra A, Rakesh RL, Latchumikanthan A. Diagnosis and therapeutic management of Dipylidium caninum in dogs: a case report. J Parasit Dis. 2016;40(4):1426–8.

    Article  Google Scholar

  14. 14.

    Amer S, ElKhatam A, Fukuda Y, Bakr LI, Zidan S, Elsify A, Mohamed MA, Tada C, Nakai Y. Prevalence and identity of Taenia multiceps cysts "Coenurus cerebralis" in sheep in Egypt. Acta Trop. 2017;176:270–6.

    Article  Google Scholar

  15. 15.

    Cabello RR, Ruiz AC, Feregrino RR, Romero LC, Feregrino RR, Zavala JT. Dipylidium caninum infection. BMJ Case Rep. 2011;2011.

  16. 16.

    Tsumura N, Koga H, Hidaka H, Mukai F, Ikenaga M, Otsu Y, Masunaga K, Nagai K, Yoneda Y, Fukuma T, Ishimoto K. Dipylidium caninum infection in an infant. Kansenshogaku Zasshi. 2007;81(4):456–8.

    Article  Google Scholar

  17. 17.

    Benifla M, Barrelly R, Shelef I, El-On J, Cohen A, Cagnano E. Huge hemispheric intraparenchymal cyst caused by Taenia multiceps in a child. Case report J Neurosurg. 2007;107(Suppl 6):511–4.

    PubMed  Google Scholar

  18. 18.

    El-On J, Shelef I, Cagnano E, Benifla M. Taenia multiceps: a rare human cestode infection in Israel. Vet Ital. 2008;44(4):621–31.

    PubMed  Google Scholar

  19. 19.

    Beugnet F, Labuschagne M, Fourie J, Jacques G, Farkas R, Cozma V, Halos L, Hellmann K, Knaus M, Rehbein S. Occurrence of Dipylidium caninum in fleas from client-owned cats and dogs in Europe using a new PCR detection assay. Vet Parasitol. 2014;205(1–2):300–6.

    CAS  Article  Google Scholar

  20. 20.

    Varcasia A, Tamponi C, Tosciri G, Pipia AP, Dore F, Schuster RK, Kandil OM, Manunta ML, Scala A. Is the red fox (Vulpes vulpes) a competent definitive host for Taenia multiceps? Parasit Vectors. 2015;8(1):491.

    Article  Google Scholar

  21. 21.

    Jenkins DJ, Urwin NA, Williams TM, Mitchell KL, Lievaart JJ, Armua-Fernandez MT. Red foxes (Vulpes vulpes) and wild dogs (dingoes (Canis lupus dingo) and dingo/domestic dog hybrids), as sylvatic hosts for Australian Taenia hydatigena and Taenia ovis. Int J Parasitol Parasites Wildl. 2014;3(2):75–80.

    Article  Google Scholar

  22. 22.

    Kollataj W, Milczak A, Kollataj B, Karwat ID, Sygit M, Sygit K. Risk factors for the spread of parasitic zoonoses among dog owners and their families in rural areas. Ann Agric Environ Med. 2012;19(1):79–84.

    PubMed  Google Scholar

  23. 23.

    Wang Y, Nie H, Gu X, Wang T, Huang X, Chen L, Lai W, Peng X, Yang G. An ELISA using recombinant TmHSP70 for the diagnosis of Taenia multiceps infections in goats. Vet Parasitol. 2015;212(3–4):469–72.

    CAS  Article  Google Scholar

  24. 24.

    Chen L, Yang D, Gu X, Peng X, Yang G. Evaluation of a novel dot-ELISA assay utilizing a recombinant protein for the effective diagnosis of Taenia pisiformis larval infections. Vet Parasitol. 2014;204(3–4):214–20.

    CAS  Article  Google Scholar

  25. 25.

    Kajugu PE, Hanna RE, Edgar HW, Forster FI, Malone FE, Brennan GP, Fairweather I. Specificity of a coproantigen ELISA test for fasciolosis: lack of cross-reactivity with Paramphistomum cervi and Taenia hydatigena. Vet Rec. 2012;171(20):502.

    Article  Google Scholar

  26. 26.

    Jia WZ, Yan HB, Guo AJ, Zhu XQ, Wang YC, Shi WG, Chen HT, Zhan F, Zhang SH, Fu BQ, Littlewood DT, Cai XP. Complete mitochondrial genomes of Taenia multiceps T hydatigena and T pisiformis: additional molecular markers for a tapeworm genus of human and animal health significance. BMC Genomics. 2010;11:447.

    Article  Google Scholar

  27. 27.

    Curole JP, Kocher TD. Mitogenomics: digging deeper with complete mitochondrial genomes. Trends Ecol Evol. 1999;14(10):394–8.

    CAS  Article  Google Scholar

  28. 28.

    Liu CN, Lou ZZ, Li L, Yan HB, Blair D, Lei MT, Cai JZ, Fan YL, Li JQ, Fu BQ, Yang YR, DP MM, Jia WZ. Discrimination between E. granulosus sensu stricto, E. multilocularis and E. shiquicus Using a Multiplex PCR Assay. PLoS Negl Trop Dis. 2015;9(9):e0004084.

    Article  Google Scholar

  29. 29.

    Henegariu O, Heerema NA, Dlouhy SR, Vance GH, Vogt PH. Multiplex PCR: critical parameters and step-by-step protocol. Biotechniques. 1997;23(3):504–11.

    CAS  Article  Google Scholar

  30. 30.

    Zimm BH, Levene SD. Problems and prospects in the theory of gel electrophoresis of DNA. Q Rev Biophys. 1992;25(2):171–204.

    CAS  Article  Google Scholar

  31. 31.

    Braae UC, Kabululu M, Normark ME, Nejsum P, Ngowi HA, Johansen MV. Taenia hydatigena cysticercosis in slaughtered pigs, goats, and sheep in Tanzania. Trop Anim Health Prod. 2015;47(8):1523–30.

    Article  Google Scholar

  32. 32.

    Samkari A, Kiska DL, Riddell SW, Wilson K, Weiner LB, Domachowske JB. Dipylidium caninum mimicking recurrent Enterobius vermicularis (pinworm) infection. Clin Pediatr (Phila). 2008;47(4):397–9.

    Article  Google Scholar

  33. 33.

    Hoberg EP. Phylogeny of Taenia: species definitions and origins of human parasites. Parasitol Int. 2006;55(Suppl):S23–30.

    Article  Google Scholar

  34. 34.

    Romig T, Deplazes P, Jenkins D, Giraudoux P, Massolo A, Craig PS, Wassermann M, Takahashi K, de la Rue M. Ecology and life cycle patterns of Echinococcus species. Adv Parasitol. 2017;95:213–314.

    CAS  Article  Google Scholar

  35. 35.

    Laranjo-Gonzalez M, Devleesschauwer B, Trevisan C, Allepuz A, Sotiraki S, Abraham A, Afonso MB, Blocher J, Cardoso L, Correia da Costa JM, Dorny P, Gabriel S, Gomes J, Gomez-Morales MA, Jokelainen P, Kaminski M, Krt B, Magnussen P, Robertson LJ, Schmidt V, Schmutzhard E, GSA S, Soba B, Stensvold CR, Staric J, Troell K, Rataj AV, Vieira-Pinto M, Vilhena M, Wardrop NA, Winkler AS, Dermauw V. Epidemiology of taeniosis/cysticercosis in Europe, a systematic review: Western Europe. Parasit Vectors. 2017;10(1):349.

    Article  Google Scholar

  36. 36.

    Moro P, Schantz PM. Echinococcosis: a review. Int J Infect Dis. 2009;13(2):125–33.

    CAS  Article  Google Scholar

  37. 37.

    Hao L, Yang A, Yuan D, Guo L, Hou W, Mo Q, Lu Z, Nie C. Detection of Echinococcus multilocularis in domestic dogs of Shiqu County in the summer herding. Parasitol Res. 2018;117(6):1965–8.

    Article  Google Scholar

  38. 38.

    Boufana B, Qiu J, Chen X, Budke CM, Campos-Ponce M, Craig PS. First report of Echinococcus shiquicus in dogs from eastern Qinghai-Tibet plateau region. China Acta Trop. 2013;127(1):21–4.

    Article  Google Scholar

  39. 39.

    Yanagida T, Lavikainen A, Hoberg EP, Konyaev S, Ito A, Sato MO, Zaikov VA, Beckmen K, Nakao M. Specific status of Echinococcus canadensis (Cestoda: Taeniidae) inferred from nuclear and mitochondrial gene sequences. Int J Parasitol. 2017;47(14):971–9.

    CAS  Article  Google Scholar

  40. 40.

    Zheng Y. High-throughput identification of miRNAs of Taenia ovis, a cestode threatening sheep industry. Infect Genet Evol. 2017;51:98–100.

    CAS  Article  Google Scholar

  41. 41.

    Shamsaddini S, Mohammadi MA, Mirbadie SR, Rostami S, Dehghani M, Sadeghi B, Harandi MF. A conventional PCR for differentiating common taeniid species of dogs based on in silico microsatellite analysis. Rev Inst Med Trop Sao Paulo. 2017;59.

Download references


We are grateful to Gang Yao and Wen-Jun Tian for their assistance sample collection.


This study received funding support from the National Key Research and Development Program of China (2017YFD0501301), National Key Basic Research Program (973 Program) of China (2015CB150300), the Gansu Provincial Key Science and Technology Projects (1203NKDA039), Central Public-interest Scientific Institution Basal Research Fund (1610312017001, 1610312016012), and the Science Fund for Creative Research Groups of Gansu Province (1210RJIA006). The funding bodies had no role in the design of the study, sample collection, analysis and interpretation of data and in writing the manuscript.

Author information




All authors contributed to the samples collection. WZJ, HBY, LL, and BQF designed the study. GQZ, JAO, YTW, WHL, and NZZ assisted to complete the experiment. GQZ undertook data analysis and wrote the manuscript. WZJ and JAO provided comments and modified the manuscript. All authors read and approved the final version of the manuscript.

Corresponding authors

Correspondence to Hong-Bin Yan or Wan-Zhong Jia.

Ethics declarations

Ethics approval and consent to participate

Dogs used in this study were handled in strict accordance with good animal practice according to the animal ethics procedures and guidelines for animal husbandry and wildlife protection. The study was approved by the Animal Ethics Committee of Lanzhou Veterinary Research Institute, Chinese Academy of Agricultural Sciences (No. LVRIAEC2012–007).

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (, which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver ( applies to the data made available in this article, unless otherwise stated.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Zhu, G., Li, L., Ohiolei, J.A. et al. A multiplex PCR assay for the simultaneous detection of Taenia hydatigena, T. multiceps, T. pisiformis, and Dipylidium caninum infections. BMC Infect Dis 19, 854 (2019).
