The prevalence of liver abnormalities in humans due to Schistosoma japonicum by ultrasonography in China: a meta-analysis



Schistosoma japonicum was once one of the most severe parasitic diseases in China. After 70 years of national schistosomiasis control programmes, the prevalence and associated morbidity of the infection have been reduced to a much lower level. However, due to the low sensitivity of the current detection approaches, many minor infections in humans could not be identified and ultimately develop chronic injuries with liver abnormalities, a specific ‘network’ echogenic pattern under ultrasonography. Therefore, as more people take part in physical examinations, we performed this meta-analysis to estimate the overall prevalence of schistosomiasis-associated liver abnormalities in China.


The publications were searched systematically across five electronic databases. All eligible studies were assessed with quality evaluation forms. Heterogeneity of studies was determined using the I2 and Q tests. A random effects or fixed effects model was employed based on heterogeneity results. The pooled prevalence and its 95% confidence intervals were calculated with the Freeman-Tukey double arcsine transformation. All analyses were conducted using R with the “meta” package. The protocol registration number was CRD42021232982.


A total of 19 relevant articles, including 21 studies, were included. The average score of study quality was 6.4 (total score 7), indicating high quality of all included studies. A total of 268, 247 persons were included, and 43, 917 persons were diagnosed with schistosomiasis liver abnormalities by ultrasonography. High degrees of heterogeneity existed among all studies or within subgroups. The overall pooled prevalence was 18.64% (95% CI: 11.88–26.50%). The estimate significantly increased over time and varied among provinces, with the highest in Shanghai and the lowest in Sichuan. The estimate in people aged 60 years or older was significantly higher than that in people of all ages. No significant difference was seen when based on study areas (urban or rural areas) or gender.


The long-term burden of schistosomiasis in China remains large, as nearly one-fifth of the examined persons were diagnosed with schistosomiasis liver abnormalities. The pooled prevalence was associated with regions or age groups. Such may have a high reference value in the exact calculation of the disease burden and can be helpful for policy makers in prioritizing public health.

Peer Review reports


Schistosomiasis is primarily endemic in tropical and subtropical areas and is typically associated with poor environmental and sanitary conditions [1, 2]. This infectious disease affects nearly 240 million people worldwide, with more than 700 million people at risk of infection. Infections occur when people encounter freshwater contaminated by schistosome cercariae. The cercariae penetrate skin and invade the human body. They live as adult worms in the veins draining the urinary tract (S. haematobium) or intestine (S. mansoni, S. japonicum), with male and females pairing up. A lot of eggs produced by schistosome females accumulate in tissues, which causes great damage to the body [1, 3]. Infected individuals with acute or chronic morbidity manifest as two types: urinary schistosomiasis caused by Schistosoma haematobium and intestinal schistosomiasis mainly caused by S. japonicum and S. mansoni. For intestinal schistosomiasis, as schistosome eggs are transported to the liver through the mesenteric circulation, granulomas and portal fibrosis in the liver will develop due to the host's immune response, thus leading to schistosome-associated liver abnormalities [4, 5]. With an estimate of at least 236.6 million people requiring preventive treatment in 2019 (, schistosomiasis would be a major cause of liver fibrosis in areas where schistosomiasis is endemic [6,7,8].

S. japonicum was once one of the most severe parasitic diseases in China. After nearly 70 years of multistage comprehensive prevention and control, the prevalence and associated morbidity of the infection has been reduced significantly in many endemic areas [9, 10]. However, the burden caused by chronic damage to the disease is still huge. In 2017, for example, the disability-adjusted life years (DALYs) of patients with advanced schistosomiasis in China were 15, 679.02 person-years, accounting for 73.24% of the total disease burden [11]. As quite a number of minor infections in humans could not be detected, coupled with clinical unawareness [12], the disease burden in China might have been greatly underestimated. This is typically evident from the official report [13], in which approximately one thousand cases of advanced schistosomiasis have been reported each year.

PZQ treatment has recently been shown to induce partial or complete regression of periportal fibrosis in early fibrosis [14,15,16,17,18], indicating that the morbidity of schistosomiasis-related liver abnormalities could be preventable through early treatment. At present, ultrasound technology, due to its fast, accurate, and noninvasive characteristics in physical examination, has been widely used in all clinical practice. Schistosomiasis-related liver abnormalities show a specific ‘network’ echogenic pattern, significantly different from other liver diseases such as cirrhosis [18, 19]. With socioeconomic development in China, an increasing number of people take part in annual or regular physical examinations, in which ultrasound techniques have been routinely used. Therefore, we performed this meta-analysis to estimate the overall prevalence of schistosomiasis liver abnormalities in China when the country has been moving onto disease elimination and to investigate any differences among regions or populations. The results from this study would, apart from prioritizing public health improvement on the people affected, be helpful in accurately estimating the long-term burden of the disease.


Search strategy and selection criteria

This meta-analysis was based on the Preferred Reporting Items for Systematic Review and Meta-Analyses (PRISMA) guidelines [20] (Additional file 1) with its protocol registration number (No. CRD42021232982). The index of interest for this article is the overall prevalence of schistosomiasis liver abnormalities in humans in China. Therefore, we searched all relevant documents published before February 1, 2021. The selection of publications was performed systematically in the five electronic databases CNKI, VIP, and Wanfang (in Chinese) and PubMed and Web of Science (in English). The terms we used and combined in the search included “ribenxuexichong and/or xuexichongganbing and tijian and chaoshengjiancha” (pinyin in Chinese) and “Schistosoma japonicum and schistosomiasis and liver abnormalities and ultrasonography” (in English). In addition, we manually searched for more relevant literature in the references of the retrieved articles.

Two independent researchers (GM and MS) extracted the data into an Excel form. Any differences in the extracted data were discussed with a third researcher (YQ) until a consensus was reached. The preliminary review of the title and abstract of the retrieved documents were conducted by GM and MS. The duplicated and the records with the abstract only were removed. Eligible publications were screened by full text articles reading. The inclusion criteria for all articles were as follows: (1) conducted in epidemic areas of China; (2) about S. japonicum-associated liver abnormalities; (3) diagnosed by ultrasonography with the specific image of grade II or above [19, 21], a specific ‘network’ echogenic pattern; (4) prevalence or numbers of investigated and inflicted persons reported; (5) populations participating in a physical examination; and (6) including data on the following outcome of interest (if possible): time performed, location and age groups of subjects. There were no restrictions on age and region. All studies conducted outside endemic areas of China, involving physical examination without using ultrasonography, and reporting outcomings other than liver abnormalities were excluded.

Data extraction and quality appraisal

For eligible articles, the data to be extracted included the following: the first author, year of articles published, year of research performed, regions, study setting (urban or rural areas), target populations (gender and age), the total number of people who participated in the physical examination and the number of people with schistosomiasis liver abnormalities.

All eligible articles were evaluated for quality. To be in line with this research, our evaluation tool was modified based on the Joanna Briggs Institute Prevalence Critical Appraisal Tool [22, 23]. All selected studies were assessed using seven quality control items (below), and for each item, two options were given, i.e., yes and no. "Yes" means that the standard was met and a score of 1 point was given; otherwise, "No" and 0 points were given. The score of a study ranged from 0 to 7 points. A study with 3 points or less was considered low quality, 4 to 5 points medium quality, and 6 to 7 points high quality. Only articles with medium and high quality were included in this meta-analysis. Two evaluators independently scored the quality of each included article. The seven quality control items used were:

  1. A.

    representativeness of the sample to the target population.

  2. B.

    appropriateness of the method used to sample study participants.

  3. C.

    adequateness of sample size.

  4. D.

    description of study subjects and settings.

  5. E.

    validity of the method (ultrasound diagnostic technique) used.

  6. F.

    clarity of prevalence data or data can be calculated for all participants.

  7. G.

    adequateness of prevalence rate.

Data analysis

All the extracted data were summarized in an Excel form and were then imported into R version 4.0.4 and R studio with the “meta” package for statistical analysis. For each study, the prevalence of schistosomiasis liver abnormalities was first transformed with Freeman-Tukey double arcsine [24,25,26]. The pooled prevalence and its 95% confidence intervals (CIs) were then obtained by summarizing the results of all studies based on the accuracy of each study- "weight" [24]. The inverse variance statistic (I2 index) was used to test the quantity of heterogeneity, and the Cochran Q test was used to determine whether the difference was statistically significant at the significance level of 0.05. The I2 index was interpreted as no, low, moderate, or high heterogeneity if the index was 0, ≤ 25%, ≤ 50%, or ≤ 75%, respectively [27,28,29]. When the heterogeneity was not obvious (≤ 50%), the pooled prevalence was calculated using a fixed effects model; otherwise, a random effects model was used [28].

Subgroup analysis was performed to explore the factors that might contribute to the source of heterogeneity. These included the study period, setting (urban or rural areas), regions (at the province level), gender and age groups. The prevalence and 95% CIs of each study and group were drawn in forest plots. Publication bias was evaluated through visual inspection of funnel plots and then was statistically evaluated with Egger’s test [30, 31].


Search results and study selection

The workflow is shown in Fig. 1. A total of 198 records were obtained from the five electronic databases. After removing duplicates and carrying out the preliminary screening of abstracts, we retrieved 49 publications with full texts. Of these, a total of 30 unqualified publications were further excluded for the following reasons: four about S. mansoni, two about S. mekongi, nine without exact data or insufficient data, two reviews, and 13 not diagnosed by ultrasound examination. Finally, a total of 19 articles [32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50] with 21 studies were included in this meta-analysis.

Fig. 1
figure 1

Flow chart of study selection. The flow diagram shows the numbers of titles and studies reviewed in preparation for this meta-analysis

Study characteristics and quality assessment

The main characteristics of all studies are summarized in Table 1. The 19 articles were conducted in four provinces of China, including nine in Shanghai, four in Jiangsu, four in Zhejiang, and two in Sichuan. Among all included studies, four were conducted before 2010, 11 during 2011 to 2015 and six during 2016 to 2020. A total of 268, 247 persons were included in this analysis, and among them, 43, 917 persons were diagnosed with schistosomiasis liver abnormalities. The prevalence of liver abnormalities in humans among studies ranged from 0.07% to 85.16%. Study quality and risk of bias assessment results showed an average score of 6.4, indicating high quality for all included studies (Additional file 2).

Table 1 Characteristics of eligible studies in systematic review and meta-analysis

Pooling and heterogeneity analysis

The prevalence and 95% CIs of schistosomiasis liver abnormalities in humans for each study are shown Fig. 2. As a high degree of heterogeneity existed among studies (χ2 = 39, 543.36, p < 0.01; I2 = 99.9%, 95% CI: 99.9–100.0%), a random effects model was used to estimate the overall prevalence. The pooled estimate was 18.64% (95% CI: 11.88–26.50%). The results of subgroup meta-analyses are shown in Fig. 3 and Table 2. As high heterogeneity existed within each subgroup, a random effects model was used to estimate all size effects. The estimated prevalence among the three periods of study was significantly different (p < 0.01) and increased over time, with 2.48% (95% CI: 0.11–7.67%) before 2010, (20.58% (95% CI: 12.16–30.53%) from 2011 to 2015 and 31.29% (95% CI: 9.47–58.84%) from 2016 to 2020. There were significant differences among provinces. Shanghai had the highest prevalence of 30.61% (95% CI: 19.25–43.32%), and Sichuan had the lowest prevalence of 2.30% (95% CI: 0.00–15.24%). The prevalence for people aged 60 years or over (32.25%, 95% CI: 22.07–43.37%) was significantly higher (P = 0.01) than that for the whole age range (7.27%, 95% CI: 2.05–15.31%). No significant difference was seen when based on study areas (urban or rural areas) or genders.

Fig. 2
figure 2

Forest plot and pooled prevalence of schistosomiasis liver abnormalities showing 21 datasets collected from 19 publications. The diamonds delimit the 95% CIs of all individual prevalence and the overall prevalence, estimated using a random effects model. The included studies were ordered by year of publication

Fig. 3
figure 3

Forest plot of schistosomiasis liver abnormality prevalence in humans pooled by subgroups. The blue square indicates prevalence, and whisker bars indicate its 95% CI

Table 2 Pooled prevalence of liver abnormalities due to S. japonicum in populations or by subgroups with meta-analysis

Publication bias and sensitivity tests

To explore the publication bias among studies, we conducted a funnel plot (Fig. 4) and Egger’s linear regression test (Fig. 5). The results indicated no publication bias (intercept = 0.3565, bias coefficients b = 7.20, t = 0.47, p = 0.65). The sensitivity tests showed that all single-study-omitted estimates were within the 95% CI of the respective overall prevalence (Additional file 3). This suggested that the pooled estimate was not substantially influenced by any single study and hence validated the rationality and reliability of our analyses.

Fig. 4
figure 4

Funnel plots of the Freeman-Tukey double arcsine transformed prevalence of schistosomiasis liver abnormalities. The vertical and diagonal dashed lines represent the overall prevalence and its 95% CI, respectively. Each dot represents a different study

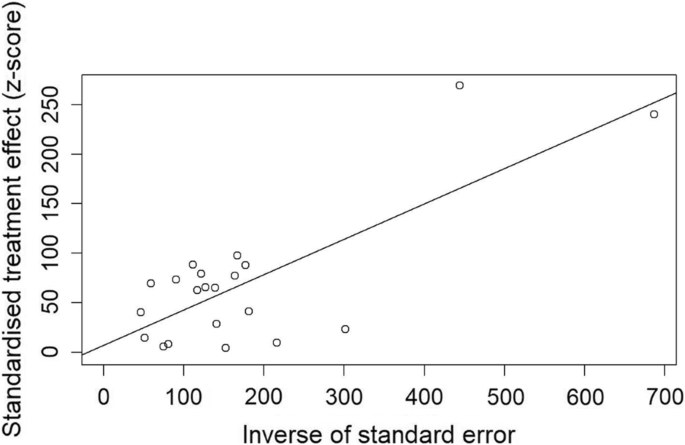

Fig. 5
figure 5

Egger’s publication bias plot of the included studies. The size of circles indicates the sample size of a study


In this meta-analysis of the overall prevalence of schistosomiasis-associated liver damage in humans in China, we retrieved 19 relevant articles involving 21 studies with eligible data from 268, 247 participants, of which 43, 917 were diagnosed with liver abnormalities. The overall pooled prevalence with its 95% CI was 18.64% (11.88–26.50%). Subgroup analyses revealed that the estimate significantly increased over time and varied with regions or age groups of people. Such results would be helpful for health policy makers in both accurately estimating the long-term burden of the disease and setting priorities for life quality improvement on the people affected.

The considerably high prevalence of 18.64% was unexpected but reasonable. Schistosomiasis has been documented in China for more than 2100 years and is one of the most infectious diseases that has seriously affected people's health. For example, it was estimated that in the early 1950s, there were more than 11.6 million patients with schistosomiasis [51]. Although at the end of 2019 the average infection rates in humans and bovines have been reduced to a much lower level (five out of 327, 475 in humans and seven out of 134, 978 in bovines) [52], people with previous infections over last several decades could turn to a great mass. Because minor infections in humans may not be identified with the current diagnostic assays (parasitological or immunological) [53], the number of people with liver abnormalities caused by low-intensity infection (or incomplete treatment) could be large. This is supported by the results of this research. It could suggest that more cases of schistosomiasis liver abnormalities may be undisclosed. Indeed, quite a number of new cases of advanced schistosomiasis have been reported annually, for example a total of 956 in 2019 [13]. Our results did show that the prevalence estimate of liver abnormalities in humans significantly increased over time.

Several factors affected the prevalence estimates. The subgroup analysis by province showed that Shanghai had the highest prevalence (30.61%), followed by Jiangsu (24.33%) and Zhejiang (14.64%) and the lowest Sichuan (2.30%). All these regions were once heavily affected by schistosomiasis, and the elderly people there were very likely to have been infected previously when they were young. Generally, regions with higher economic levels have better public health service and more elderly people will take part in physical examinations, resulting in more cases detected. The prevalence results of this study were, to some extent, in agreement with the reported historical prevalence of schistosomiasis in humans in these regions [54]. Schistosomiasis liver abnormalities usually follow many years of silent or mildly symptomatic infection. Therefore, as expected, the prevalence of liver abnormalities in people 60 years or older was significantly higher than that in those of all ages.

The pooled prevalence of liver abnormalities in rural areas was higher than that in urban areas, and higher in men compared to women, but neither were significant. There is no publication bias in the included literature. We here fully admit the limitations within this study. First, the estimations of prevalence using a random-effects model may not absolutely invalidate the heterogeneity between studies. Overall heterogeneity for pooled and subgroup prevalence estimates was high, suggesting that there was a significant residual effect of unmeasured variables. Second, data paucity exists in the other endemic provinces, mostly with low economic development. This may have underestimated the pooled prevalence in China. Finally, data were missing for gender variables in one-third of the included studies, which made it difficult to estimate the influence of this factor.

We here reported the considerably high prevalence of schistosomiasis-associated liver damage in humans across China, mostly from provinces with schistosomiasis transmission interrupted. However, the results would also have implications for the endemic areas where transmission of the disease has not been interrupted. When the transmission of S. japonicum in an area has been reduced to a much lower level and then it is determined whether the criteria for transmission interruption have been met or not, more efforts and resources would be taken in looking for new schistosome infections in humans at young age. The previous infections in humans at old age and particularly their subsequent damage on livers might have been ignored. As the morbidity due to schistosomiasis could be, partially or completely, preventable through early PZQ treatment [14,15,16,17,18], we would recommend that in such areas all old people with previous or suspected schistosome infections receive the treatment of the drug. This may greatly reduce the burden caused by schistosomiasis in the future.


While China, consistent with the revised WHO global goals, has set the target of the elimination of zoonotic S. japonicum transmission by 2030 at the country level [55, 56], the long-term burden of schistosomiasis in China remains huge, as nearly one-fifth (18.64%) of people are diagnosed with schistosomiasis liver abnormalities in our research. The pooled prevalence was associated with study periods, regions or age groups. The results obtained from this study may have a high reference value in the future exact calculation of the DALYs caused by the parasite. They can also be helpful for policy makers to prioritize improving public health for the people with liver damage due to schistosome infections.

Availability of data and materials

All data analysed within this study are shown in Table 1.



Preferred reporting items for systematic reviews and meta-analyses


Disability-adjusted life years. CIs: Confidence intervals


  1. Colley DG, Bustinduy AL, Secor WE, King CH. Human schistosomiasis. Lancet. 2014;383(9936):2253–64.

    Article  PubMed  PubMed Central  Google Scholar

  2. Klohe K, Amuasi J, Kaducu JM, Haavardsson I, Bogatyreva E, Onarheim KH, et al. The 2017 Oslo conference report on neglected tropical diseases and emerging/re-emerging infectious diseases - focus on populations underserved. Infect Dis Poverty. 2019;8(1):40.

    Article  PubMed  PubMed Central  Google Scholar

  3. Chitsulo L, Loverde P, Engels D. Schistosomiasis. Nat Rev Microbiol. 2004;2(1):12–3.

    Article  CAS  PubMed  Google Scholar

  4. Richter J, Bode JG, Blondin D, Kircheis G, Kubitz R, Holtfreter MC, et al. Severe liver fibrosis caused by Schistosoma mansoni: management and treatment with a transjugular intrahepatic portosystemic shunt. Lancet Infect Dis. 2015;15(6):731–7.

    Article  PubMed  Google Scholar

  5. Ross AG, Bartley PB, Sleigh AC, Olds GR, Li Y, Williams GM, et al. Schistosomiasis. N Engl J Med. 2002;346(16):1212–20.

    Article  PubMed  Google Scholar

  6. Vos T, Flaxman AD, Naghavi M, Lozano R, Michaud C, Ezzati M, et al. Years lived with disability (YLDs) for 1160 sequelae of 289 diseases and injuries 1990–2010: a systematic analysis for the Global Burden of Disease Study 2010. Lancet. 2012;380(9859):2163–96.

    Article  PubMed  PubMed Central  Google Scholar

  7. van der Werf MJ, de Vlas SJ, Brooker S, Looman CW, Nagelkerke NJ, Habbema JD, et al. Quantification of clinical morbidity associated with schistosome infection in sub-Saharan Africa. Acta Trop. 2003;86(2–3):125–39.

    Article  PubMed  Google Scholar

  8. Andrade ZA. Schistosomiasis and liver fibrosis. Parasite Immunol. 2009;31(11):656–63.

    Article  CAS  PubMed  Google Scholar

  9. Cao CL. Review and evaluation of health education and health promotion of schistosomiasis control in China. China Trop Med. 2020;20(07):599–603.

    Google Scholar

  10. Xu J, Hu W, Yang K, Lv S, Li SZ, Zhou XN. Key points and research priorities of schistosomiasis control in China during the 14th Five-Year Plan Period. Chin J Schistosomiasis Control. 2021;33(01):1–6.

    CAS  Google Scholar

  11. Li YT. Study on disease burden of advanced schistosomiasis japonica in China [Master Thesis]: Chinese Center for Disease Control and Prevention; 2019.

  12. Swai B, Poggensee G, Mtweve S, Krantz I. Female genital schistosomiasis as an evidence of a neglected cause for reproductive ill-health: a retrospective histopathological study from Tanzania. BMC Infect Dis. 2006;6:134.

    Article  PubMed  PubMed Central  Google Scholar

  13. Zhang LJ, Xu ZM, Yang F, Dang H, Li YL, Lv S, et al. Endemic status of schistosomiasis in People’s Republic of China in. Chin J Schistosomiasis Control. 2020;2021:1–9.

    Google Scholar

  14. Richter J. Evolution of schistosomiasis-induced pathology after therapy and interruption of exposure to schistosomes: a review of ultrasonographic studies. Acta Trop. 2000;77(1):111–31.

    Article  CAS  PubMed  Google Scholar

  15. Ruiz-Guevara R, de Noya BA, Valero SK, Lecuna P, Garassini M, Noya O. Clinical and ultrasound findings before and after praziquantel treatment among Venezuelan schistosomiasis patients. Rev Soc Bras Med Trop. 2007;40(5):505–11.

    Article  PubMed  Google Scholar

  16. Homeida MA, el Tom I, Nash T, Bennett JL. Association of the therapeutic activity of praziquantel with the reversal of Symmers’ fibrosis induced by Schistosoma mansoni. Am J Trop Med Hyg. 1991;45(3):360–5.

    Article  CAS  PubMed  Google Scholar

  17. Doehring-Schwerdtfeger E, Abdel-Rahim IM, Kardorff R, Kaiser C, Franke D, Schlake J, et al. Ultrasonographical investigation of periportal fibrosis in children with Schistosoma mansoni infection: reversibility of morbidity twenty-three months after treatment with praziquantel. Am J Trop Med Hyg. 1992;46(4):409–15.

    Article  CAS  PubMed  Google Scholar

  18. Boisier P, Ramarokoto CE, Ravaoalimalala VE, Rabarijaona L, Serieye J, Roux J, et al. Reversibility of Schistosoma mansoni-associated morbidity after yearly mass praziquantel therapy: ultrasonographic assessment. Trans R Soc Trop Med Hyg. 1998;92(4):451–3.

    Article  CAS  PubMed  Google Scholar

  19. Ding XJ, Deng FL, Liu Y, Guo YL. Clinical application value of ultrasonic examination in non-endemic areas of schistosomiasis liver disease. Chongqing Med. 2019;48(05):814–6.

    Google Scholar

  20. Moher D, Liberati A, Tetzlaff J, Altman DG, PRISMA Group. Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. Ann Intern Med. 2009;151(4):264–9.

    Article  PubMed  Google Scholar

  21. Zheng QM. Analysis of ultrasound manifestation and diagnostic value of schistosomiasis liver disease patients. Chin Foreign Med Res. 2020;18(08):56–8.

    Google Scholar

  22. Downes MJ, Brennan ML, Williams HC, Dean RS. Development of a critical appraisal tool to assess the quality of cross-sectional studies (AXIS). BMJ Open. 2016;6(12):e011458.

    Article  PubMed  PubMed Central  Google Scholar

  23. Munn Z, Moola S, Riitano D, Lisy K. The development of a critical appraisal tool for use in systematic reviews addressing questions of prevalence. Int J Health Policy Manag. 2014;3(3):123–8.

    Article  PubMed  PubMed Central  Google Scholar

  24. Barendregt JJ, Doi SA, Lee YY, Norman RE, Vos T. Meta-analysis of prevalence. J Epidemiol Commun Health. 2013;67(11):974–8.

    Article  Google Scholar

  25. Stijnen T, Hamza TH, Ozdemir P. Random effects meta-analysis of event outcome in the framework of the generalized linear mixed model with applications in sparse data. Stat Med. 2010;29(29):3046–67.

    Article  PubMed  Google Scholar

  26. Liu M, Chen WS, Liu YX, Liu YQ. Meta-analysis of single rates with zero events. Chin J Evid Based Med. 2020;20(10):1226–33.

    Google Scholar

  27. Higgins JP, Thompson SG. Quantifying heterogeneity in a meta-analysis. Stat Med. 2002;21(11):1539–58.

    Article  PubMed  Google Scholar

  28. Higgins JP, Thompson SG, Deeks JJ, Altman DG. Measuring inconsistency in meta-analyses. BMJ. 2003;327(7414):557–60.

    Article  PubMed  PubMed Central  Google Scholar

  29. Leta S, Alemayehu G, Seyoum Z, Bezie M. Prevalence of bovine trypanosomosis in Ethiopia: a meta-analysis. Parasit Vectors. 2016;9:139.

    Article  PubMed  PubMed Central  Google Scholar

  30. Egger M, Davey Smith G, Schneider M, Minder C. Bias in meta-analysis detected by a simple, graphical test. BMJ. 1997;315(7109):629–34.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  31. Zheng FL, Wang ZX, Wang ZZ. Applying the SAS program to the complete Begg’s Test, the Egger’sTest, and the Macaskill’s Test for publication bias of meta-analysis. Chin J Evid-based Med. 2009;9(08):910–6.

    Google Scholar

  32. Xu CM, Qiang YQ, Lei LW. Analysis of the results of physical examination of the elderly in a community of Shanghai in 2017. Shanghai Med Pharm J. 2020;41(02):59–62.

    Google Scholar

  33. Jiang JY. Analysis of the results of abdominal ultrasound physical examination of the elderly over 60 years old in a certain community. Renowned Doctor. 2020;04:56.

    Google Scholar

  34. Wang XD. Analysis and experience of 530 cases of elderly health examination report in Yaofeng village. China Health Care Nutr. 2019;29(22):367.

    CAS  Google Scholar

  35. Gu LL. Analysis of the results of B-mode ultrasonography in the upper abdomen of the elderly in a community in Shanghai. Shanghai Med Pharm J. 2019;40(16):53–62.

    Google Scholar

  36. Huang SX, Xu F, Leng CM. Analysis on the infection status of schistosomiasis among employees of the Yangtze River Committee from 2011 to 2016. J Trop Dis Parasitol. 2018;16(03):170–2.

    Google Scholar

  37. Jiang LH, Ying CH, Kong ES. Analysis of Health Examination and Effect Evaluation of Health Management in elderly People in a District. Chin Prim Health Care. 2018;32(09):58–60.

    Google Scholar

  38. Jin MH. Analysis of the physical examination results of 2 029 rural elderly people and exploration of the health management. Shanghai Med Pharm J. 2015;36(08):53–6.

    Google Scholar

  39. Fu J, Leng CM, Tang M, Yao WG. Schistosomiasis status of staff in Hydrology Bureau of Yangtze Water Resources Committee in 2013. Chin J Schistosomiasis Control. 2014;26(04):457–8.

    Google Scholar

  40. Xu LX. Research on health status of the elderly in Suzhou Xiangcheng District [Master Thesis]: Soochow University; 2014.

  41. Xia HY. Talking about the application of B-ultrasound examination in farmers’ health examination. Contemp Med Symp. 2013;11(03):320–1.

    Google Scholar

  42. Zhou FF, Gu CH. Analysis of B-ultrasound examination results of elderly liver and gallbladder in Sheshan Town, Songjiang District in 2012. Chin J Rural Med Pharm. 2013;20(17):51–2.

    Google Scholar

  43. Zeng XX. Study on the elderIy heaIth examination and its heaIth-care continuity in Minhang, Shanghai [Master Thesis]: Fudan University; 2013.

  44. Xu CF, Jin F. Investigation and analysis of the seven-year health status of rural elderly residents in Jiangqiao Town, Jiading District. Shanghai Lingnan J Emerg Med. 2012;17(02):141–2.

    Google Scholar

  45. Zhou CH. Analysis of B-ultrasound physical examination results of the upper abdomen of the elderly in the community. Chin Foreign Med Res. 2012;10(34):51.

    Google Scholar

  46. Mao YH. The application value of ultrasound examination in the health examination of new rural cooperative medical system. Yiyao Qianyan. 2012;02(01):212–3.

    Google Scholar

  47. Gu MZ, Zhang WX. Analysis of B-ultrasound results of liver and gallbladder in 1 620 community elderly. Shanghai J Prev Med. 2010;22(9):492–3.

    Google Scholar

  48. Yang LF, Li J, Cai LF, Chen YP. B-ultrasound analysis of the abdomen of 8208 residents in Shuofang Street. Wuxi J Commun Med. 2009;7(4):37–8.

    Google Scholar

  49. Tang Y, Deng QH, Dai K. Longquan Village Longquan Village, Guanghan City, longitudinal surveillance report on schistosomiasis epidemic. Parasitoses Infect Dis. 2008;06(02):88–9.

    Google Scholar

  50. Huang P, Ji DX, Wen DK. Investigation and analysis of the health status of 5783 medical insured workers in Qingbaijiang District, Chengdu. Sichuan Med J. 2003;03(093):322.

    Google Scholar

  51. Zhou XN, Wang LY, Chen MG, Wu XH, Jiang QW, Chen XY, et al. The public health significance and control of schistosomiasis in China–then and now. Acta Trop. 2005;96(2–3):97–105.

    Article  PubMed  Google Scholar

  52. Zhang LJ, Xu ZM, Dang H, Li YL, Lu S, Xu J, et al. Endemic status of schistosomiasis in People’s Republic of China in 2019. Zhongguo Xue Xi Chong Bing Fang Zhi Za Zhi. 2020;32(6):551–8.

    CAS  PubMed  Google Scholar

  53. Degarege A, Legesse M, Medhin G, Teklehaymanot T, Erko B. Day-to-day fluctuation of point-of-care circulating cathodic antigen test scores and faecal egg counts in children infected with Schistosoma mansoni in Ethiopia. BMC Infect Dis. 2014;14:210.

    Article  PubMed  PubMed Central  Google Scholar

  54. Ross AG, Sleigh AC, Li Y, Davis GM, Williams GM, Jiang Z, et al. Schistosomiasis in the People’s Republic of China: prospects and challenges for the 21st century. Clin Microbiol Rev. 2001;14(2):270–95.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  55. Lei ZL, Zhou XN. Eradication of schistosomiasis: a new target and a new task for the National Schistosomiasis Control Porgramme in the People’s Republic of China. Zhongguo Xue Xi Chong Bing Fang Zhi Za Zhi. 2015;27(1):1–4.

    PubMed  Google Scholar

  56. Xu J, Li SZ, Chen JX, Wen LY, Zhou XN. Playing the guiding roles of national criteria and precisely eliminating schistosomiasis in P. R China Chin J Schisto Control. 2017;29(1):1–4.

    Google Scholar

Download references


Not applicable.


The research is currently funded by the National Science Foundation of China (to DL, No. 81971957). The funder had no role in the study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Author information

Authors and Affiliations



MG and DL conceptualized the study. MG, MS and JZ developed the search strategy and analytic plan. MG and QY analysed the data. MG drafted the manuscript. DL and MG revised the manuscript. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Da-Bing Lu.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declared that there is no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Additional file 1: Table S1.

Preferred reporting items for systematic reviews and meta-analyses checklist.

Additional file 2: Table S2.

Quality assessment results of all included publications.

Additional file 3: Fig. S1.

Sensitivity analysis of the pooled prevalence of schistosomiasis liver abnormalities for all studies.
