The correlations between Th1 and Th2 cytokines in human alveolar echinococcosis



Alveolar echinococcosis (AE) is a zoonotic parasitic disease caused by Echinococcus multilocularis larval tapeworm infections in humans that severely impairs the health of affected patients in the northern hemisphere.


The expression levels of 20 cytokines associated with AE infection were measured by enzyme-linked immunosorbent assay, and the correlations between these cytokines were analysed in the R programming language.


Serum cytokine levels differed among individuals in both the AE patient and healthy control groups. The results of the correlations among the cytokines showed obvious differences between the two groups. In the AE patients group, Th1 and Th2 cytokines formed a more complicated network than that in the healthy control group.


The altered correlations between Th1 and Th2 cytokines may be closely associated with AE infection, which may provide a new explanation for the essential differences between AE patients and healthy individuals.

Peer Review reports


Alveolar echinococcosis (AE) is a severe parasitic disease caused by Echinococcus multilocularis larval tapeworm infection in humans that is fatal if left untreated [1, 2]. The liver is the primary target of the disease and is affected in nearly 95% of cases; this disease can also spread and affect other organs, including the lungs, brain and bone [1, 3]. AE causes severe damage or dysfunction of target organs [4, 5]. This disease is restricted to the northern hemisphere, principally in rural areas of western, northern and eastern Europe; the highest disease prevalence is in central Asia, China and Kyrgyzstan [6, 7]. Epidemiological investigations have shown that pastoral regions on the Tibetan Plateau appear to be high-risk areas for AE disease due to specific landscape features and husbandry practices. Specifically, a range of different wildlife hosts, especially small mammals, are involved in the transmission of E. multilocularis in a pastoral region of Qinghai province [5,6,7].

The World Health Organization (WHO) has listed echinococcosis as one of the 17 neglected diseases targeted for control or elimination by 2050 ( To date, surgery is the only potentially curative option for the treatment of AE; however, AE recurrence after hepatectomy is high, and many patients present with inoperable disease [8]. Recently, immunotherapy has been used to complement anti-infective drug approaches, and this approach was suggested to be highly effective in treating echinococcosis; however, there is no accepted immunotherapy against AE infection due to the complicated interactions between the parasites and host immunity.

The type of immune response impacts disease development, and T helper (Th) cells can selectively differentiate into the Th1 or Th2 subtype in response to an E. multilocularis antigen. A Th1/Th2 imbalance has been suggested to play an important role in controlling the immunological response to AE infection [9, 10]. AE patients with Th1-oriented immunity are more likely to harbour fewer parasites or even aborted parasites, whereas AE patients with Th2-oriented immunity are more likely to develop chronic AE [11]. In mice, the Th1 response was shown to dominate at the early stage of AE, and the immune response gradually shifted towards a Th2-dominated response at the late stage of AE to prevent Th1-mediated damage [11, 12]. The imbalance between Th1-type cytokines and Th2-type cytokines in AE is not completely understood due to the limited number of studies, regional differences and complex interactions between parasites and host immunological and genetic factors [9, 12].

In this study, 20 cytokines, including Th1 and Th2 cytokines, were selected according to the related literature [13,14,15]. The expression levels of these cytokines were compared and analysed by bioinformatics and statistical analysis methods to explore the correlations among Th1- and Th2-type cytokines in AE patients and healthy controls from Qinghai Province in China.


Study groups and sample collection

The participants consisted of 45 AE patients (29 females/16 males) and 45 healthy people (27 females/18 males). The mean age of the AE patients was 38 years (range, 21–52 years), and the mean age of the healthy controls was 39 years (range, 26–53 years). All the recruited participants were Tibetan and lived in the Guoluo Tibetan Autonomous Prefecture of Qinghai Province, and 91% were herdsmen. The diagnosis of AE was according to the People’s Republic of China Health Industry Standard—Diagnostic Criteria for Hydatid Disease (WS257–2006) by a professional doctor. The classification of AE patients in different clinical stages of AE was accomplished according to the World Health Organization- (WHO-) PNM (P: Hepatic localization of the metacestode; N: Extrahepatic involvement of neighbouring organs; and M: Presence or absence of distant metastases), detailed in Table 1. No patients had received any anti-inflammatory drugs or anti-parasitic drugs, and none had undergone a curative hepatectomy or a liver transplantation before the study. All healthy controls showed normal abdominopelvic cavity images as detected by B-mode ultrasound. Written consent was obtained from all participants, and this study was approved by the Ethics Committee of Qinghai Institute of Endemic Disease Control and Prevention.

Table 1 The classification of AE patients

Five millilitres of peripheral venous blood was harvested from each participant after an 8- to 12-h fast under strict precautions in sterile tubes containing EDTA anticoagulation, and 1 mL of serum was immediately separated from the blood and preserved at − 80 °C for the measurement of cytokines.

Serum analysis

The serum levels of 20 cytokines in AE patients and healthy controls were measured by an enzyme-linked immunosorbent assay (ELISA) kit (Thermo Scientific) according to the manufacturer’s protocols. All samples were measured three times for each cytokine, and the mean value was taken for analysis. The 20 analysed cytokines are listed in Table 2.

Table 2 The Th1 and Th2 cytokines analysed in the study

Literature review

We searched related studies in the PubMed database using the keywords “cytokine” and “alveolar echinococcosis” to explore data on cytokine expression in previous studies associated with AE from 1990 to 2019. After a literature review, a total of 56 studies were identified, 16 of which reported cytokine levels in human AE.

Statistical methods

The relationships between the AE patient group and the healthy group were analysed by a principal component analysis (PCA) performed based on the Bray-Curtis distance matrix across the samples using the vegan package in R (version 3.4.4). Student’s t-test was performed to compare PC1/PC2 between groups using the stats package in R. Spearman’s correlations between cytokines were calculated using the Hmisc package in R. The correlation networks between cytokines were constructed using the GeneNet package in R and were further visualized using Cytoscape 3.4.0 [16].


Cytokine analysis

The expression levels of 20 cytokines were compared between the AE patient group and the healthy control group, while the ELISA results showed that cytokine expression levels differed among individuals in both the AE patient and healthy control groups.

PCA of AE patients and healthy controls

The PCA showed that most samples in the AE patient group had obviously different cytokine compositions than those in the healthy control group, while a few samples showed similarity (Fig. 1). The differences in cytokine composition between the two groups were further analysed by comparing their PC1 and PC2 values (Fig. 2); these values were significantly different between the two groups (P < 0.001).

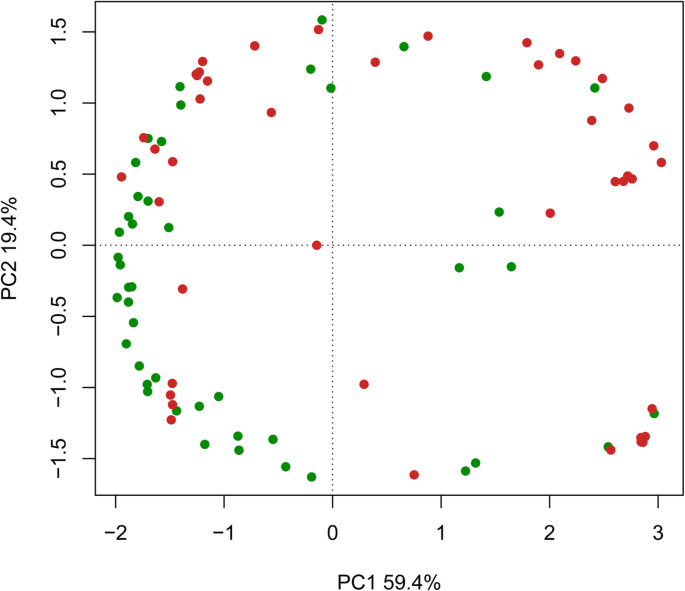

Fig. 1
figure 1

PCA of AE patients (orange) and healthy controls (green) based on the Bray-Curtis distance. The percentages of variance explained by PC1 and PC2 are 59.4 and 19.4%, respectively

Fig. 2
figure 2

Comparison of PC1 and PC2 values between AE patients and healthy controls

Correlations between the cytokines

The correlations among some cytokines were obviously different between the two groups. In the healthy control group, there was no correlation between MIP-1α and IL-13 or among MCP-1, MCP-1α and MIP-1β (Fig. 3a). These cytokines had weak correlations in the AE patient group (Fig. 3b).

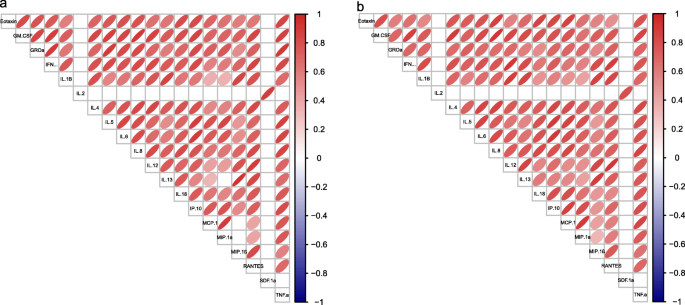

Fig. 3
figure 3

Spearman’s correlations among cytokines in the healthy controls (a) and the AE patients (b)

A partial correlation network analysis of the cytokines confirmed the presence of more complex cytokine interactions in the AE patient group than in the healthy control group (Fig. 4a and b). In the healthy controls, the correlations were simple, and just a few of cytokines showed correlations between each other: IL-8(Th1)_Eotaxin(Th2)_IL-4(Th2); GM-CSF (Th2)_IL-5(Th2)_IL-13(Th2); (IFN)-γ (Th1)_(GRO)-α (Th2)_MCP-1α(Th1); and SDF 1α(Th2)_IL-2(Th1)(Fig. 4a). In the AE patients group, Th1 and Th2 cytokines formed a more complicated network, and more Th1 (MCP-1α, IL-1β, IFN-γ, and IL-8) and Th2 cytokines (IL-5, IL-4, IL-18) showed close correlations (Fig. 4b).

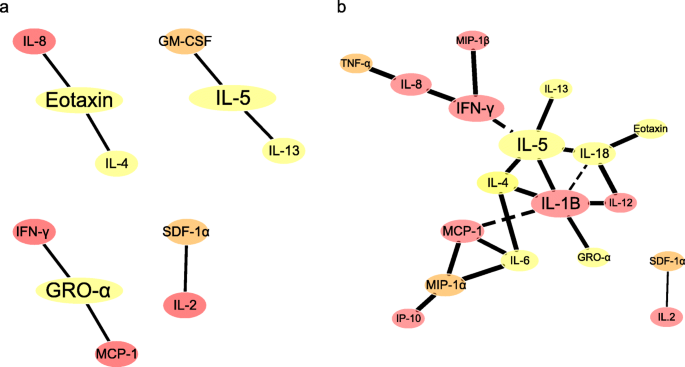

Fig. 4
figure 4

Partial correlation networks among cytokines in the healthy controls (a) and AE patients (b). Note: The colour of the node indicates the origin of the cytokine: red, Th1; yellow, Th2; and orange, both Th1 and Th2. The size of the node indicates the betweenness centrality; a node with increased betweenness centrality has increased control over the network. The solid and dotted lines indicate positive and negative relationships, respectively


In the present study, the expression levels of 20 cytokines were detected to determine some differences between AE patients and healthy controls, while the results were confusing, as they differed among individuals in both the AE patient and healthy control groups. We then summarized the related literature about cytokines associated with human AE, and the results showed that the kinds of ‘different cytokines’ were not always consistent (Table 3), indicating that it is seemingly difficult to discover biomarkers for human AE at the cytokine expression level due to the complex factors in AE affecting the process.

Table 3 The expression levels of cytokines in E. multilocularis-infected humans

To further understand the differences in cytokines between the two groups, we used omics methods, and the results of PCA analysis indicated that cytokine compositions were obviously different between the two groups and that the networks of cytokine correlations were more complicated in the AE patient group than that in the healthy control group. According to the correlation network results, the weak or strong correlations between Th1 and Th2 cytokines could explain the essential differences between the AE patients and the healthy controls. E. multilocularis metacestodes may modulate the secretion of Th1 and Th2 cytokines by Th lymphocytes in AE patients [32], and the cytokine orientation depends on the host immune response induced by E. multilocularis antigens [33]. Th1 cell activation induces considerable protective immunity, which involves the initiating cytokines IFN-α and IL-12 and the effector cytokines IFN-γ and tumour necrosis factor (TNF)-α, to defend against intracellular parasitic infections [34, 35]. Th2 cytokines allow parasites to proliferate at low rates by producing high levels of IL-4, IL-5 and IL-10 [13, 14]. E. multilocularis antigenic preparations have been reported to induce increased IL-5 production due to the activation of CD4+ T lymphocytes in patients with progressive AE [20]. In the present study, the correlation between the Th2-type cytokine IL-5 and the Th1-type cytokines IFN-γ and IL-1β in AE patients may be associated with the enhanced immunological response induced by parasite infection, which indicates that an inflammatory reaction is induced in AE patients. In addition, the Th2 cytokines GRO-α and eotaxin were well controlled by the Th1 cytokines MCP-1, IFN-γ and IL-8 in the healthy control group, whereas GRO-α and eotaxin levels were poorly controlled by Th1 cytokines in the AE patient group, confirming the presence of an inflammatory response in AE patients. The altered correlations among the cytokines may explain the essential differences between the AE patients and the healthy controls.

Furthermore, this parasite can secrete proteins to regulate the host immune response and survive in humans for long periods of time, and different secreted protein profiles at different stages of AE progression may explain the complex interactions between the parasite and the host [36]. A proteomic analysis of cyst vesicular fluids in AE patients contributed to the identification of potential molecular markers for diagnostic and follow-up tools, but the mechanism underlying the interplay between secreted proteins and cytokines requires further exploration.


The correlations between Th1 and Th2 cytokines were simple in the healthy control group but complex in the AE patient group. Th1 cytokines, such as IFN-γ, IL-1β and MCP-1, had high betweenness centrality in AE patients, whereas Th2 cytokines, such as GRO-α, eotaxin and IL-5, had high betweenness centrality in the healthy control group. These findings may provide a new point of view to study the significant difference between AE patients and healthy individuals. However, more studies in the future will be required to clarify the “biomarkers”, such as studies including “clinically relevant populations” (such as liver non-parasitic benign cysts, liver abscesses, and mesenteric cysts) as controls, with prospective follow-up and involving large sample sizes.

Availability of data and materials

Data supporting the conclusions are included within the article.



Alveolar echinococcosis


Enzyme-linked immunosorbent assay


Granulocyte-macrophage colony-stimulating factor


Growth-regulated oncogene-alpha


Interferon-gamma (IFN-γ)-inducible protein 10




Macrophage inflammatory protein-1α


Macrophage inflammatory protein-1β


Monocyte chemoattractant protein


Regulated on activation, normal T cell expressed and secreted


Principal component analysis


Stromal cell-derived factor-1α

Th cells:

T helper cells


Tumour necrosis factor α


World Health Organization
