Smear positivity in paediatric and adult tuberculosis: systematic review and meta-analysis



Tuberculosis (TB) diagnosis continues to rely on sputum smear microscopy in many settings. We conducted a meta-analysis to estimate the percentage of children and adults with tuberculosis that are sputum smear positive.


We searched PubMed, MEDLINE, Embase, and Global Health databases for studies that included both children and adults with all forms of active TB. The pooled percentages of children and adults with smear positive TB were estimated using the inverse variance heterogeneity model. This review was registered in the PROSPERO database under registration number CRD42015015331.


We identified 20 studies meeting our inclusion criteria that reported smear positivity for a total of 18,316 children and 162,574 adults from 14 countries. The pooled percentage of paediatric TB cases that were sputum smear positive was 6.8 % (95 % Confidence Interval (CI) 2.2–12.2 %), compared with 52.0 % (95 % CI 40.0–64.0 %) among adult cases. Eight studies reported data separately for children aged 0–4 and 5–14. The percentage of children aged 0–4 that were smear positive was 0.5 % (95 % CI 0.0–1.9 %), compared with 14.0 % (95 % CI 8.9–19.4 %) among children aged 5–14.


Children, especially those aged 0–4, are much less likely to be sputum smear positive than adults. National TB programs relying on sputum smear for diagnosis are at risk of under-diagnosing and underestimating the burden of TB in children.

Peer Review reports


National tuberculosis (TB) programs focused on diagnosis and treatment of sputum smear positive, highly infectious TB cases have historically under-estimated the burden of TB in children, who frequently present with smear negative, paucibacillary disease [1, 2]. Recent years, however, have brought increasing attention to the global burden of TB in children. Childhood TB was the focus of the World TB Day in 2012, and in 2012 the World Health Organization (WHO) published their first estimates of the global burden of childhood TB [2, 3].

Sputum smear microscopy remains the primary diagnostic tool available for bacteriologic diagnosis of TB in both children and adults in most settings [4]. Although conventional wisdom holds that children are less likely to present with smear positive TB than adults, the relative values of these proportions are not known with precision and systematic reviews of the relative percentages of children and adults with TB that are smear positive have not been conducted. We need quantitative estimates of these percentages to understand the extent to which national TB programs that prioritise treatment of smear positive TB will tend to under-serve their paediatric as well as adult populations. These estimates may also be used to more accurately inform the global burden of childhood TB. WHO estimates in 2012 assumed a similar degree of under-diagnosis and underreporting among children and adults. This approach would tend to under-estimate the burden of childhood TB if children are in fact less likely to be smear positive [3]. Jenkins et al. [5] provided alternative estimates of paediatric and adult rates of smear positivity based on values from studies in Norway and the United States [6, 7]; however, the specific values used in this analysis were subject to some debate [8, 9].

In this paper, we present a systematic review and meta-analysis of the relative percentages of children and adults with tuberculosis that are sputum smear positive. We also assess the percentage of children that are smear positive by age group (0–4 vs. 5–14). These percentages will be useful for improving estimates of the global burden of childhood TB and for helping to assess the potential value of more sensitive diagnostic methods in children and adults.


The authors followed the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) standards of quality for reporting systematic reviews [10]. The protocol for this study was registered in the PROSPERO database under registration number CRD42015015331 on January 12, 2015, prior to data extraction [11] and is available in the Additional file 1.

Search strategy and selection criteria

We conducted a systematic search of MEDLINE (OvidSP 1946 to November Week 1, 2014), Embase (OvidSP 1974 to November Week 1, 2014), Global Health (OvidSP 1910 to 2014 Week 45), and PubMed online databases. All searches were conducted on November 19, 2014 and all results were limited to English. Our search terms were designed to capture studies about TB that included both children and adults and that attempted to diagnose all forms of TB. We also included search terms intended to capture the range of study designs that we thought could be used to collect data that could inform our estimates. We did not specifically include terms related to sputum smear microscopy to increase the likelihood of finding data from studies for which the sensitivity of smear microscopy was not the primary objective.

We reviewed abstracts from this initial search using a defined set of inclusion criteria. All studies that could not be excluded with certainty based on the information in the abstract were referred for full text review. Our inclusion criteria were as follows. First, all included studies needed to provide primary data on the total number of children and adults with TB, as well as the number of those children and adults with smear-positive TB. Studies should have used a cut-off age of 15 years to distinguish between children and adults, with children defined as age <15 years or, if not reported otherwise, ≤15 years. We excluded studies that did not include at least 10 cases of active TB, including at least two children and at least two adults. We also excluded studies that restricted the ages of the included children or adults (e.g. that excluded children age <5 years), did not describe an attempt to diagnose all forms of TB (i.e. pulmonary and extra-pulmonary), or required bacteriological confirmation for TB diagnosis. The latter condition was necessary as bacteriological confirmation may be unavailable for a large proportion of children with TB, reflecting the continued lack of sufficiently sensitive diagnostic tests [1]. Finally, we excluded studies that selected for participant infectiousness or other health statuses or conditions (excepting HIV) that could make the study population unrepresentative of the general population of TB cases. Our complete search strategy is included in the Additional file 1.

Two reviewers (AK and RRN) double reviewed all abstracts in EndNote X7 to rule out studies that clearly did not meet our inclusion criteria, with discrepancies mediated by a third reviewer (HEJ or TC) and uncertain studies referred for full text review. The same reviewers also double reviewed all full text articles.

Data extraction

Two reviewers (AK and RRN) performed double data extraction and entry using Microsoft Excel. A third reviewer (HEJ or TC) arbitrated any discrepancies between the two reviewers.

From each study, we extracted the total number of children, adults, smear-positive children, and smear-positive adults with active TB. We also extracted data on study location, design, and year, as well as, when available, potential covariates including the prevalence of HIV, history of BCG, and history of previous TB among child and adult participants. The majority of these covariates were available only for a small subset of the included studies. For studies that provided a finer age breakdown than child vs. adult, we extracted the age range, total number of TB cases, and number of smear-positive TB cases from each age group.

Quality assessment

We developed a modified QUADAS-2 tool to assess the quality of the included studies [12]. This tool is provided in the Additional file 1.

Statistical analysis

To calculate the percentage of childhood TB cases that were smear positive, we defined the numerator as the number of children reported as smear positive and the denominator as the total number of children diagnosed with TB. Because we were interested in estimating the percentage of all childhood TB cases that were smear positive, incorporating all reasons for the absence of a smear positive result, we did not restrict our analysis to patients in whom a smear test was conducted. When smear results were clearly reported for only a subset of the study population (e.g. only among new cases), we restricted our analyses to this sub-population. We repeated this procedure among adults to calculate the percentage of adult cases that were smear positive.

We performed meta-analyses using the inverse-variance heterogeneity (IVhet) model [13], which is specifically developed for meta-analyses with high heterogeneity, in place of a random effects model, which may underestimate the width of the confidence intervals and become increasingly unreliable as heterogeneity increases. The IVhet model is implemented in the meta-analysis package MetaXL [14]. We included stratifications by age and study design in our final analyses; other potential stratification variables such as BCG and HIV were also considered.

Notification data

In a parallel analysis, we extracted data on the total and smear-positive numbers of children and adults from the WHO TB case notification database [15]. Countries started reporting both smear positive and smear negative cases in 2006, and at the date of extraction not all data for 2013 were available and we therefore restricted our analysis to 2006–2012. We estimated the proportion of children and adults with smear-positive TB for all countries, OECD member countries, and countries with WHO benchmark status. The same statistical approach was used for the notification data as for the systematic review.


The following section presents results of our systematic review and separate analysis of WHO notification data.

Description of included studies

The results of the literature search are displayed in Fig. 1. Our initial search yielded 1371 abstracts. Of these, 317 were referred for full text review, and 20 full texts were selected for inclusion in the qualitative synthesis and meta-analysis [1635]. Table 1 and Additional file 2 provide information on each of the included studies. Two of the 20 included studies applied a cut-off age for children of ≤15 years [24, 28]; the remainder defined the cut-off age for children as <15 years. The 20 included studies reported smear positivity for a total of 18,316 children and 162,574 adults across 14 countries. The number of children included in each individual study ranged from six to 4691. One of the 20 studies included data on two distinct populations (adult and child index cases as well as adult and child contacts); these two populations were treated in the statistical analysis as though they were derived from two different studies [18].

Fig. 1
figure 1

Deatils of literature search leading to the selection of included studies

Table 1 Summary of included studies

Of the included studies, eight provided data on child TB cases separately for younger and older children (total and smear positive only), with a cut-off age of 4 years. One of these eight studies used an age cut-off for younger children of <4 years [29]; for the remaining studies, the cut-off used was ≤4 years. The eight studies included data on a total of 4922 children in the younger age group and 2587 children in the older age group.

Although we sought to extract data on several potential covariates including history of BCG vaccination, HIV infection, and previous TB treatment, most studies did not provide sufficient information to include these covariates in the analyses (Additional file 2). Data on BCG vaccination was provided by only one of the 20 included studies, and HIV infection by six (including two with high rates of missing data).

Quality assessments of the included studies are provided in the Additional file 1. The included studies could be broadly classified as either contact tracing studies or retrospective record-based studies. We assessed contact tracing studies as having a study population possibly not representative of the general population of TB cases; however, these studies often included extensive attempts to accurately diagnose TB among children (Table 1). In contrast, we assessed the majority of the record-based studies as being sufficiently representative of the general population of TB cases, but given the more limited range of tests used to diagnose TB, these studies may have diagnosed TB in children with less reliability (Table 1).

Pooled percentage smear positive: children vs. adults

Figures 2 and 3 show the smear positivity percentage among children and adults respectively in the 20 included papers. Results stratified by study design (contact tracing vs record-based) are included in the Additional file 1. We found a high degree of heterogeneity in the results across the included studies that could not be explained by differences in design (I2 ≥ 98 % for both adults and children). Using the IVhet method to account for this heterogeneity [13], we obtained a pooled estimate for the percentage of TB cases with smear positive disease of 6.8 % (95 % CI 2.2–12.2 %) among children and 52.0 % (95 % CI 40.0–64.0 %) among adults.

Fig. 2
figure 2

Forest plot of smear positivity percentage among children

Fig. 3
figure 3

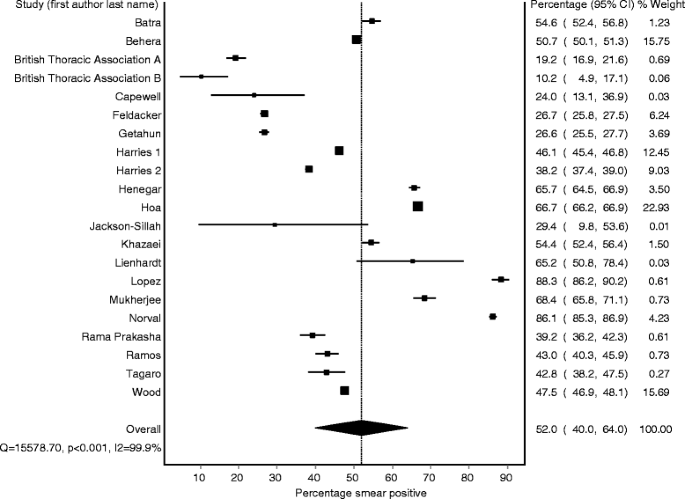

Forest plot of smear positivity percentage among adults

Pooled percentage smear positive: younger children vs. older children

Figure 4 depicts the smear positivity of younger and older children respectively in the eight studies that provided data broken down into these two age groups (with a cut-off age of 4 years). These results also display considerable heterogeneity, though less so than the measures for children vs. adults (I2 = 85 % for younger children and 77 % for older children). Using the IVhet method to account for this heterogeneity [13], we obtained a pooled estimate for the percentage of TB cases with smear positive disease of 0.5 % (95 % CI 0.0–1.9 %) among younger children aged 0–4 and 14.0 % (95 % CI 8.9–19.4 %) among older children aged 5–14.

Fig. 4
figure 4

Forest plots of smear positivity percentage among (a) younger children (ages 0-4 years) and (b) older children (ages 5-14 years)

Analysis of notification data

The results of our parallel analysis of WHO notification data are included in the Additional file 1. Our examination of these data revealed a number of limitations, including an unexpectedly high numbers of countries reporting either 0 % or 100 % of cases to be smear positive; the high frequency of cases reported as “smear unknown”; and the high variability in the proportion of cases reported as “smear unknown” even among benchmark and OECD countries. Because of these limitations, these data were not included in our primary analysis. Although the age specific estimates of smear positivity derived from these notification data vary by which countries are included in the analysis (see Additional file 1 for details), the overall results agree with our qualitative assessment of substantially lower rates of smear positivity among children than among adults.


In this study, we conducted a systematic review and meta-analysis to assess the relative percentages of paediatric and adult TB cases that present with sputum smear positive TB. We estimated that just 6.8 % of paediatric TB cases are sputum smear positive, compared with 52.0 % of adults. Furthermore, we show that this percentage varies greatly depending on the age of the children, with the percentage smear positive just 0.5 % among children aged 0–4 compared with 14.0 % among children aged 5–14. Our results are consistent with the assumptions of Jenkins et al. [5], who assumed a smear positivity percentage of 8.8 % among childhood TB cases compared with 49.5–56.6 % among adults when accounting for the under-diagnosis of children to estimate the global burden of childhood TB.

We found a high degree of heterogeneity across studies. The heterogeneity was reduced when we stratified children into age groups of 0–4 and 5–14 years, suggesting that differences in the age distributions across studies may explain some of this variability. The age structure of the included study populations was highly heterogeneous, with the percentage of children age <5 years ranging from 38 % [18] to 80 % [35] in the individual studies for which these data were available. However, fewer than half of the included studies provided data on the age distribution of the included children. The overall percentage of children with smear positive TB is likely to vary depending on the age structure of the population of interest, as well as the average age of infection. The percentage of paediatric TB cases who are smear positive may also differ across settings based on other factors such as the prevalence of HIV, the prevalence of BCG vaccination, and the average duration of disease prior to diagnosis. We were not able to assess many of these factors in this meta-analysis given the limited number of studies meeting the inclusion criteria.

In defining the inclusion criteria, we were careful to exclude studies that were clearly biased towards or against the mostly highly infectious TB cases (e.g. record-based studies from hospitals in which smear-positive patients were routinely hospitalised; contact tracing studies that reported data only on those adults with at least one infected child contact). However, the included study designs were not without limitations. Cases discovered through contact tracing may be less severe and less likely to be smear positive than those identified through routine surveillance. On the other hand, routine diagnosis of childhood TB, particularly in low-resource settings, is often heavily reliant on clinical diagnosis and thus may not represent the true burden of disease. Though we extracted data on diagnosis patterns from each study (Table 1), it was often difficult to assess the degree to which diagnostic aggressiveness and willingness to rely on clinical diagnosis differed across the included studies. Concerns about the potential effects of study design on representativeness and over- or under-diagnosis of TB cases are reflected in our quality assessments of the included studies provided in the Additional file 1.

New tools and methods to diagnose TB in children are needed given the low sensitivity of sputum smear microscopy and lack of other inexpensive and reliable methods in this highly vulnerable population. Recent studies have addressed the potential role of nucleic acid amplification tests such as Xpert MTB/RIF in diagnosing paediatric TB [36, 37]. The sensitivity of Xpert MTB/RIF among children appears to exceed that of smear microscopy; however, the sensitivity is still low among culture-negative presumptive TB cases, which account for a large fraction of the burden of TB among children [1, 36, 37].


The low percentages of smear positivity in this analysis emphasise the degree to which national TB programs dependent on sputum smear microscopy will need to rely on clinical diagnoses of TB in children. Use of Xpert MTB/RIF would likely reduce but not eliminate this problem. Attempts to estimate the burden of TB in children locally or globally should account for the relative degree of under-diagnosis and underreporting caused by the limitations of existing methods for diagnosing childhood TB.


IVhet, inverse-variance heterogeneity; TB, tuberculosis; WHO, World Health Organization


  1. Marais BJ, Pai M. Recent advances in the diagnosis of childhood tuberculosis. Arch Dis Child. 2007;92(5):446–52. doi:10.1136/adc.2006.104976.

    Article  PubMed  PubMed Central  Google Scholar

  2. Seddon JA, Shingadia D. Epidemiology and disease burden of tuberculosis in children: a global perspective. Infect Drug Resist. 2014;7:153–65. doi:10.2147/idr.s45090.

    PubMed  PubMed Central  Google Scholar

  3. World Health Organization. Global Tuberculosis Report 2012. Geneva: World Health Organization; 2012.

    Google Scholar

  4. World Health Organization. Global Tuberculosis Report 2014. Geneva: World Health Organization; 2014.

    Google Scholar

  5. Jenkins HE, Tolman AW, Yuen CM, Parr JB, Keshavjee S, Perez-Velez CM, et al. Incidence of multidrug-resistant tuberculosis disease in children: systematic review and global estimates. Lancet. 2014;383(9928):1572–9. doi:10.1016/s0140-6736(14)60195-1.

    Article  PubMed  PubMed Central  Google Scholar

  6. Murray CJ, Styblo K, Rouillon A. Tuberculosis in developing countries: burden, intervention and cost. Bull Int Union Tuberc Lung Dis. 1990;65:6–24.

    CAS  PubMed  Google Scholar

  7. Galtung Hansen O. Tuberculosis mortality and morbidity and tuberculin sensitivity in Norway. Copenhagen: WHO Euro-84/151955.

  8. Sismanidis C, Glaziou P, Law I, Floyd K. The burden of tuberculosis disease in children. Lancet. 2014;384(9951):1343. doi:10.1016/s0140-6736(14)61810-9.

    Article  PubMed  Google Scholar

  9. Jenkins HE, Pagano M, Yuen CM, Becerra MC, Cohen T. The burden of tuberculosis disease in children--Authors’ reply. Lancet. 2014;384(9951):1343–4. doi:10.1016/s0140-6736(14)61811-0.

    Article  PubMed  Google Scholar

  10. Moher D, Liberati A, Tetzlaff J, Altman DG. Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. Ann Intern Med. 2009;151(4):264–9. w64.

    Article  PubMed  Google Scholar

  11. Booth A, Clarke M, Dooley G, Ghersi D, Moher D, Petticrew M, et al. The nuts and bolts of PROSPERO: an international prospective register of systematic reviews. Syst Rev. 2012;1:2. doi:10.1186/2046-4053-1-2.

    Article  PubMed  PubMed Central  Google Scholar

  12. Whiting PF, Rutjes AW, Westwood ME, Mallett S, Deeks JJ, Reitsma JB, et al. QUADAS-2: a revised tool for the quality assessment of diagnostic accuracy studies. Ann Intern Med. 2011;155(8):529–36. doi:10.7326/0003-4819-155-8-201110180-00009.

    Article  PubMed  Google Scholar

  13. Doi SA, Barendregt JJ, Khan S, Thalib L, Williams GM. Advances in the meta-analysis of heterogeneous clinical trials I: the inverse variance heterogeneity model. Contemp Clin Trials. 2015. doi:10.1016/j.cct.2015.05.009.

    Google Scholar

  14. Murray J, Sonnenberg P, Shearer S, Godfrey-Faussett P. Drug-resistant pulmonary tuberculosis in a cohort of southern African goldminers with a high prevalence of HIV infection. S Afr Med J. 2000;90(4):381–6.

    CAS  PubMed  Google Scholar

  15. Lew W, Pai M, Oxlade O, Martin D, Menzies D. Initial drug resistance and tuberculosis treatment outcomes: systematic review and meta-analysis. Ann Intern Med. 2008;149(2):123–34.

    Article  PubMed  Google Scholar

  16. Batra S, Ayaz A, Murtaza A, Ahmad S, Hasan R, Pfau R. Childhood tuberculosis in household contacts of newly diagnosed TB patients. PLoS One. 2012;7(7):e40880. doi:10.1371/journal.pone.0040880.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  17. Behera D, Sharma PP. A retrospective study of seasonal variation in the number of cases diagnosed at a tertiary care tuberculosis hospital. Indian J Chest Dis Allied Sci. 2011;53(3):145–52.

    CAS  PubMed  Google Scholar

  18. A study of a standardised contact procedure in tuberculosis. Report by the contact study Sub-Committee of the Research Committee of the British Thoracic Association. Tubercle. 1978;59(4):245-59.

  19. Capewell S, Leitch AG. The value of contact procedures for tuberculosis in Edinburgh. Br J Dis Chest. 1984;78(4):317–29.

    Article  CAS  PubMed  Google Scholar

  20. Feldacker C, Tweya H, Keiser O, Weigel R, Kalulu M, Fenner L, et al. Characteristics of adults and children diagnosed with tuberculosis in Lilongwe, Malawi: findings from an integrated HIV/TB clinic. Trop Med Int Health. 2012;17(9):1108–16. doi:10.1111/j.1365-3156.2012.03041.x.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  21. Getahun B, Ameni G, Medhin G, Biadgilign S. Treatment outcome of tuberculosis patients under directly observed treatment in Addis Ababa, Ethiopia. Braz J Infect Dis. 2013;17(5):521–8. doi:10.1016/j.bjid.2012.12.010.

    Article  PubMed  Google Scholar

  22. Harries AD, Hargreaves NJ, Graham SM, Mwansambo C, Kazembe P, Broadhead RL, et al. Childhood tuberculosis in Malawi: nationwide case-finding and treatment outcomes. Int J Tuberc Lung Dis. 2002;6(5):424–31.

    CAS  PubMed  Google Scholar

  23. Harries AD, Parry C, Nyongonya Mbewe L, Graham SM, Daley HM, Maher D, et al. The pattern of tuberculosis in Queen Elizabeth Central Hospital, Blantyre, Malawi: 1986-1995. Int J Tuberc Lung Dis. 1997;1(4):346–51.

    CAS  PubMed  Google Scholar

  24. Henegar C, Behets F, Vanden Driessche K, Tabala M, Van Rie A. Impact of HIV on clinical presentation and outcomes of tuberculosis treatment at primary care level. Int J Tuberc Lung Dis. 2013;17(11):1411–3. doi:10.5588/ijtld.13.0151.

    Article  CAS  PubMed  Google Scholar

  25. Hoa NB, Wei C, Sokun C, Lauritsen JM, Rieder HL. Characteristics of tuberculosis patients at intake in Cambodia, two provinces in China, and Viet Nam. BMC Public Health. 2011;11:367. doi:10.1186/1471-2458-11-367.

    Article  PubMed  PubMed Central  Google Scholar

  26. Jackson-Sillah D, Hill PC, Fox A, Brookes RH, Donkor SA, Lugos MD, et al. Screening for tuberculosis among 2381 household contacts of sputum-smear-positive cases in The Gambia. Trans R Soc Trop Med Hyg. 2007;101(6):594–601. doi:10.1016/j.trstmh.2007.02.001.

    Article  PubMed  Google Scholar

  27. Khazaei HA, Rezaei N, Bagheri GR, Dankoub MA, Shahryari K, Tahai A, et al. Epidemiology of tuberculosis in the Southeastern Iran. Eur J Epidemiol. 2005;20(10):879–83. doi:10.1007/s10654-005-2152-y.

    Article  PubMed  Google Scholar

  28. Lienhardt C, Fielding K, Hane AA, Niang A, Ndao CT, Karam F, et al. Evaluation of the prognostic value of IFN-gamma release assay and tuberculin skin test in household contacts of infectious tuberculosis cases in Senegal. PLoS One. 2010;5(5):e10508. doi:10.1371/journal.pone.0010508.

    Article  PubMed  PubMed Central  Google Scholar

  29. Lopez T, Moreno M, Salvador F, Zacarias A, Carvalho R, Tomas E, et al. Tuberculosis diagnosed in a rural setting in Angola. Accuracy of follow-up sputum smears to predict outcome. Pathog Glob Health. 2013;107(1):5–10. doi:10.1179/2047773212y.0000000066.

    Article  PubMed  PubMed Central  Google Scholar

  30. Mukherjee A, Chowdhury R, Singla R, Saha I, Dutta R, Das T. Comparison between childhood and adult tuberculosis in a rural tuberculosis unit of West Bengal: a retrospective study. Lung India. 2014;31(2):116–20. doi:10.4103/0970-2113.129818.

    Article  PubMed  PubMed Central  Google Scholar

  31. Norval PY, San KK, Bakhim T, Rith DN, Ahn DI, Blanc L. DOTS in Cambodia. Directly observed treatment with short-course chemotherapy. Int J Tuberc Lung Dis. 1998;2(1):44–51.

    CAS  PubMed  Google Scholar

  32. Rama Prakasha S, Suresh G, Dsa IP, Ganesh Kumar S, Rao R, Shetty M. A study of clinical characteristics and trend of different types of tuberculosis in coastal South India. Ann Trop Med Public Health. 2012;5(5):489–94.

    Article  Google Scholar

  33. Ramos JM, Reyes F, Tesfamariam A. Childhood and adult tuberculosis in a rural hospital in Southeast Ethiopia: a ten-year retrospective study. BMC Public Health. 2010;10:215. doi:10.1186/1471-2458-10-215.

    Article  PubMed  PubMed Central  Google Scholar

  34. Tagaro M, Harries AD, Kool B, Ram S, Viney K, Marais B, et al. Tuberculosis case burden and treatment outcomes in children, adults and older adults, Vanuatu, 2007-2011. Public Health Action. 2014;4 Suppl 1:S14–8.

  35. Wood R, Lawn SD, Caldwell J, Kaplan R, Middelkoop K, Bekker LG. Burden of new and recurrent tuberculosis in a major South African city stratified by age and HIV-status. PLoS One. 2011;6(10):e25098. doi:10.1371/journal.pone.0025098.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  36. World Health Organization. Automated real-time nucleic acid amplification technology for rapid and simultaneous detection of tuberculosis and rifampicin resistance: Xpert MTB/RIF assay for the diagnosis of pulmonary and extrapulmonary TB in adults and children. Geneva: World Health Organization; 2013.

    Google Scholar

  37. Detjen AK, DiNardo AR, Leyden J, Steingart KR, Menzies D, Schiller I, et al. Xpert MTB/RIF assay for the diagnosis of pulmonary tuberculosis in children: a systematic review and meta-analysis. Lancet Respir Med. 2015. doi:10.1016/s2213-2600(15)00095-8.

    PubMed  PubMed Central  Google Scholar

Download references


We would like to thank Dr. Karen Steingart (Cochrane Infectious Disease Group, Liverpool School of Tropical Medicine) for valuable advice on our overall approach for this review and meta-analysis and Dr. Wolfgang Viechtbauer (Department of Psychiatry and Psychology, School for Mental Health and Neuroscience, Faculty of Health, Medicine, and Life Sciences, Maastricht University) for helpful consultation about our analytic plan. We would also like to acknowledge Ms. Janis Glover from the Yale School of Medicine Library for her help in defining search terms and the search strategy for the systematic review.


The TB Alliance/WHO provided funding for this study (AK, FM, TC). Additional funding was provided by the US National Institutes of Health US NIH K01AI102944 (HEJ), the Northern Norway Regional Health Authority/Faculty of Health Sciences, UIT-The Arctic University of Norway (PAzW) and the Swiss National Science Foundation ( grant PBEZP3_140163 (PAzW). The content is solely the responsibility of the authors and does not necessarily represent the views of the National Institute of Allergy and Infectious Disease or the Office of the Director, NIH. The funders had no role in the analysis or the decision to publish this manuscript.

Availability of data and materials

All materials are available as supplementary material.

Authors’ contributions

HEJ and TC conceived the study. AK, HJ, and TC designed the search strategy. AK and RRN conducted initial review of abstracts and papers and performed data extraction and scoring; HEJ and TC reviewed any discrepancies in extraction and scoring. PAzW and HEJ conducted analyses. AK wrote the first draft of the paper. AK, PAzW, RRN, FM, HEJ, and TC reviewed and revised the paper and agree with the content in the final manuscript.

Authors’ information

AK is a doctoral student in epidemiology. PAzW is a faculty member in pharmacy. RRN is a clinician researcher. FMM is a clinician researcher. HEJ is a faculty member in biostatistics. TC is a faculty member in epidemiology.

Competing interests

The authors declare that they have no competing interests.

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not applicable.

Author information

Authors and Affiliations


Corresponding author

Correspondence to Ted Cohen.

Additional information

Amber Kunkel and Pia Abel zur Wiesch joint first authors.

Helen E. Jenkins and Ted Cohen joint senior authors.

Additional file

Additional file 1

Supplemental information for A: Search strategies, B: Rational for full text exclusions, C: Study quality assessment tool, D: Study quality assessment results, E: Stratified results by age group, F: Stratified results by study design, G: Challenges of using notification data, H: Analysis of notification data. (DOCX 612 kb)

Additional file 2

Table of additional details for included studies. (XLSX 52 kb)

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (, which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver ( applies to the data made available in this article, unless otherwise stated.
