An adult co-presented with varicella and herpes zoster caused by varicella zoster virus genotype J, China: a case report

Abstract

Background

Varicella zoster virus (VZV) causes varicella primarily in childhood, and some rare adults also report varicella. Herpes zoster mainly occurs in adults by endogenous reactivation of latent VZV. Until now, varicella and herpes zoster have seldom been reported simultaneously in one patient. Here, we report a rare case co-presenting with varicella and herpes zoster in a Chinese adult.

Case presentation

A 44-year-old Chinese man suffered papules and vesicles with pain on the left ear. Five days after onset, he was admitted to the Department of Dermatology of The Third Hospital of Xiamen. Physical examination revealed that small vesicles surrounded by erythema had developed on his trunk, back and neck, and unilateral papules and vesicles in ribbons had also developed on the left ear. This patient was excluded from human immunodeficiency virus and Treponema pallidum infections by ELISA antibody tests. Laboratory tests revealed that the ratio of eosinophils (0.1%) and eosinophil count (0.0 × 109/L) were significantly downregulated. Treatment with valacyclovir, ebastine, mecobalamine, pregabalin and calamine lotion for 5 days was effective therapy for varicella and herpes zoster. Polymerase chain reaction for vesicular fluids from varicella and herpes zoster was positive for VZV, and further phylogenetic analysis and single nucleotide polymorphism variations confirmed that the VZV genotype was type J (clade 2).

Conclusions

This rare case highlights awareness of varicella and herpes zoster caused by VZV infection in adults. Our report provides novel insight into the rare clinical presentation of VZV genotype J.

Peer Review reports

Background

Infection with varicella zoster virus (VZV) can cause trivial mucocutaneous lesions to life-threatening neurological syndrome complications, such as postherpetic neuralgia (PHN) and vasculitis [1]. Varicella (chickenpox) and herpes zoster (shingles) are two distinct clinical presentations of mucocutaneous lesions caused by VZV. Primary infection with VZV causes varicella in childhood; then, VZV establishes a latent state in peripheral ganglia, and reactivation of latently persistent virus causes herpes zoster decades later [2]. However, varicella in adult populations have been reported in India [3] and Japan [4, 5]. Several studies have confirmed concurrent varicella and herpes zoster in middle-aged and old adults [6,7,8,9], but the pathogen and the genotyping of the causative agent were not determined.

Single nucleotide polymorphisms (SNPs) in different open reading frames (ORFs) of the VZV genome have been used for VZV genotyping. Genogroups E (European), M (Mosaic) and J (Japanese) of VZV are further divided into seven clades (clade 1, E1; clade 2, J; clade 3, E2; clade 4, M2; clade 5, M1; clade 6, M4; and clade 7, M3) based on specific SNPs in ORFs 1, 21, 22, 50 and 54 [10,11,12,13]. Here, we report a rare case of varicella on the neck, trunk and back and herpes zoster on the left ear in a Chinese adult caused by VZV genotype J (clade 2).

Case presentation

Here, we report a 44-year-old Chinese man who was suffering from vesicles surrounded by erythema on the left ear and was admitted to The Third Hospital of Xiamen. He complained of pain lasting for 5 days. The patient said he was previously healthy without history of varicella or known drug allergic history and denied any history of medical or medication-related immunosuppression when he was admitted to the hospital. Physical examination found small vesicles (1–2 mm diameter) surrounded by erythema had developed on his trunk and back (Fig. 1a) and on the neck (Supplementary Fig. S1A). These vesicles were diagnosed as varicella. The papules and vesicles in ribbons on the left ear involved 1 to 3 dermatomes, the vesicular eruption was unilateral, lesions appeared over the first 5 days, and they were ulcerated. These lesions were diagnosed as herpes zoster (Fig. 1a). To exclude immunocompromised conditions and other diseases, the antibody titres of human immunodeficiency virus (HIV) and Treponema pallidum were determined, but the patient was negative for these two pathogens. Chest computed tomography confirmed the patient did not have pneumonia. The laboratory test showed that the ratio of neutrophils (82.6%) and neutrophil count (7.8 × 109/L), concentrations of haemoglobin (177 g/L) and complement C4 (0.43 g/L), and haematocrit (51.3%) were upregulated; however, the ratios of lymphocytes (14.3%) and monocytes (2.6%) were downregulated; the ratio of eosinophils (0.1%) and the eosinophil count (0.0 × 109/L) were significantly downregulated (Supplementary Table S1). The patient was prescribed valacyclovir, ebastine, mecobalamine, pregabalin and calamine lotion. The vesicles became crusts and then disappeared after treatment for 1 week (Fig. 1b and Supplementary Fig. S1B).

Fig. 1
figure1

a and b Clinical presentation of varicella and herpes zoster in the patient’s trunk, back and head before or after treatment

To determine the causative pathogen, vesicular fluids from varicella and herpes zoster were collected. Herpes simplex virus type 1 (HSV-1), HSV-2 and VZV were detected by nested PCR [14], and only VZV was detected (Supplementary Fig. S2A). The viral load of VZV was assessed using real-time PCR [14], and the viral load of VZV in the head (mean of Ct = 17.35) was higher than that in the trunk (mean of Ct = 18.64) (Supplementary Fig. S2B). To confirm the accuracy of the results, HSV-1, HSV-2, VZV and cytomegalovirus (CMV) were detected again [15]. Vesicles in the trunk and head were positive for VZV (Supplementary Fig. S2C).

To examine the genotype of VZV, 6 ORFs (ORFs 1, 21, 22, 50, 54 and 68) of the VZV genome were amplified (Supplementary Fig. S2D) [11, 13, 16], and phylogenetic analysis indicated that the genotypes of VZV in the trunk and head were genotype J (clade 2) (Fig. 2a). The SNP variations in 5 ORFs (ORFs 1, 21, 22, 50 and 54) were determined. A total of 13 SNP variations were found, and the synonymous mutations also confirmed that VZV in the trunk and head were genotype J (Fig. 2b). To assess this VZV whether a VZV glycoprotein E (gE) mutant virus (VZV-MSP), ORF68 (gE) was amplified. A synonymous G > A mutation in codon 150 of ORF68 (SNP 116255) did not occur (Fig. 2b); this result confirmed that VZV in the trunk and head was not a VZV-MSP mutant virus.

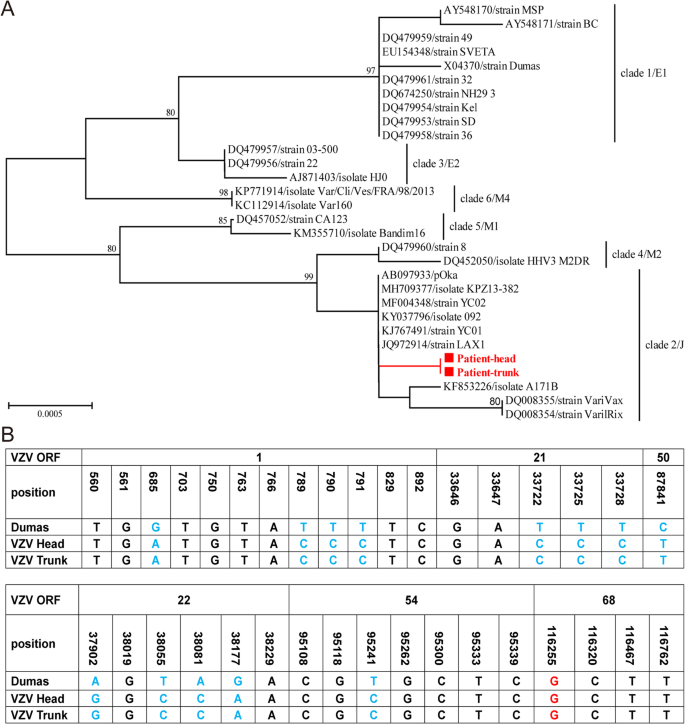

Fig. 2
figure2

a Concatenated phylogenetic analysis of VZV by the neighbour-joining method with 1000 replications with the Tamura model. Values on the branches indicate bootstrap values (cutoff value 70%). Squares indicate sequences obtained in this study. Scale bar indicates nucleotide substitutions per site. b Identification of SNP variations of VZV based on the partial ORFs 1, 21, 22, 50, 54 and 68

Discussion and conclusions

Varicella epidemics in adults are not yet well studied. Previous studies have confirmed middle-aged and old adults with simultaneous occurrence of varicella and herpes zoster [6,7,8,9]; however, these rare cases with varicella and herpes zoster have seldom been reported. Here, we also described a rare case of varicella and herpes zoster in late adulthood. For this case, we excluded the possibility of contact with varicella or herpes zoster patients because his family members were healthy and he did not have a recent history of travel at home and abroad. The vesicles on the neck, trunk and back without dermatomal distribution were indistinguishable from the varicella in childhood; however, the vesicles in the left ear had dermatomal distribution and PHN, so we diagnosed this patient as a rare case. A total of 110 young university students were diagnosed with varicella during February 2016–January 2017 in India [3]. A total of 22 adult foreigners from 8 countries experienced varicella during January 2012–December 2016 in central Tokyo, Japan [5]. A 54-year-old Japanese woman also suffered from varicella caused by VZV [4]; however, this woman had secondary VZV infection because she had a high titre of VZV IgG. One of the important limitations in this study is not detecting the titre of VZV IgG because an ELISA kit was not available. The titre of HSV-2 IgM was detected, but the result was negative. Hence, we could not determine whether this patient had a secondary infection or reactivation of VZV. This rare simultaneous infection of varicella and herpes zoster in this patient was confirmed to be caused by VZV infection; however, if further differentiating between disseminated VZV infection and varicella, understanding the pathogenesis of varicella and herpes zoster occurring at the same time will provide more useful information for the treatment of VZV infection. Patients with varicella zoster disease of the central nervous system (CNS) may present without accompanying zoster rash [12], so our understanding of the molecular triggers for latent VZV remains largely unknown.

The genotypic prevalence of VZV in China showed that VZV genotype J was the major prevalent strain from 2008 to 2012. In addition, VZV genotypes M1 and M2 also circulated in Guangdong [17]. VZV genotype J was also the dominant pathogen of VZV infection in Chinese children during August 2017–September 2017 in Suzhou, Jiangsu [18]. In this study, we determined the VZV as genotype J through phylogenetic analysis and confirmed it through SNP variations in 5 ORFs. A previous study confirmed that a rare VZV genotype E caused varicella in a Japanese woman [4]. Our study confirmed that VZV genotype J also caused varicella in adults and identified that VZV was not a VZV-MSP mutant virus. Further study needs to focus on the relationship between the clinical presentation and genogroups of VZV, which will provide a useful guide for clinical doctors diagnosing VZV infection. In conclusion, we first reported that infection with VZV genotype J causes a rare case of concurrent varicella and herpes zoster in an adult.

Availability of data and materials

All relevant data to this case are reported in the manuscript.

Abbreviations

VZV:

Varicella zoster virus

PHN:

Postherpetic neuralgia

SNPs:

Single nucleotide polymorphisms

ORFs:

Open reading frames

HIV:

Human immunodeficiency virus

HSV:

Herpes simplex virus

CMV:

Cytomegalovirus

References

  1. 1.

    Kennedy PGE, Gershon AA. Clinical features of varicella-zoster virus infection. Viruses. 2018;10(11):609.

    CAS  Article  Google Scholar

  2. 2.

    Kennedy PG. Varicella-zoster virus latency in human ganglia. Rev Med Virol. 2002;12(5):327–34.

    CAS  Article  Google Scholar

  3. 3.

    Meyers J, Logaraj M, Ramraj B, Narasimhan P, MacIntyre CR. Epidemic varicella zoster virus among university students, India. Emerg Infect Dis. 2018;24(2):366–9.

    Article  Google Scholar

  4. 4.

    Egawa G, Egawa K, Kabashima K. Case of chickenpox in which varicella zoster virus genotype E was identified for the first time in Japan. J Dermatol. 2020;47(1):54–7.

    CAS  Article  Google Scholar

  5. 5.

    Takaya S, Kutsuna S, Katanami Y, Yamamoto K, Takeshita N, Hayakawa K, et al. Varicella in adult foreigners at a referral gospital, Central Tokyo, Japan, 2012–2016. Emerg Infect Dis. 2020;26(1):114–7.

    Article  Google Scholar

  6. 6.

    Muller BK, Gomes WJ. Concurrent herpes zoster and varicella. Br Med J. 1965;1(5442):1127–8.

    CAS  Article  Google Scholar

  7. 7.

    Fetter F, Schnabel TG. Concurrent herpes zoster and chickenpox; report of a case. Arch Intern Med (Chic). 1949;83(5):502–4.

    CAS  Article  Google Scholar

  8. 8.

    Gelfand ML. Herpes zoster with a varicelliform eruption and parotitis in chronic leukemia. JAMA. 1951;145(8):560–1.

    CAS  Article  Google Scholar

  9. 9.

    Almeyda J. Simultaneous occurrence of herpes zoster and varicella: with a report of three cases. Postgrad Med J. 1942;18(203):175–7.

    CAS  Article  Google Scholar

  10. 10.

    Breuer J, Grose C, Norberg P, Tipples G, Schmid DS. A proposal for a common nomenclature for viral clades that form the species varicella-zoster virus: summary of VZV nomenclature meeting 2008, Barts and the London School of Medicine and dentistry, 24-25 July 2008. J Gen Virol. 2010;91(4):821–8.

    CAS  Article  Google Scholar

  11. 11.

    Carr MJ, McCormack GP, Crowley B. Genetic variation in clinical varicella-zoster virus isolates collected in Ireland between 2002 and 2003. J Med Virol. 2004;73(1):131–6.

    CAS  Article  Google Scholar

  12. 12.

    Pahud BA, Glaser CA, Dekker CL, Arvin AM, Schmid DS. Varicella zoster disease of the central nervous system: epidemiological, clinical, and laboratory features 10 years after the introduction of the varicella vaccine. J Infect Dis. 2011;203(3):316–23.

    Article  Google Scholar

  13. 13.

    Loparev VN, Gonzalez A, Deleon-Carnes M, Tipples G, Fickenscher H, Torfason EG, et al. Global identification of three major genotypes of varicella-zoster virus: longitudinal clustering and strategies for genotyping. J Virol. 2004;78(15):8349–58.

    CAS  Article  Google Scholar

  14. 14.

    Schmutzhard J, Merete Riedel H, Zweygberg Wirgart B, Grillner L. Detection of herpes simplex virus type 1, herpes simplex virus type 2 and varicella-zoster virus in skin lesions. Comparison of real-time PCR, nested PCR and virus isolation. J Clin Virol. 2004;29(2):120–6.

    CAS  Article  Google Scholar

  15. 15.

    Kaneko H, Higaki S, Fukuda M, Shimomura Y, Ishioka K, Fukushima E, et al. The quantitative detection of herpes simplex virus, varicella zoster virus, and cytomegalovirus DNAs in recipient corneal buttons. Cornea. 2010;29(12):1436–9.

    Article  Google Scholar

  16. 16.

    Kwak BO, Lee HJ, Kang HM, Oh CE, Choi EH. Genotype analysis of ORF 62 identifies varicella-zoster virus infections caused by a vaccine strain in children. Arch Virol. 2017;162(6):1725–30.

    CAS  Article  Google Scholar

  17. 17.

    Xu S, Chen M, Zheng H, Wang H, Chen M, Zhou J, et al. Nationwide distribution of varicella-zoster virus clades in China. BMC Infect Dis. 2016;16(1):542.

    Article  Google Scholar

  18. 18.

    Luan L, Shen X, Qiu J, Jing Y, Zhang J, Wang J, et al. Seroprevalence and molecular characteristics of varicella-zoster virus infection in Chinese children. BMC Infect Dis. 2019;19(1):643.

    Article  Google Scholar

Download references

Acknowledgements

We thank the patient for granting permission to publish this report.

Funding

This work was supported by National Natural Science Foundation of China (81702008), Natural Science Foundation of Hebei Province (H2018406024), Foundation for High-level Talents of Chengde Medical University (201702). The funding body played no role in the design of the study and collection, analysis, and interpretation of data and in writing the manuscript.

Author information

Affiliations

Authors

Contributions

GX carried out VZV detection, designed and wrote the manuscript. QW collected the clinical data. WG analyzed sequences and constructed the phylogenetic tree. DL and SP extracted nucleic acid from samples. JW supported help for VZV detection. HL designed, interpreted the clinical data and wrote the manuscript. The authors read and approved the final manuscript.

Corresponding authors

Correspondence to Guangcheng Xie or Houguang Liu.

Ethics declarations

Ethics approval and consent to participate

This work was approved by the ethics committees of Chengde Medical University.

Consent for publication

Written informed consent was obtained from the patient described in this report.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Additional file 1: Supplementary Fig. S1.

A Presentation of varicella on the neck, back and trunk before treatment. B Presentation of varicella on the neck, back and trunk after treatment.

Additional file 2: Supplementary Fig. S2. A

Detection of HSV-1, HSV-2 and VZV by nested PCR. B Detection of VZV by real-time PCR. C Detection of HSV-1, HSV-2, VZV and CMV by nested PCR. 1 and 2 indicate vesicular fluids from the head and trunk, respectively. D Amplification of the 6 ORFs (ORFs 1, 21, 22, 50, 54 and 68) of the VZV genome by PCR

Additional file 3: Supplementary Table S1.

Clinical characteristics of a rare case with varicella and herpes zoster in Xiamen, China
