Temporal trends and clonal diversity of penicillin non-susceptible pneumococci from meningitis cases from 1996 to 2012, in Salvador, Brazil

  • Milena Soares dos Santos1, 3,
  • Jailton Azevedo1,
  • Ana Paula de Oliveria Menezes1, 4,
  • Soraia Machado Cordeiro2,
  • Eliane Cunegundes Escobar1,
  • Josilene Borges Lima5,
  • Leila Carvalho Campos1,
  • Maria da Glória S. Carvalho7,
  • Mitermayer G. Reis1,
  • Albert I. Ko1, 6 and
  • Joice Neves Reis1, 2Email author
BMC Infectious Diseases201515:302

https://doi.org/10.1186/s12879-015-1049-y

Received: 13 January 2015

Accepted: 21 July 2015

Published: 30 July 2015

Abstract

Background

Hospital-based surveillance for pneumococcal meningitis has been conducted since January 1996 in the city of Salvador, Brazil. The purpose of this study was to describe the temporal evolution of Penicillin Non-Susceptible Streptococcus pneumoniae (PNSSP) in regards to serotype distributions and clonal diversity recovered from meningitis cases over 17 years.

Methods

Broth microdilution was used to identify pneumococcal isolates that were PNSSP (Minimum Inhibitory Concentration > 0.12 μg/ml). The annual incidence rate of meningitis cases was calculated. Serotyping was defined using multiplex polymerase chain reaction assays and quellung reaction. Genetic diversity of PNSSP isolates was assessed using both pulsed-field gel electrophoresis (PFGE) and Multilocus Sequence Typing (MLST) analyses.

Results

A total of 854cerebrospinal fluid (CSF) culture pneumococcal isolates were tested by broth microdilution method and serotyped. A total of 173 (20.3 %) were penicillin non-susceptible (PNSSP) (Minimum Inhibitory concentration ≥ 0.12 μg/ml). The annual incidence of meningitis cases declined from 1.65/100,000 population (1996) to 0.2/100,000 population in 2012 and the rate due to PNSSP declined 82 % over the 17-years of surveillance. PNSSP isolates were restricted to 13 serotypes, being the most common ones serotypes14 (45.1 %; 78/173), 23 F (19.1 %; 33/173), 6B (14.4 %; 25/173), 19 F (9.2 %; 16/173) and 19A (5.2 %; 9/173). Among the PNSSP isolates, 94 % had serotypes represented in the 10-valent conjugate vaccine (PCV10). The predominant serotype 14 clonal groups were identified as PFGE group A/multilocus sequence type 66 (ST66) [35.3 % (61/173)] and PFGE group GK/ST156 [4.6 % (8/173)], the latter one associated with high level resistance to penicillin and ceftriaxone.

Conclusions

Our results show sustained reductions in pneumococcal meningitis cases in the Metropolitan region of Salvador from 1996 to 2012. This might reflect a beneficial impact of conjugate vaccines. Continued surveillance and further studies need to be conducted to better understanding on PCV10 vaccine impact.

Keywords

Streptococcus pneumoniae Antibiotic resistanceGenotypeSurveillance

Background

Streptococcus pneumoniae (pneumococcus) often resides asymptomatically as part of human upper respiratory tract microbiota. It is an opportunistic pathogen that causes infections leading to otitis media, pneumonia, sepsis and meningitis [1]. The World Health Organization estimated that this agent caused476,000 deaths among children less than 5 years in 2008; most of these deaths occur in developing countries [2]. Furthermore, antibiotic resistance which has been shown to be associated with a limited spectrum of serotypes, commonly responsible for invasive disease, may have adverse impact on the epidemiology of pneumococcal disease [3]. Resistant pneumococci have been isolated in all continents. In several settings over 40 % of clinical isolates exhibit multidrug-resistance [4].

The emergence of S.pneumoniae with reduced susceptibility to penicillin has been observed in Brazil [5] and in many parts of the world. In addition, reduced susceptibility to extended-spectrum cephalosporins such as ceftriaxone has become a serious problem because it limits the available treatment options for pneumococcal invasive diseases [6]. Penicillin-non-susceptible isolates have been identified among 15 % of the pneumococcal meningitis isolates reported in Salvador, Bahia since 1996 [7]. These isolates are restricted to five serotypes (14, 19A, 19 F, 23 F and 6B). Serotype 14was the main penicillin-non-susceptible serotype within this area, as it was in the U.S. prior to PCV7 implementation [8], and has disseminated to widely separate geographic areas [3].

Widespread use of PCV7 dramatically affect the epidemiology of invasive pneumococcal disease (IPD) and carriage reservoir [9, 10]. The Ministry of Health incorporated PCV7in Brazil in 2001 for groups with special clinical conditions considered at high risk of IPD, as immunodeficiency, asplenia and severe cardio-pulmonary diseases, who received vaccination at special immunobiological reference center and at private clinics. In 2010, nationwide PCV10vaccination started for children less than 2 years of age through the national immunization program [11].

Pneumococcal clones have been shown to switch their capsular serotype by exchanging genetic material with other pneumococci; such changes could affect the ability of conjugate vaccines to control disease and could alter the relationship between antimicrobial resistance and serotype [1, 3]. Pneumococcal strain surveillance over time is essential to determine the relative importance of established and emerging antimicrobial-resistant clonal complexes [8]. So far, few publications have addressed the distribution of pneumococcal penicillin non-susceptible clonal complexes in Latin America [7]. Here we describe the temporal incidence, serotype distributions and genotype diversity of penicillin-nonsusceptible S.pneumoniae (PNSSP) strains recovered from meningitis cases from 1996 through 2012.

Methods

Study population and surveillance system

Active surveillance for pneumococcal meningitis was established at the Hospital Couto Maia, a state infectious disease hospital with 120 beds, which serves as the reference center for meningitis in the Salvador Metropolitan region (3,573,973 inhabitants). The state health department requires that all suspected meningitis cases from inside the metropolitan region are referred to that hospital, and more than 95 % of the meningitis reports from the region are reported from that site [12]. From January 1996 to December 2012, our study team reviewed the daily clinical laboratory records at the hospital to identify all patients for whom cerebrospinal fluid cultures yielded S.pneumoniae.

Clinical and epidemiological data collection

For all identified pneumococcal meningitis patients who were admitted to the surveillance hospital, a standardized data entry form was used to extract demographic and clinical information from their medical records. After their cases were identified, patients were interviewed to obtain information regarding potential risk factors for acquiring penicillin-non-susceptible pneumococci, such as acute illness preceding meningitis and comorbidities.

Laboratory procedures

Identification and susceptibility testing

The pneumococcal isolates identified in this hospital were sent to the Laboratory of Pathology and Molecular Biology at the Gonçalo Moniz Research Center CPqGM/FIOCRUZ for confirmation. The microbiological testing to confirm the S.pneumoniae isolates were performed by standard methods, including Gram stain, colony morphology on agar media with 5 % of sheep blood, optochin susceptibility (5 μg Oxoid disks) and bile solubility. The broth microdilution method was performed according to Clinical and Laboratory Standard Institute recommendations to determine the susceptibility of the isolates to penicillin, ofloxacin, cefotaxime, clindamycin, chloramphenicol, erythromycin, tetracycline, rifampicin, TMP-SXZ, and vancomycin (Sigma–Aldrich, Germany). Quality control was performed by testing the S. pneumoniae ATCC 49619 isolate. The current CLSI criteria were applied for susceptibility interpretation. According to the CLSI breakpoints for parenteral penicillin (meningitis), all isolates with MIC value ≥0.12 μg/mL were defined as PNSSP [13].

Determination of capsular serotypes

From 1996 to 2005, pneumococcal strains were serotyped by the Quellung reaction with capsular type-specific anti-pneumococcal sera at the Centers for Disease Control and Prevention (CDC). After 2006, capsular serogroups/serotypes were deduced using multiplex-PCR as described elsewhere [14, 15]. All isolates identified as serogroup 6 in the multiplex-PCR were subjected to wciN6C–specific PCR, as previously described, for the identification of potential serotype 6C and 6D isolates [16]. Isolates with negative or equivocal multiplex PCR results were subjected to Quellung reaction testing for capsular type definition at the CDC.

Molecular typing

Briefly, total DNA was extracted and digested with SmaI, and the DNA fragments were resolved by PFGE as described previously [17]. The Gel Compar software package (version 4.0; Applied Maths, Bionumerics) was used to compare the band patterns. PFGE patterns were clustered by the unweighted-pair group method using average linkages (UPGMA), and a dendrogram was generated from a similarity matrix calculated using the Dice similarity coefficient, with an optimization of 1.0 % and a tolerance of 1.5 %. PFGE patterns were defined as isolates with a similarity of 80 % or higher in the dendrogram.

MLST was performed as previously described [18] on representative isolates according to the following criteria: (i) a minimum of two isolates from each PFGE pattern containing 10 or more isolates were selected, (ii) a minimum of one isolate from each PFGE pattern containing two to nine isolates was selected and, (iii) for a randomly selected group of 23 isolates with unrelated PFGE patterns.

The sequence types (STs) were obtained with reference at the MLST database (http://pubmlst.org/spneumoniae/) and the alternatives primers recommended by CDC (http://www.cdc.gov/streplab/alt-MLST-primers.html). New allelic profiles have been submitted to the MLST database for ST assignment.

Clonal Complex (CC) are groups of STs which share a recent common ancestor. goeBURST was used to estimate the relationships among the different STs. goeBURST isa java implementation of the eBURST algorithm rules proposed by Feil et al, 2004 [19] that uses a graphic matrix approach to ensure an optimal solution for the placement of links between STs.Version 1.2.1of the software was used (http://goeburst.phyloviz.net).

Data analysis

A clinical and epidemiological database was created and analyzed with Epi-Info Version 3.5.1 (CDC, Atlanta, GA). We calculated annual incidence rates (cases per 100,000 population) by dividing the number of cases among residents of the Metropolitan Region of Salvador (MRS) by the estimated population, using 2000 census bureau (3,021,572 population) to calculate rates for 1996 through 2007; for 2008 through 2012, we used the 2010 census estimate of the population (3,573,973 population) [20]. Fisher’s exact or chi-square tests were used to compare differences between proportions for dichotomous variables, and odds ratio (OR) and 95 % confidence interval (CIs) were calculated as measure of association. The chi-square test for linear trends was applied to compare the fluctuations in incidence rates per year and for comparison of PNSSP proportions. Statistical significance was defined as p < 0.05. Univariate and multivariate logistic regression models were constructed to identify risk factors for invasive diseases caused by PNSSP. Multivariate analysis was calculated using unconditional logistic regression. To be included in this model, a variable was considered when presented a p value less than 0.05 in univariate analysis.

Ethics statement

The study was approved by the Institutional Review Board of the Oswaldo Cruz Foundation (FIOCRUZ), Brazilian Ministry of Health and Hospital Couto Maia. Patients were enrolled in the study according to informed consent procedures. All patients or legal guardian gave written informed consent prior to enrolling in the study.

Results

Surveillance for penicillin nonsusceptible pneumococcal meningitis

A total of 917 patients with S. pneumoniae meningitis were consecutively identified at the surveillance hospital during 17 years of laboratory-based active surveillance. Pneumococcal isolates were available for characterization for 854/917 (93.1 %) cases. Considering that 489 patients resided within the Metropolitan Salvador, the annual incidence of pneumococcal meningitis declined from 1.65/100,000 population (1996) to 0.2/100,000 population in 2012. We identified 173/854 (20.3 %) isolates as PNSSP. On the basis of 101(58 %) cases that occurred in patients who resided in MRS and had isolates with penicillin MIC ≥ 0.12 μg/mL, the annual incidence for PNSSP was estimated to be 0.3 case per100,000 population (1996) declined by 82 % in 17-years of surveillance, ranging from 0.3 to 0.06 cases per 100,000 population [p < 0.001] (Fig. 1).
Fig. 1

Incidence of pneumococcal meningitis cases in the metropolitan region os Salvador from 1996 to 2012. Abbreviations: Total cases (TOTAL), pneumococcal non-susceptible to penicillin (PNSSP)

Patient characteristics

Of the 844 patients for whom demographic information was available, 317 (37.6 %) were children aged < 5 years and 542 (64.2 %) were male. Of the 173 cases that were penicillin non-susceptible, 61.1 % occurred in children less than 5 years of age (p < 0.05) (Table 1) and 49.1 % occurred in children aged < 2 years. A clinical presentation of meningitis preceded by pneumonia was associated with isolates non-susceptible to penicillin (p = 0.03) in univariate analysis (Table 1). The overall case fatality ratio was 30.3 %. After adjusting in multivariate analyses, risk factor for having meningitis due to PNSSP was age less than five years old (OR, 4.2; 95 % CI, 2.1-8.4).
Table 1

Characteristics of patients with pneumococcal meningitis, stratified by penicillin susceptibility

Characteristics

Penicillin non-susceptible(n = 173)

Penicillin Susceptible(n = 681)

OR 95 % CI

p value

N° of cases with information

N° (%) cases

N° of cases with information

N° (%) cases

Male

170

118 (69.4 %)

671

424 (63.2 %)

1.32 [0.92–1.90]

0.13

Age

162



651



<5 years



99 (61.1 %)



218 (33.5 %)

4.2 [2.1–8.4]2

<0.05

≥5 years



63 (38.9 %)



Neurological condition at admission1

104

81 (77.9 %)

356

289 (81.2 %)

0.82 [0.47–1.40]

0.45

Acute illness preceding meningitis

61



177



Pneumonia



7 (11.5 %)



7 (3.9 %)

3.15 [1.05–9.37]

0.03

AOM



9 (14.8 %)



31 (17.5 %)

0.81 [0.36–1.82]

0.61

URTI



13 (21.3 %)



38 (21.5 %)

0.99 [0.48–2.01]

0.97

ICU admission

86

38 (44.2 %)

282

137 (48.6 %)

0.84 [0.50–1.36]

0.47

>10 days of hospitalization

157

94 (59.9 %)

643

413 (64.2 %)

0.83 [0.58–1.18]

0.30

Death

160

64 (40 %)

645

195 (30.2 %)

1.54 [1.07–2.20]

0.01

Note. Data are no. (%) of patients for whom information were obtained, ICU intensive care unit, AOM Acute Otitis Media, URTI Upper Respiratory Tract Infection

1Coma/Altered mental status. 2 Adjusted odds ratio

Antibiotic susceptibility and serotype distribution

All 854 isolates were submitted for antibiotic susceptibility testing and serotyping. All isolates were susceptible to vancomycin, and ≥98 % of isolates were susceptible to ofloxacin, cefotaxime, erythromycin, clindamycin, chloramphenicol, and rifampicin. Overall, 20.3 % (n = 173) of isolates were PNSSP, 48 % (n = 410) to TMP-SXZ, and 27 % (n = 230) to tetracycline. The PNSSP isolates were commonly non-susceptible to TMP-SXZ (138/173, 79.8 %) and tetracycline (27/173, 15.6 %) and less commonly non-susceptible to cefotaxime (7/173, 4.0 %), ofloxacin (3/173, 1.7 %) and erythromycin (1/173, 0.6 %). Resistance to ≥ 3 antibiotics was found in four different serotypes (14, 6B, 23 F and 19 F) (Table 2). Only ten isolates (5.8 %, 10/173) had a high level of resistance to penicillin (three isolates had MIC = 2 μg/mL and seven isolates had MIC ≥ 4 μg/mL). Six of these penicillin resistant strains were also resistant to cefotaxime (MIC ≥ 1 μg/mL). The prevalence of PNSSP isolates increased from 18.8 % in 1996 to 33.3 % in 2012 (chi-square for linear trend = 14.5; p < 0.001) (Fig. 2).
Table 2

Characteristics of penicillin non-susceptible pneumococcal isolates from meningitis cases identified from 1996 through 2012

Serotype

Antibiotic resistance

N° of isolates

PFGE profile

ST

VT

14

TMP-SXZ, TET

60

A

66



CEF

7

GK

156

6B

TMP-SXZ, CLI, TET

8

AV

751



ERI, RIF

3

N

4980

19 F

TMP-SXZ, TET

2

DM

177



TMP-SXZ

1

GK

156

23 F

TMP-SXZ, TET, CLI

10

GA

338



TET, CLO

5

BZ

8080

9 N

TMP-SXZ

1

GA

737

7C

TMP-SXZ

1

A

66



19A

TMP-SXZ

1

DP

1118



1

N

4926



1

CI

8098



1

BQ

2408

NVT

6C

TMP-SXZ

1

FV

2777

23B

TMP-SXZ

1

AK

3536



1

FP

8089

13

TMP-SXZ

1

GD

8094

Note: VT –PCV10 Vaccine Type; NVT –Non PCV10 Vaccine Type; cefotaxime (CEF), clindamycin (CLI), chloramphenicol (CLO), erythromycin (ERI), tetracycline (TET), rifampicin (RIF), trimethoprim-sulfamethoxazole (TMP-SXZ)

Fig. 2

Proportion of penicillin susceptible (Pen_S) and non-susceptible (PNSSP) pneumococcal isolates from 1996 through 2012

Fifty six capsular serotypes were found among the pneumococcal isolates identified during surveillance. Prevalent serotypes included 14 (12 %), 3 (7.7 %), 6B (7.4 %), 19 F (7.3 %), 23 F (6.6 %), 18C (5.3 %), 4 (4.4 %), 6A (3.4 %), 10A (2.9 %), and 8 (2.4 %). Together, these 10 serotypes represented 512 (60 %) of the isolates. The overall percentage of capsular types included in the PCV10 vaccine accounted for 50.5 %. A total of 13 different serotypes were identified among the PNSSP isolates. The most frequent were 14 (45.1 %; 78/173), 23 F (19.1 %; 33/173), 6B (14.4 %; 25/173), 19 F (9.3 %; 16/173) and 19A (5.2 %; 9/173) (Fig. 3a). With the exception of 19 F, all of these serotypes were significantly associated with penicillin non-susceptibility: 14 (OR, 14.14; 95 % CI, 9.05–22.09), 23 F (OR, 5.49; 95 % CI, 3.20–9.32), 6B (OR, 2.49; 95 % CI, 1.47–4.20) and 19A (OR, 4.07; 95 % CI, 1.60-10.42). Only three serotypes identified among the PNSSP isolates (19A, 12 F and 13) are not represented in the PCV10. The proportions of PCV10 serotypes among the PNSSP isolates were 94 % (163/173). PCV10 projected coverage was 47.9 % (78/163) and 55.2 % (90/163) of PNSSP isolated from patients <2 and < 5 years of age, respectively.

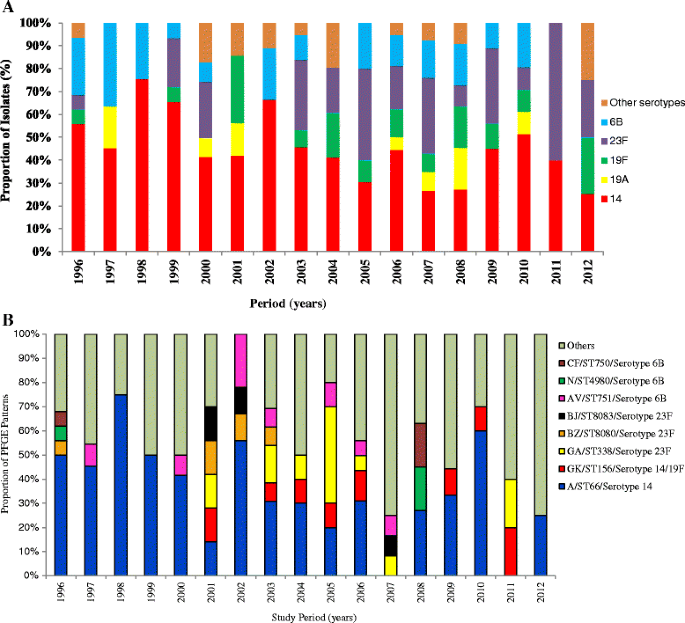

Fig. 3

Distribution of most frequent PNSSP serotypes (a) and clones (b) from meningitis cases identified from1996 through2012. Note (Fig. 3b): Others, includes all PFGE patters with 2 or less isolates

Molecular typing

A total of 173 PNSSP isolates were analyzed by PFGE and 138were analyzed by MLST. We identified 19 PFGE groups that ranged in isolate number from 2 to 61. A total of 16.8 % (28/173) of the isolates had a single electrophoretic profile. The distribution of the major PFGE clonal groups (composed of 3 or more isolates) is presented in Fig. 3b. Among these, clonal group A was the largest group with 35.3 % (61/173) of the isolates. This clonal group was comprised primarily of serotype 14 isolates and classified as ST66; the second most common group was PFGE type GK /ST 156 with eight isolates, which were mainly serotype 14 (7) and 19 F(1) and resistant to penicillin (MIC range from 2 to 8 μg/mL) and cefotaxime (MIC range 1 to 4 μg/mL). Serotype 23 F also was commonly associated with resistance and was compounded by PFGE type GA/ST 338(10 isolates) followed by PFGE type BZ/ST 8080 (5 isolates) and PFGE type BJ/ST 8083 (3 isolates). Serotype 6Bclustered in three mainly PFGE/MLST types, being PFGE type AV/ST 751 (8 isolates), PFGE type CF/ST4980 (4 isolates) and PFGE type N/ST750 (3 isolates) (Table 1). Additionally, no new genotype was identified within a 2-year period after PCV-10 introduction into the childhood immunization program, at least among PNSSP from meningitis cases.

The diversity of the 138 PNSSP isolates and the 8 PMEN international clones was visualized with the goeBURST analysis (Fig. 4). As shown in Fig. 4, the STs found in the population of PNSSP isolates were highly diverse and grouped into 24 clusters. The most frequent sequence type among the PNSSP isolates was ST66 serotype 14. This clonal group was also persistent over the 17 years of surveillance.
Fig. 4

Clonal groups of most frequent PNSSP from meningitis cases. The PMEN- Double Locus Variant clonal groupsofthe138meningitis cases PNSSP isolates and clones (as characterized by MLST). Fifty ST’s were identified and classified into 24 groups. The size of the nodes was proportional to the number of isolates presenting that ST in the database. The ST nodes included: Light green - Group founder; Light blue- Common node; Black - Link drawn without recourse to tiebreak rules; Blue - Link drawn using tiebreak rule 1 and Gray - Link drawn for higher levels (DLV with darker gray or TLV with lighter gray)

Discussion

Since the identification of the first penicillin non-susceptible S. pneumoniae case in Brazil in 1988 [21], surveys have reported that up to 20 % of pneumococcal meningitis isolates with decreased penicillin susceptibility [22, 23]. Our data indicate that the proportion of PNSSP in meningitis cases has been fairly stable, with an average of 20.3 % of pneumococcal isolates being non-susceptible to penicillin. In contrast, the pneumococcal meningitis epidemiology continuously changed during the past 17 years in Salvador Metropolitan area. One of the most important changes was the sustained decrease in the incidence rate observed from 1996 to 2012.

In Brazilian nationwide surveillance from 1993 to 2004, an increase of penicillin non-susceptibility was observed (10 % to 28 %), with 6 % of the isolates displaying a high level of resistance [24]. According to Brandileone MCC et al (2006), there are geographic differences between PNSSP isolates in this country. Between 2000 and 2005, in the northeastern region, the proportion of PNSSP isolates was 20 %. The southern and southeastern regions had a higher percentage of PNSSP isolates (28 %) and the lowest rate in the north region was 8 %[24].

The penicillin resistance rate in Brazil was lower than other Latin America countries, including Colombia, Bolivia, Mexico and Venezuela, which reported rates above 30 % [25]. In contrast, Japan have reported even higher proportion of PNSSP (76.6 %) [26].

Additionally, we observed that a high proportion of isolates were non-susceptible to antibiotics commonly used in outpatient settings for acute respiratory infection treatments in Brazil. For example, the proportion of TMP-SXZ non-susceptible isolates reached 72 % in 2006 and keep a rate around 50 % until 2012. In Asian countries invasive pneumococcal isolates remained highly resistant to macrolides, tetracycline, and TMP-SXZ each year [27]. In this study setting, we found a lower proportion (0.6 %) of isolates resistant to erythromycin in comparison with developed countries [28, 29] other Latin American countries [30] and wealthier regions within Brazil [31]. This may be due to the relatively high cost of macrolides, which limits its use in clinical practice in low income population settings.

Serotype distribution information is essential in evaluating the potential benefits of pneumococcal conjugate vaccines, particularly in developing countries where the cost of newly available polysaccharide capsule-protein conjugate vaccines is high relative to the available healthcare resources. Our findings regarding serotype distributions confirm those from national surveys that indicated that a limited spectrum of serotypes were responsible for the majority of meningitis cases due to PNSSP isolates in Brazil. In general, serotypes 14, 23 F, 6B, 19 F and 19A were the most frequent among the PNSSP isolates observed in our study. These results are similar to those reported in other regions in Brazil [32, 33] and in other Latin American countries [6]. Serotype 14 was the most common serotype, which accounted for 44.8 % of the total PNSSP isolates. Additionally, serotypes 23 F, 6B and 19 F are important reservoirs of PNSSP in this setting.

In 2010, PCV10 was introduced country wide for children less than 2 years of age in as part of Brazil’s national immunization program. Recently, the effectiveness of PCV10 in Brazil was evaluating by a case-control study, which demonstrated that PCV10 prevents invasive disease caused by vaccine serotypes, in agreement with our finds in this study [34]. However, evaluation of the serotype distribution showed that serotypes 14, 6B, 23 F, 18C and 19 F remain among the most frequent serotypes causing invasive disease two years after vaccine introduction. As only two years post-vaccination was evaluated (and considering the lower vaccine uptake observed in some places), there may not have been sufficient time to observe the protection effect in all population.

The largest represented clonal group (PFGE pattern A) comprised 35 % of the penicillin non-susceptible isolates. This group mainly included serotype 14 (ST66), which is a single locus variant of the ST67, Tennessee14-18clone. ST66 is predominant throughout Brazil and is an important factor for maintaining the penicillin resistance rate [33]. Another important clonal group of serotype 14 is ST156, which emerged in 2001 and had an elevated MIC to penicillin and cefotaxime, this clonal group is a serotype switch variant of clone Spain 9V - 3. ST156 has been associated with a broad variety of serotypes including 6B, 9A, 11A, 14, 15B/15C, 19A, 19 F, 23 F, and 24 F, suggesting a high propensity for recombination events [35]. This clonal complex associated with serotype 14 has been encountered in multiple countries including Norway, France, Spain, and the United States [1, 3, 8]. It is also very important to point out the circulation of Colombia23F-26 clone, ST338. This clonal group has also been reported in several countries [30, 36, 37]. Apart from these three clonal groups, the specific clonal structure of the PNSSP isolates was dominated by a few other clones (Fig. 4), highlighting 24 new STs. Such a high genetic diversity seems to be a characteristic of PNSSP clonal complexes in general [1].

Serotype and genotype prevalence fluctuations can occur naturally in pneumococcal populations in the absence of pressure exerted by conjugate vaccines. In the United States, clonal expansion (the increase in the number of previously rare clones that express non-vaccine serotypes) has been documented since the introduction of the heptavalent conjugate vaccine (PCV-7). Non-vaccine serotypes were increasingly a cause of disease in the United States in the post-PCV7 era, most frequently serotype 19A, which is associated with antimicrobial resistance [37]. In Salvador, similar to the findings of others, a relatively small number of serotypes accounted for the majority of the PNSSP isolates, which resulted in an estimated PCV10 coverage of 94 % among those infected with PNSSP.

One of the main limitations of this study is the fact that all S. pneumoniae were isolated from meningitis cases. Information regarding other IPD manifestations in our region is often limited or unavailable. Although all of the pneumococcal isolates included in this study originated from only one hospital, Hospital Couto Maia is the state reference hospital in the city of Salvador, with about 95 % of the meningitis reports from the region originating from that site [12].

Conclusions

Our results show sustained reductions in pneumococcal meningitis cases in the Metropolitan region of Salvador from 1996 to 2012, with a decrease of 82 % in the incidence of cases due to penicillin nonsusceptible pneumococci. In this setting, 94 % of PNSSP isolates were serotypes represented in the 10-valent pneumococcal conjugate vaccine. Although nationwide PCV10 vaccination just started in 2010, PCV7 has been available in private clinics and CRIEs nationwide since 2001, which may have contributed to the observed reductions on the incidence of pneumococcal meningitis cases. Furthermore no new serotype or genotype was observed after PCV10 implementation. However, the circulation of non-vaccine PNSSP types as well as capsule switching may compromise the effect of the conjugate vaccine in the future and highlights the need for the constant surveillance of circulating PNSSP isolates.

Abbreviations

PCV10:

Pneumococcal conjugate vaccine ten valent

PCV7:

Pneumococcal conjugate vaccine seven valent

PCV13:

Pneumococcal conjugate vaccine thirteenvalent

PNSSP:

Penicillin non-susceptibleStreptococcus pneumoniae

MIC:

Minimal Inhibitory Concentration

PFGE:

Pulsed-Field Gel Electrophoresis

MLST:

Multi Locus Sequence Typing

CSF:

Cerebrospinal Fluid

CRIE:

Special Immunobiological Reference Center

Declarations

Acknowledgments

We thank the study patients and their families and the Hospital Couto Maia clinical, laboratory and administrative staff. We especially thank Neide Oliveira, Marcelo Teles Bastos Ribeiro and Ronaldo José Ribeiro Santos for their immensurable laboratory surveillance help, Éder Silva and Silvana Paz for PCR and sequencing support and Tainara Q. Oliveira and Renan Cardoso Nery Santos for their participation in data collection and processing.

Funding source

This work was supported by grants from the Brazilian National Research Council (482755/2010-5),the Bahia State Foundation for the support of research (PP-SUS0001/2009), Strategic program to support health research – PAPES (#407551/2012-3),and the National Institute of Health (R01 TW007303,D43 TW00919).

Authors’ Affiliations

(1)
Centro de Pesquisas Gonçalo Moniz, Fundação Oswaldo Cruz/ Ministério da Saúde
(2)
Departamento de Análises Clínicas e Toxicológicas, Faculdade de Farmácia, Universidade Federal da Bahia
(3)
Instituto Multidisciplinar em Saúde, Campus Anísio Teixeira, Universidade Federal da Bahia
(4)
Universidade Estadual do Sudoeste da Bahia
(5)
Instituto de Ciências da Saúde, Universidade Federal da Bahia
(6)
Department of Epidemiology of Microbial Diseases, Yale School of Public Health
(7)
Centers for Disease Control and Prevention, Streptococcus Laboratory

References

  1. Jefferies JM, Smith AJ, Edwards GF, McMenamin J, Mitchell TJ, Clarke SC. Temporal analysis of invasive pneumococcal clones from Scotland illustrates fluctuations in diversity of serotype and genotype in the absence of pneumococcal conjugate vaccine. J Clin Microbiol. 2010;48(1):87–96. doi:10.1128/JCM.01485-09.View ArticlePubMedGoogle Scholar
  2. World Health Organization (WHO). Pneumococcal vaccines, 2012. [http://www.who.int/wer/2012/wer8714/en] Accessed January 5, 2015
  3. Hackel M, Lascols C, Bouchillon S, Hilton B, Morgenstern D, Purdy J. Serotype prevalence and antibiotic resistance in Streptococcus pneumoniae clinical isolates among global populations. Vaccine. 2013;31(42):4881–7. doi:10.1016/j.vaccine.2013.07.054.View ArticlePubMedGoogle Scholar
  4. Reinert RR. The antimicrobial resistance profile of Streptococcus pneumoniae. Clin Microbiol Infect. 2009;15 Suppl 3:7–11. doi:10.1111/j.1469-0691.2009.02724.x.View ArticlePubMedGoogle Scholar
  5. Alvares JR, Mantese OC, Paula A, Wolkers PC, Almeida VV, Almeida SC, et al. Prevalence of pneumococcal serotypes and resistance to antimicrobial agents in patients with meningitis: ten-year analysis. Braz J Infect Dis. 2011;15(1):22–7.View ArticlePubMedGoogle Scholar
  6. Castaneda E, Agudelo CI, Regueira M, Corso A, Brandileone MC, Brandao AP, et al. Laboratory-based surveillance of Streptococcus pneumoniae invasive disease in children in 10 Latin American countries: a SIREVA II project, 2000–2005. Pediatr Infect Dis J. 2009;28(9):e265–70. doi:10.1097/INF.0b013e3181a74b22.View ArticlePubMedGoogle Scholar
  7. Ko AI, Reis JN, Coppola SJ, Gouveia EL, Cordeiro SM, Lobo TS, et al. Clonally related penicillin-nonsusceptible Streptococcus pneumoniae serotype 14 from cases of meningitis in Salvador, Brazil. Clin Infect Dis. 2000;30(1):78–86.View ArticlePubMedGoogle Scholar
  8. Beall B, McEllistrem MC, Gertz Jr RE, Wedel S, Boxrud DJ, Gonzalez AL, et al. Pre- and post-vaccination clonal compositions of invasive pneumococcal serotypes for isolates collected in the United States in 1999, 2001, and 2002. J Clin Microbiol. 2006;44(3):999–1017.View ArticlePubMedPubMed CentralGoogle Scholar
  9. Pilishvili T, Lexau C, Farley MM, Hadler J, Harrison LH, Bennett NM, et al. Sustained reductions in invasive pneumococcal disease in the era of conjugate vaccine. J Infect Dis. 2010;201:32–41. doi:10.1086/648593.View ArticlePubMedGoogle Scholar
  10. Isaacman DJ, Mcintosh ED, Reinert RR. Burden of invasive pneumococcal disease and serotype distribution among Streptococcus pneumoniae isolates in young children in Europe: impact of the 7-valent pneumococcal conjugate vaccine and considerations for future conjugate vaccines. Int J Infect Dis. 2010;3:e197–209. doi:10.1016/j.ijid.2009.05.010.View ArticleGoogle Scholar
  11. Ministério da Saúde Brasil: Proposta para introdução da vacina pneumocócica 10-valente (conjugada) no calendário básico de vacinação da criança; 2010. Available at:http://www.sgc.goias.gov.br/upload/links/arq_723_infotec.pdf. Accessed January 5, 2015.
  12. Secretaria de Saúde do Estado da Bahia (SESAB). Boletins Epidemiológicos. http://www.suvisa.ba.gov.br/vigilancia_epidemiologica/consulta_boletim_epidemiologico/. Acessed January 5, 2015.
  13. Clinical Laboratory Standards Institute (CLSI). Performance Standards for Antimicrobial Susceptibility Testing. In: Seventeenth Informational Suplement. CLSI document M100-S21, v. 31, n. 1. Wayne, PA: NCCLS; 2011.Google Scholar
  14. da Gloria Carvalho M, Pimenta FC, Jackson D, Roundtree A, Ahmad Y, Millar EV, et al. Revisiting pneumococcal carriage by use of broth enrichment and PCR techniques for enhanced detection of carriage and serotypes. J Clin Microbiol. 2010;48(5):1611–8. doi:10.1128/JCM.02243-09.View ArticlePubMedGoogle Scholar
  15. Centers for Disease Control Prevention(CDC). PCR deduction of pneumococcal serotypes (2014) [http://www.cdc.gov/streplab/pcr.html]
  16. Carvalho Mda G, Pimenta FC, Gertz Jr RE, Joshi HH, Trujillo AA, Keys LE, et al. PCR-based quantitation and clonal diversity of the current prevalent invasive serogroup 6 pneumococcal serotype, 6C, in the United States in 1999 and 2006 to 2007. J Clin Microbiol. 2009;47(3):554–9. doi:10.1128/JCM.01919-08.View ArticlePubMedGoogle Scholar
  17. McEllistrem MC, Stout JE, Harrison LH. Simplified protocol for pulsed-field gel electrophoresis analysis of Streptococcus pneumoniae. J Clin Microbiol. 2000;38:351–3.PubMedPubMed CentralGoogle Scholar
  18. Enright MC, Spratt BG. A multilocus sequence typing scheme for Streptococcus pneumoniae: identification of clones associated with serious invasive disease. Microbiology. 1998;144(Pt 11):3049–60.View ArticlePubMedGoogle Scholar
  19. Feil EJ, Li BC, Aanensen DM, Hanage WP, Spratt BG. eBURST: inferring patterns of evolutionary descent among clusters of related bacterial genotypes from multilocus sequence typing data. J Bacteriol. 2004;186(5):1518–30.View ArticlePubMedPubMed CentralGoogle Scholar
  20. Instituto Brasileiro de Geografia e Estatística (IBGE). Resultado do censo populacional de Salvador e cidades na área metropolitana, Bahia. [http://www.ibge.gov.br/home/]. Accessed January 5, 2015.
  21. de Sousa Marques HH, Yamamoto M, Sakane PT, Caiaffa-Filho HH, Figueiredo Mendes CM. Relatively penicillin-resistant pneumococcal meningitis in a Brazilian infant. Pediatr Infect Dis J. 1988;7(6):433–4.View ArticlePubMedGoogle Scholar
  22. Reis JN, Cordeiro SM, Coppola SJ, Salgado K, Carvalho MG, Teixeira LM, et al. Population-based survey of antimicrobial susceptibility and serotype distribution of Streptococcus pneumoniae from meningitis patients in Salvador, Brazil. J Clin Microbiol. 2002;40(1):275–7.View ArticlePubMedPubMed CentralGoogle Scholar
  23. De OMenezes AP, Campos LC, Dos Santos MS, Azevedo J, Dos Santos RC, Carvalho MDA G, et al. Serotype distribution and antimicrobial resistance of Streptococcus pneumoniae prior to introduction of the 10-valent pneumococcal conjugate vaccine in Brazil, 2000-2007. Vaccine. 2011;29(6):1139–44. doi:10.1016/j.vaccine.2010.12.021.View ArticleGoogle Scholar
  24. Brandileone MC, Casagrande ST, Guerra ML, Zanella RC, Andrade AL, Di Fabio JL. Increase in numbers of beta-lactam-resistant invasive Streptococcus pneumoniae in Brazil and the impact of conjugate vaccine coverage. J Med Microbiol. 2006;55(Pt 5):567–74.View ArticlePubMedGoogle Scholar
  25. Pan American Health OrganizationSistema de Redes de Vigilância dos agentes Responsáveis por pneumonias e Meningites Bacterianas. Available at [http://www.paho.org/bra/index.php?option=com_content&view=article&id=2398:informe-regional-rede-sireva-ii-2010&Itemid=777]. Accessed 2014
  26. Imai S, Ito Y, Ishida T, Hirai T, Ito I, Maekawa K, et al. High prevalence of multidrug-resistant Pneumococcal molecular epidemiology network clones among Streptococcus pneumoniae isolates from adult patients with community-acquired pneumonia in Japan. Clin Microbiol Infect. 2009;15(11):1039. doi:10.1111/j.1469-0691.2009.02935.x. -1045, 2009.View ArticlePubMedGoogle Scholar
  27. Zhao C, Zhang F, Chu Y, Liu Y, Cao B, Chen M, et al. Phenotypic and genotypic characteristic of invasive pneumococcal isolates from both children and adult patients from a multicenter surveillance in China 2005-2011. PLoS One. 2013;8(12), e82361. doi:10.1371/journal.pone.0082361.View ArticlePubMedPubMed CentralGoogle Scholar
  28. Liu Z, Nachamkin I, Edelstein PH, Lautenbach E, Metlay JP. Serotype emergence and genotype distribution among macrolide-resistant invasive Streptococcus pneumoniae isolates in the postconjugate vaccine (PCV-7) era. Antimicrob Agents Chemother. 2012;56(2):743–50. doi:10.1128/AAC.05122-11.View ArticlePubMedPubMed CentralGoogle Scholar
  29. Ardanuy C, Tubau F, Pallares R, Calatayud L, Dominguez MA, Rolo D, et al. Epidemiology of invasive pneumococcal disease among adult patients in Barcelona before and after pediatric 7-valent pneumococcal conjugate vaccine introduction, 1997-2007. Clin Infect Dis. 2009;48(1):57–64. doi:10.1086/594125.View ArticlePubMedGoogle Scholar
  30. Parra EL, Ramos V, Sanabria O, Moreno J. Serotype and genotype distribution among invasive Streptococcus pneumoniae isolates in Colombia, 2005-2010. PLoS One. 2014;9(1), e84993. doi:10.1371/journal.pone.0084993. eCollection 2014.View ArticlePubMedPubMed CentralGoogle Scholar
  31. Andrade AL, Oliveira R, Vieira MA, Minamisava R, Pessoa Jr V, Brandileone MC, et al. Population-based surveillance for invasive pneumococcal disease and pneumonia in infants and young children in Goiania, Brazil. Vaccine. 2012;30(10):1901–9. doi:10.1016/j.vaccine.2011.12.012.View ArticlePubMedGoogle Scholar
  32. Yoshioka CR, Martinez MB, Brandileone MC, Ragazzi SB, Guerra ML, Santos SR, et al. Analysis of invasive pneumonia-causing strains of Streptococcus pneumoniae: serotypes and antimicrobial susceptibility. J Pediatr (Rio J). 2011;87(1):70–5. doi:10.2223/JPED.2063.Google Scholar
  33. Brandileone MC, Di Fabio JL, Vieira VS, Zanella RC, Casagrande ST, Pignatari AC, et al. Geographic distribution of penicillin resistance of Streptococcus pneumoniae in Brazil: genetic relatedness. Microb Drug Resist. 1998;4(3):209–17.View ArticlePubMedGoogle Scholar
  34. Domingues CM, Verani JR, Montenegro Renoiner E, De Cunto Brandileone MC, Flannery B, et al. Effectiveness of tem-valent pneumococcal conjugate vaccine against invasive pneumococcal disease in Brazil: a matched case-control study. Lancet Respir Med. 2014;2:464–47.View ArticlePubMedGoogle Scholar
  35. Sjostrom K, Blomberg C, Fernebro J, Dagerhamn J, Morfeldt E, Barocchi MA, et al. Clonal success of piliated penicillin nonsusceptible pneumococci. Proc Natl Acad Sci U S A. 2007;104(31):12907–12.View ArticlePubMedPubMed CentralGoogle Scholar
  36. Beall W, Gertz RE, Hulkower RL, Whitney CG, Moore MR, Brueggemann AB. Shifting genetic structure of invasive serotype 19A pneumococci in the United States. J Infect Dis. 2011;203(10):1360–8. doi:10.1093/infdis/jir052.View ArticlePubMedPubMed CentralGoogle Scholar
  37. Pai R, Moore MR, Pilishvili T, Gertz RE, Whitney CG, Beall B. Postvaccine genetic structure of Streptococcus pneumoniae serotype 19A from children in the United States. J Infect Dis. 2005;192(11):1988–95.View ArticlePubMedGoogle Scholar
